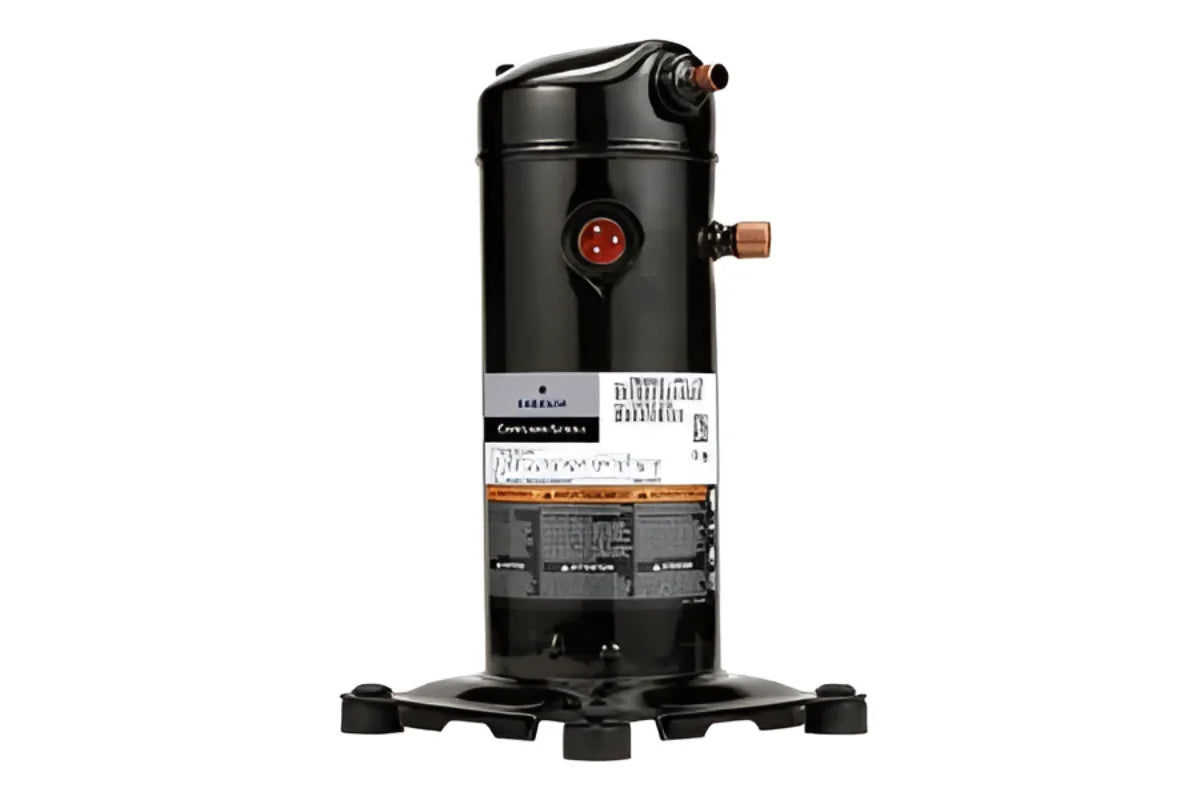

Copeland ZB114K5E-TFD-960 Scroll Compressor

Product Description

The Copeland ZB114K5E-TFD-960 is a scroll compressor suitable for high and medium temperature refrigeration. It operates at four hundred sixty volts with three-phase power.

• Compatible with multiple refrigerants.
• Cooling capacity of 114000 BTU.
• Requires a run capacitor for operation (not included).

Product Highlights

Ideal for various refrigerants such as R-134a, R-22, R-404A, and others.

Product Information

Standard Information

• Brand: Copeland
• MPN: ZB114K5E-TFD-960

Technical Specifications

• Application: High Temperature, Medium Temperature
• Refrigerant: R407A, R449A, R448A, R407F, R407C, R507, R134a, R22, R404A
• Voltage: 460
• Phase: 3
• Horsepower: 15
• Displacement (CFH): 1847.47
• Oil: Polyol Ester
• Oil Recharge (Oz.): 110
• Rated Load Amps: 30
• Suction Connection: 1-3/4 ROT
• Discharge Connection: 1-1/4 ROT
• Length (In.): 12.28
• Width (In.): 14.29
• Height (In.): 22.25
• Mount (In.): 7.5 x 7.5
• Overload: Internal
• BtuH Capacity @ 20°F Evap.: 115000
• BtuH Capacity @ 45°F Evap.: 166000
• Capacity Range (BTU): 55500-182000
