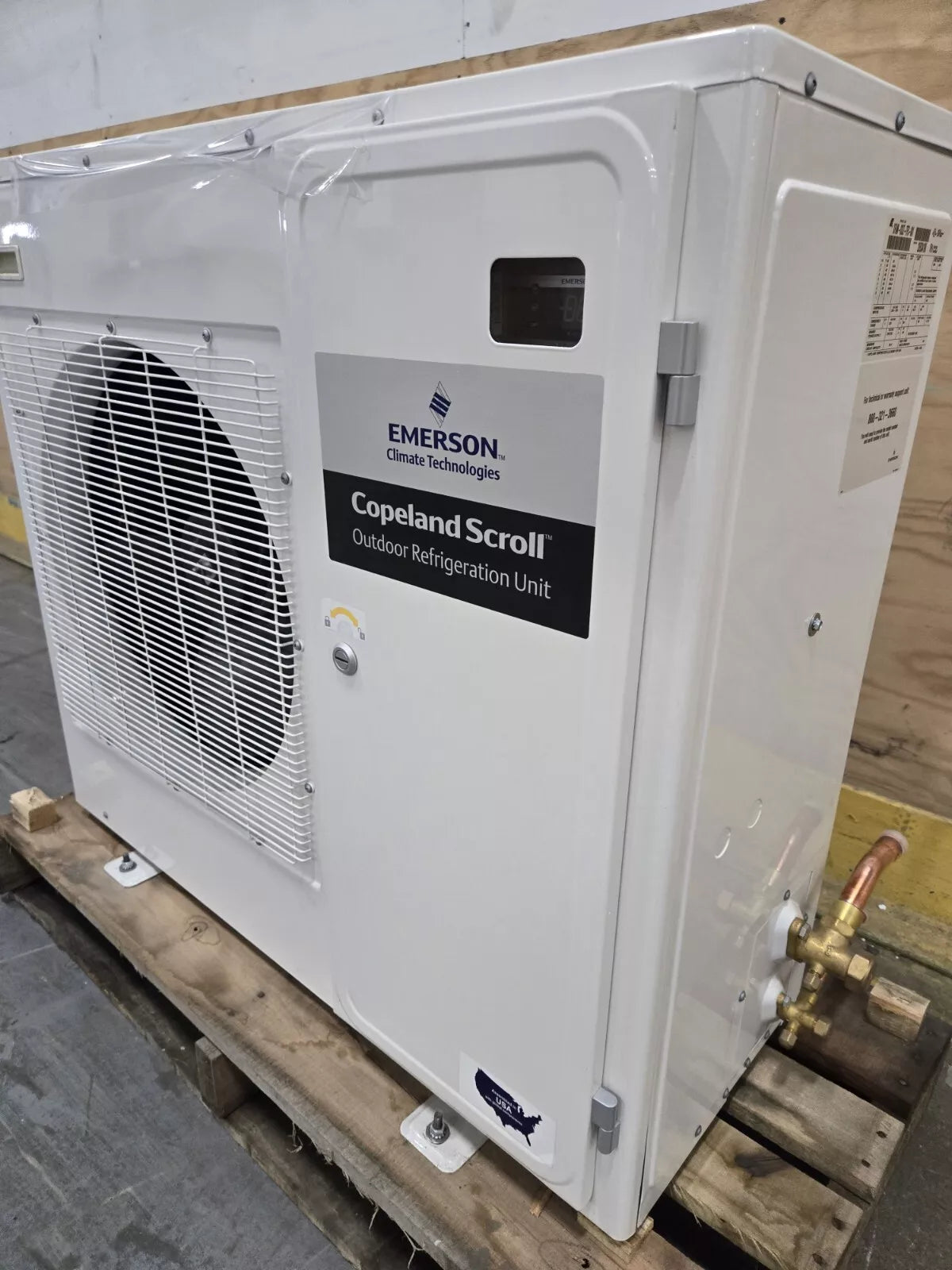

Copeland XFAM-037Z-TFC-081 Condensing Unit

Product Description

The Copeland XFAM-037Z-TFC-081 is an air-cooled condensing unit suitable for outdoor use in medium temperature settings. This unit is designed with a scroll compressor and supports various refrigerants such as R22, R134a, R404A, and R407C. It also features a receiver, electronic defrost control, and external brass service valves. The unit is enhanced with CoreSense diagnostics and Modbus communication.

• Corrosion-resistant pre-painted enclosure
• Heated and insulated receiver with pressure relief valve
• Variable speed fan for head pressure control

Product Highlights

This condensing unit serves as an effective solution for areas requiring efficient refrigeration. The advanced diagnostics and communication features enable reliable monitoring and control.

Product Information

Standard Information

• Brand: Copeland
• MPN: XFAM-037Z-TFC-081

Technical Specifications

• Application: Medium Temp
• Horsepower: 3.75
• Refrigerant: R22, R134a, R404A, R407A, R407C
• Voltage: 208/230-3-60
• Compressor Type: Scroll
• Power Phase: 3 Phase
• Supply Voltage: 220 V
• Compressor Model: ZS29KAETF5118
• MCA (Amps): 26.7
• Max Fuse / Breaker Size (Amps): 45
• Connection Liquid (In.): 1/2 S
• Connection Suction (In.): 7/8 S
• Connection Type: ODS
• Receiver Included: Yes
• Receiver Capacity 90 % Full (Lbs.): 9.1
• Oil: Polyol Ester
• Shipping Weight (Lbs.): 250.00
• Year Manufactured: 2024
• Amperage: 26.6 Amps
• Country/Region of Manufacture: United States
• Length (In.): 40.58
• Width (In.): 17.23
• Height (In.): 33.08
