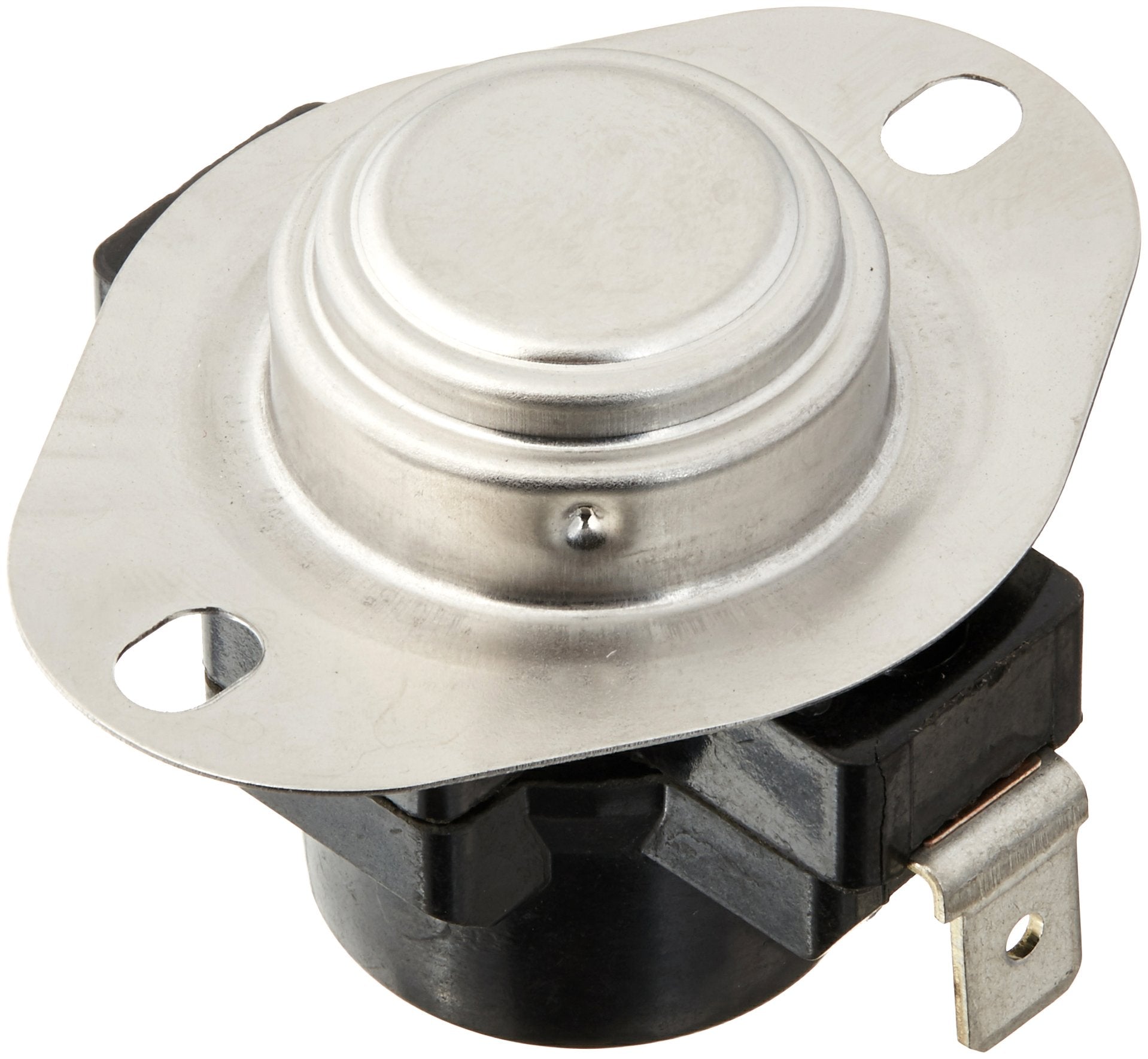

Copeland WR-3L05-2 Snap Disc Adjustable Limit Switch

Product Description

The Copeland WR-3L05-2, also referred to as the White Rodgers 3L05-2, is a snap disc adjustable limit control designed for effective temperature management. This control allows users to set a specific temperature limit tailored to their requirements. It includes 1/4 quick connect terminals for easy installation. The device acts as an open-on-rise switch, automatically resetting when the temperature drops below the set cut-out point. Commonly found in HVAC systems, it helps to prevent overheating by interrupting the circuit when temperatures exceed the preset limit.

• Adjustable snap disc limit control for customized temperature settings.
• Temperature range from one hundred seventy-five degrees Fahrenheit to two hundred fifteen degrees Fahrenheit.
• Contains thermostat and tab-to-screw terminals for straightforward installation.

Product Highlights

This device is crucial for maintaining safe operating temperatures in HVAC applications.

Product Information

Standard Information

• Manufacturer: White-Rodgers Division of Copeland
• Product Type: Limit Switch

Technical Specifications

• Temperature Cut-in: 175 Degrees F
• Temperature Cut-out: 215 Degrees F
• Differential Temperature: 40 Degrees F
• Operation Mode: Automatic
• Switch Type: SPST, open-on-rise
• Contact Rating: 10 F.L. Amp 240 Vac
