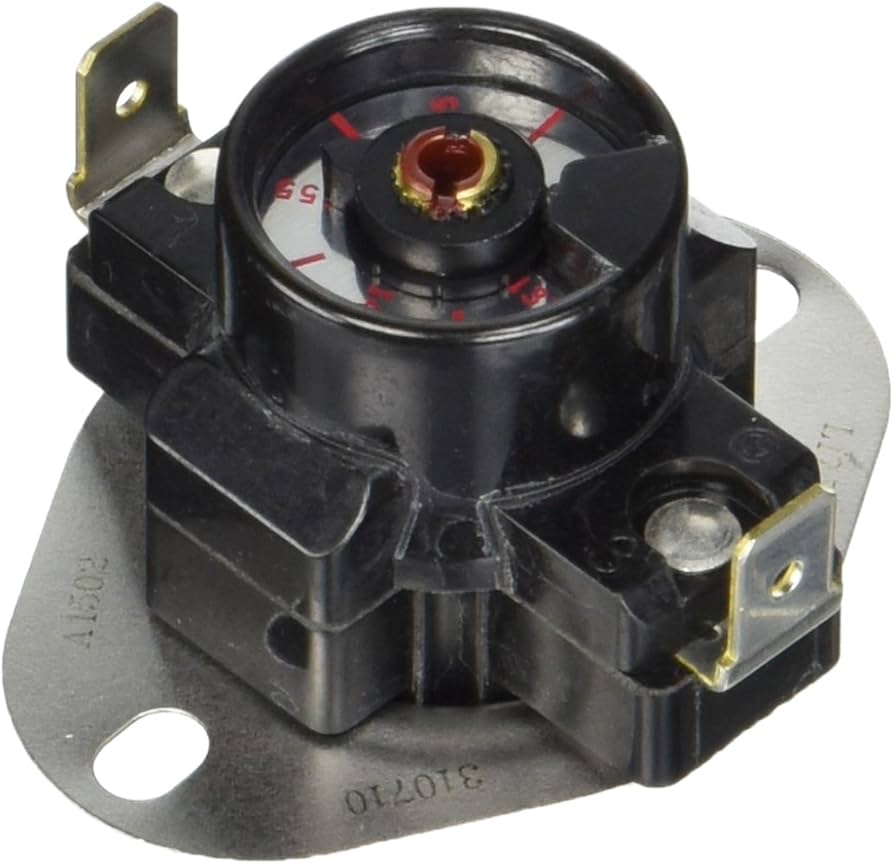

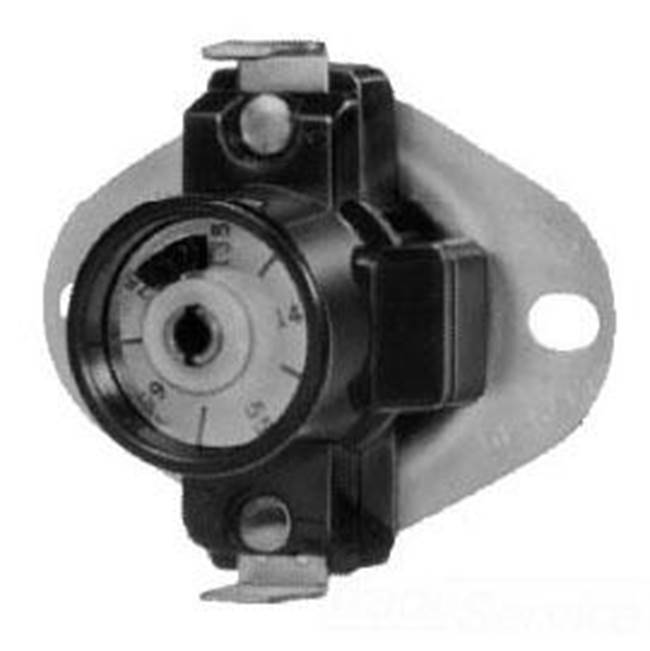

Copeland WR-3L05-1 Limit Control

Product Description

The Copeland WR-3L05-1, made by White-Rodgers, is a limit control for HVAC systems. This device features an adjustable snap disc for setting temperature setpoints between one hundred thirty-five and one hundred seventy-five degrees Fahrenheit. It uses a single pole single throw (SPST) switch that opens when the temperature rises. This model is designed for easy mounting in a flanged airstream. It includes quick connect terminals for simple installation. The WR-3L05-1 also resets automatically and is compatible with various heating and cooling systems.

• Adjustable temperature range from one hundred thirty-five to one hundred seventy-five degrees Fahrenheit.
• SPST switch opens on rise, ideal for control and safety applications.
• Quick connect terminals simplify the installation process.

Product Highlights

This limit control is suited for HVAC applications and is designed for reliability and ease of use.

Product Information

Standard Information

• Manufacturer: Copeland LP, White-Rodgers
• MPN: WR-3L05-1

Technical Specifications

• Switch Type: SPST
• Switch Action: Open on Rise
• Temperature Range: 135 to 175 degrees Fahrenheit
• Differential: 40 degrees Fahrenheit
• Connection: 1/4 inches Quick Connect
• Pilot Duty: 125 VA
• Full Load Amps @ 120 VAC: 14.00 A
• Full Load Amps @ 240 VAC: 10.00 A
• Locked Rotor Amps @ 120 VAC: 72.00 A
• Locked Rotor Amps @ 240 VAC: 60.00 A
• Resistive Amps @ 120/240 VAC: 25 A
