Copeland WR-36C03-333 White-Rodgers Universal Gas Valve - 1/2 x 3/4 - 24 VAC

Product Description

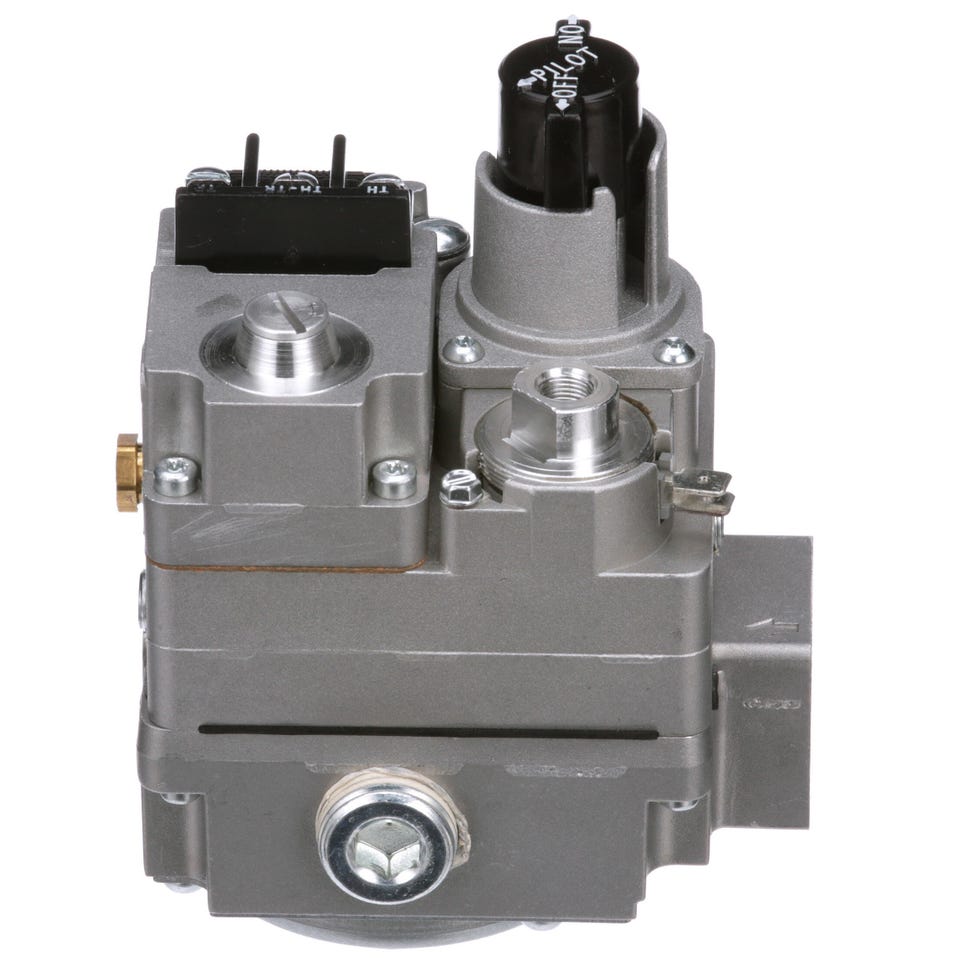

The Copeland WR-36C03-333 is a universal gas valve suitable for standing pilot systems and operates on twenty-four volts alternating current. Designed for quick replacement, this valve is convertible for natural gas or LP gas. It features a straight-through body with side taps and includes inlet and outlet screens.

• Suitable for standing pilot systems with fast opening capabilities.
• Equipped with an adjustable regulator for both natural gas and LP gas.
• Comes with inlet/outlet reducer bushings and pressure taps for monitoring.

Product Highlights

This valve provides flexibility in installation, allowing it to be mounted upright or at an angle ranging from zero to ninety degrees. It includes an LP conversion kit for added convenience.

Product Information

Standard Information

• Brand: White-Rodgers
• Universal Replacement: Yes

Technical Specifications

• Body Style: Straight Thru
• Electrical Rating: 24 VAC, 60Hz
• Inlet X Outlet: 1/2 x 3/4 inches
• Capacity, Nominal [BTU/hr]: LP: 372,600 @ 1 Pressure Drop, NG: 230,000 @ 1 Pressure Drop
• Height: 5 inches
• Length: 6.5 inches
• Width: 4 inches
• Warranty: 1 Year
• Weight: 2.74
• Stages: Single Stage
