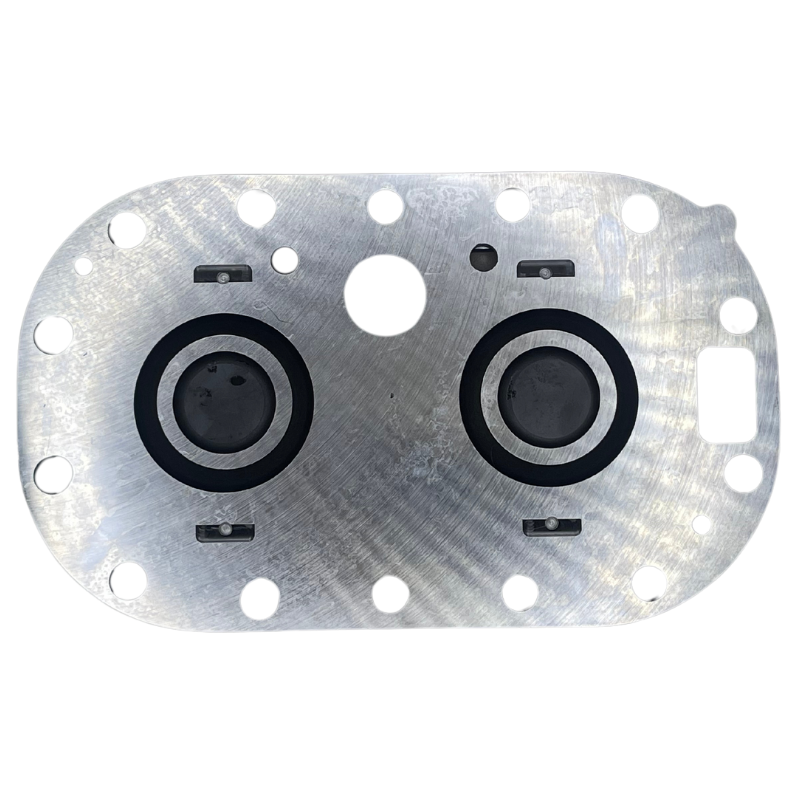

Copeland PLT-1628 Disc Type Valve Plate Medium Temp Unload Bank (253 x 152 mm) 998-1661-28

Product Description

Copeland PLT-1628 is a disc-type valve plate assembly configured as a medium-temperature unloader bank with floating suction reeds. The assembly fits a range of Copeland 4D, 6D and 8D series compressors (including 4DA–4DT, 6DB–6DT, 6DY and 8DP) and is supplied as an aftermarket spare. The unit measures 253 mm x 152 mm with a thickness of 13.26 mm and supports suction unloading in refrigeration and HVAC compressor systems.

• Disc-type valve plate with unloader configuration and floating suction reeds for medium-temperature applications
• Compatible with Copeland 4D, 6D and 8D series models (4DA, 4DB, 4DC, 4DE, 4DH, 4DJ, 4DK, 4DL, 4DN, 4DP, 4DR, 4DS, 4DT, 6DB, 6DC, 6DD, 6DE, 6DF, 6DG, 6DH, 6DJ, 6DK, 6DL, 6DM, 6DN, 6DP, 6DR, 6DS, 6DT, 6DY, 8DP)
• Dimensions: 253 mm x 152 mm, thickness 13.26 mm; aftermarket spare references include 998-1661-28 and PLT-2517

Product Highlights

Disc-type unloader valve plate with floating suction reeds for medium-temperature Copeland 4D/6D/8D compressors

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: PLT-1628
