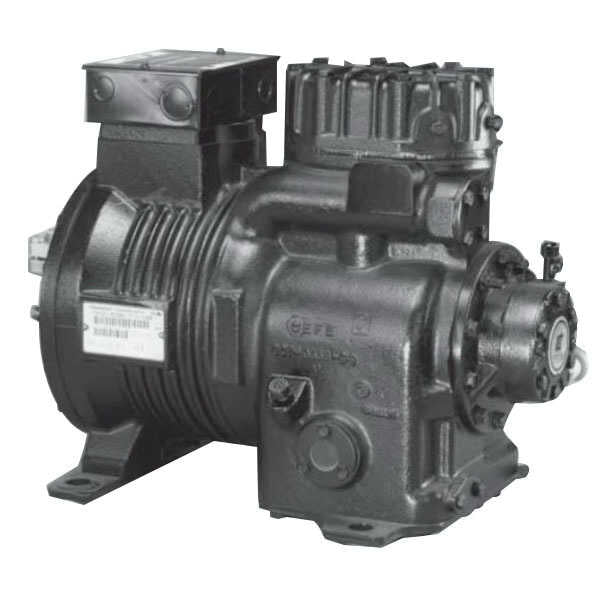

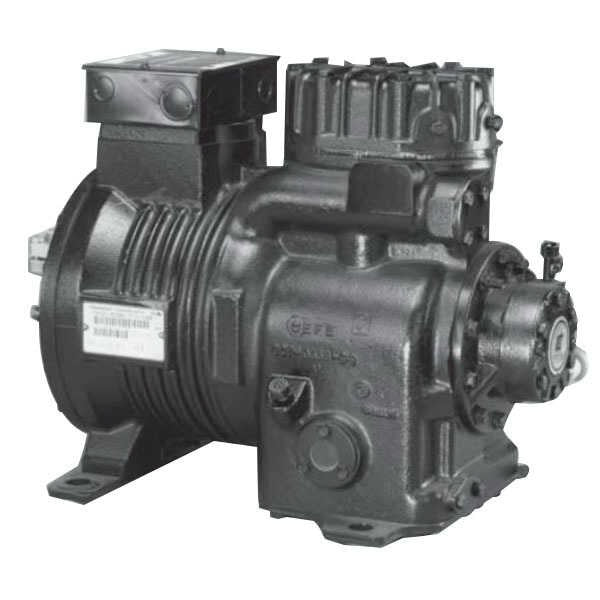

Copeland MRA2-050A-TFC-800 Medium Temperature Semi-Hermetic Compressor 28800 BtuH Cooling R-12 CFC

Product Description

The Copeland MRA2-050A-TFC-800 is a medium temperature semi-hermetic compressor designed for efficient cooling. It offers a cooling capacity of 28800 BtuH and operates on R-12 refrigerant. This compressor is suitable for various applications, including air conditioning systems.

• Cooling capacity of 28800 BtuH
• Power rating of 4390 W
• Suitable for R-12 refrigerant

Product Highlights

This compressor is reliable for medium temperature applications, ensuring effective cooling with energy efficiency.

Product Information

Standard Information

• Brand: Copeland
• MPN: MRA2-050A-TFC-800

Technical Specifications

• Type: Medium Temperature
• Cooling Capacity: 28800 BtuH
• Power Rating: 4390 W
• Voltage Rating: 208/230 V, 60 Hz, 3 Phase
• EER Rating: 6.6
• Amperage Rating: 14.2 A
• Compressor Oil: POE
• Suction Line Size: 1-3/8 Inch Sweat
• Discharge Line Size: 7/8 Inch Sweat
• Dimensions: 22.44 Inch L x 13 Inch W x 16.94 Inch H
• Mounting Type: 11.63 Inch L x 11 Inch W x 18 Inch H
• Bore Size: 2.5 Inch
• Stroke Size: 1.81 Inch
• RPM: 3500
