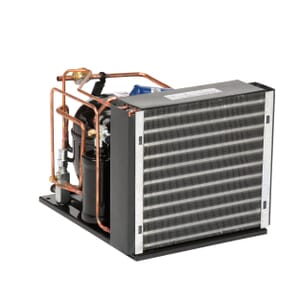

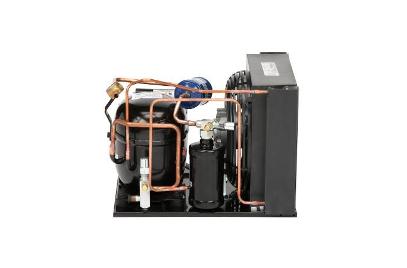

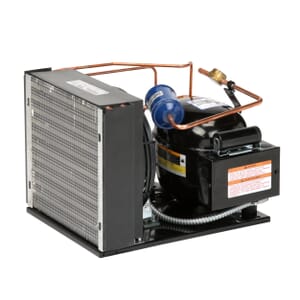

Copeland M7ZP-0041-IAA-177 Welded Condensing Unit 1/3+ HP

Product Description

The Copeland M7ZP-0041-IAA-177 is a welded condensing unit featuring the AFE12C4E-IAA compressor. Its operational capacity includes 1850 BTU per hour at negative ten degrees Fahrenheit, 2400 BTU/hour at zero degrees Fahrenheit, 3030 BTU/hour at ten degrees Fahrenheit, and 3360 BTU/hour at fifteen degrees Fahrenheit. This unit is compatible with R-134a refrigerant.

• Uses AFE12C4E-IAA compressor
• Receiver capacity is 1.5 pounds
• Ideal for various refrigeration applications

Product Highlights

This condensing unit is designed for efficiency and reliability in refrigeration, making it suitable for diverse settings.

Product Information

Standard Information

• Brand: Copeland
• MPN: M7ZP-0041-IAA-177

Technical Specifications

• BTU Capacity @ -10°F Evap: 1850
• BTU Capacity @ 0°F Evap: 2400
• BTU Capacity @ 10°F Evap: 3030
• BTU Capacity @ 15°F Evap: 3360
• Compressor: AFE12C4E-IAA
• Horsepower: 1/3+
• Height: 11.7 inches
• Length: 16.5 inches
• Liquid Connection: 1/4 inch ODF
• Max Fuse Size: 15
• Min Circuit Amps: 9
• Phase: 1
• Receiver Capacity: 1.5 pounds
• Refrigerant: R-134a
• Suction Connection: 3/8 inch ODF
• Voltage: 115
• Width: 12.7 inches
