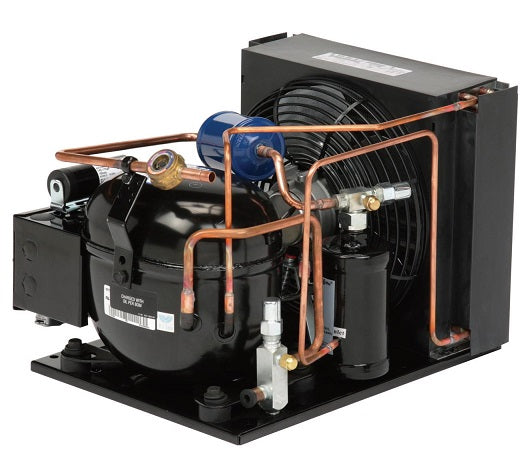

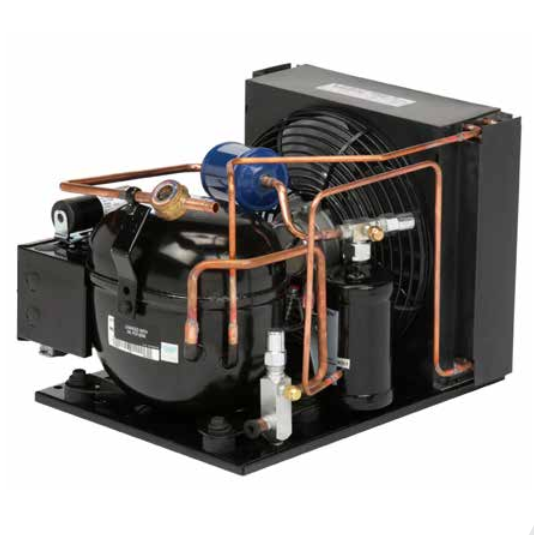

Copeland M7KH-0086-CFV-177 Condensing Unit

Product Description

The Copeland M7KH-0086-CFV-177 is a reliable air-cooled condensing unit designed for high-temperature applications. It supports refrigerants including R134A, R450A, and R513A. This unit operates on 208-230 volts of single-phase power at sixty hertz, ensuring optimal performance in a variety of environments.

• Operates on 208-230V single-phase power
• Compatible with R134A, R450A, and R513A refrigerants
• Includes essential accessories like receiver with valve and filter drier

Product Highlights

This condensing unit features a hermetic compressor that includes internal motor protection and a heavy-duty bearing fan motor for durability and efficiency.

Product Information

Standard Information

• Brand: Copeland
• MPN: M7KH-0086-CFV-177

Technical Specifications

• Refrigerant: R134A, R450A, R513A
• Temperature Application: High Temperature
• Voltage: 208-230V
• Number of Phases: 1-Phase
• Frequency: 60Hz
• Approvals: UL Recognized, CUL Certified
• Connection Liquid: 3/8 S
• Connection Suction: 5/8 S
• Connection Type: ODS
• Horsepower: 1
• Maximum Fuse / Breaker Size: 15 Amps
• MCA: 11.2 Amps
• Oil: Polyol Ester
• Receiver Included: Yes
• Length: 24 inches
• Width: 16.39 inches
• Height: 13.08 inches
• Shipping Weight: 81.32 lbs
