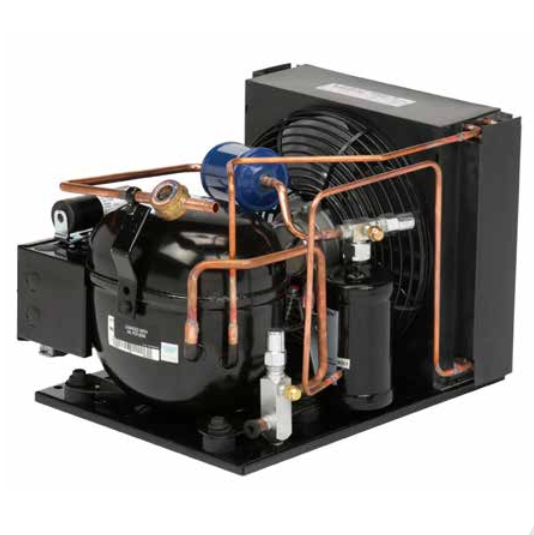

Copeland M7KH-0075-CFV-177 Condensing Unit

Product Description

The Copeland M7KH-0075-CFV-177 is an air-cooled condensing unit suitable for high-temperature applications. This unit features a hermetic compressor and a heavy-duty bearing fan motor integrated into a durable steel design.

• UL recognized and CUL certified for safety standards.
• Easy replacement serviceability, ideal for straightforward maintenance.
• Inherent protection for the compressor motor ensures operational reliability.

Product Highlights

Product Information

Standard Information

• Brand: Copeland
• MPN: M7KH-0075-CFV-177

Technical Specifications

• Refrigerant: R134A, 450A, 513A
• Temperature Application: High Temperature
• Compressor Motor Type: Capacitor Run - Capacitor Start
• Compressor Motor Protection: Internal Inherent Protection - One Protector Line Break
• Voltage: 208-230V
• Number of Phases: 1-Phase
• Frequency: 60Hz
• Approvals: UL Recognized and CUL Certified
• Design Type: Air-Cooled Steel
• Dimensions: Length 24 inches, Width 16.39 inches, Height 13.08 inches
• Shipping Weight: 86.00 lbs.
• Application: High Temp
• Compressor: RRT81C1EPFV150
• Connection Liquid: 3/8 S
• Connection Suction: 5/8 S
• Connection Type: ODS
• Horsepower: 3/4
• Maximum Fuse / Breaker Size: 15 Amps
• MCA: 9.3 Amps
• Oil: Polyol Ester
• Receiver Included: Yes
