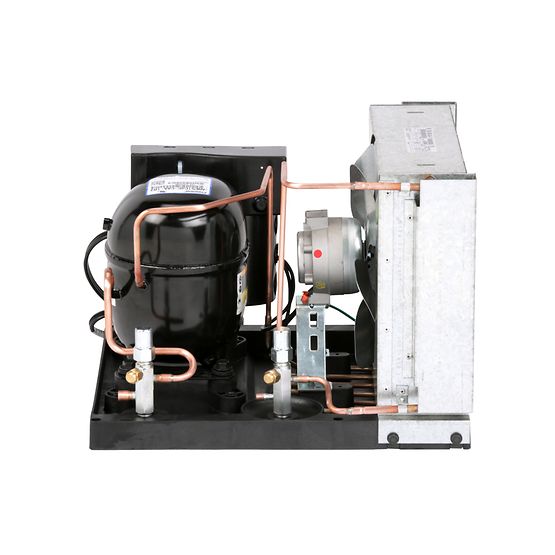

Copeland M6KP-0127-CFV-072 Air Cooled Condensing Unit 1-1/4 HP (24 x 18.3 x 16.16 in) M6KP0127CFV072

Product Description

Copeland M6KP-0127-CFV-072 is an air-cooled refrigeration condensing unit configured around a 1-1/4 HP hermetic reciprocating compressor. The unit provides compression and heat rejection for commercial refrigeration systems and is compatible with multiple refrigerants (R-404A, R-407C, R-448A, R-449A). It is configured for single-phase 208-230 VAC, 60 Hz electrical service with 5/8" suction and 3/8" liquid line connections for matching to evaporators.

• 1-1/4 HP hermetic reciprocating compressor; UL listed; internal inherent protection
• Multi-refrigerant compatibility: R-404A, R-407C, R-448A, R-449A; 5/8" suction and 3/8" liquid line connections
• Electrical: 208-230 VAC, single phase, 60 Hz; Full load amps 13, RLA 9.3, MCA 13; CSCR condenser motor

Product Highlights

Air-cooled commercial condensing unit, 1-1/4 HP reciprocating compressor, multi-refrigerant compatible, 208-230 VAC single-phase electrical

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: M6KP-0127-CFV-072
• Country of Origin: USA

Technical Specifications

• Brand: Copeland
• MPN: M6KP-0127-CFV-072
• Item Number / OPT Code: M6KP0127CFV072
• Compressor Type: Hermetic reciprocating
• Compressor Model: RST80C1E-PFV
• Compressor HP: 1-1/4 HP
• Condenser Type: Air-cooled
• Condenser Location: Indoor
• Condenser Motor Type: CSCR (Capacitor Start Capacitor Run)
• Base: Air-cooled steel
• Refrigerant: R-404A; R-407C; R-448A; R-449A
• Cooling Capacity: 2610 to 12000 BTU/Hour
• EER: 7.869
• Input Voltage: 208-230 VAC
• Phase: Single
• Frequency: 60 Hz
• Full Load Amps: 13
• Rated Load Amps (RLA): 9.3
• Minimum Circuit Ampacity (MCA): 13
• Liquid Line Size (OD): 3/8"
• Suction Line Size (OD): 5/8"
• Dimensions (L x W x H): 24 in x 18.3 in x 16.16 in
• Cubic Measurement (ft^3): 4.1073
• Weight (lbs): 98
• Receiver Capacity (lbs): 4.9
• Max Fuse Size: 20 A
• Certifications / Approvals: UL; CUL
• UL Listed: Yes
• Protection: Internal inherent
• Prop 65: Yes
• Application Temperature: Low/Medium/High Temperature
• Country of Origin: USA
