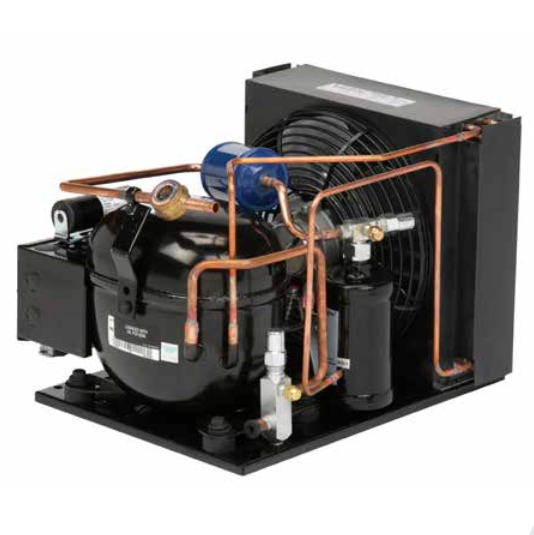

Copeland M6KP-0112-TAC-072 Air-Cooled Condensing Unit

Product Description

The Copeland M6KP-0112-TAC-072 is an air-cooled condensing unit featuring a hermetic compressor designed for indoor installations. This unit is compatible with multiple refrigerants including R404A, R407C, R448A, and R449A, making it versatile for various applications.

• Includes a receiver, suction valve, and fan guard
• Operates on a 208-230/3/60 voltage
• Suitable for low, medium, and high-temperature applications

Product Highlights

This air-cooled condenser is robust and efficient, tailored for various environments.

Product Information

Standard Information

• Manufacturer: Copeland
• Part Number: M6KP-0112-TAC-072

Technical Specifications

• Application: Low Temp, Medium Temp, High Temp
• Refrigerant: R404A, R407C, R448A, R449A
• Voltage: 208-230V
• Number of Phases: 3-Phase
• Frequency: 50/60Hz
• Horsepower: 1
• Compressor: RST70C1ETA5150
• Connection Liquid (In.): 3/8 S
• Connection Suction (In.): 5/8 S
• Connection Type: ODS
• Maximum Fuse / Breaker Size (Amps): 15
• MCA (Amps): 8.3
• Oil: Polyol Ester
• Receiver Included: Yes
• Design Type: Air-Cooled Steel
• Dimensions (L x W x H): 24 x 18.33 x 16.16 inches
• Compressor Motor Type: General - 3 Lead Single Voltage
• Compressor Motor Protection: External Inherent Protection - One Protector Line Break
• Approvals: UL Listed and CUL Certified
