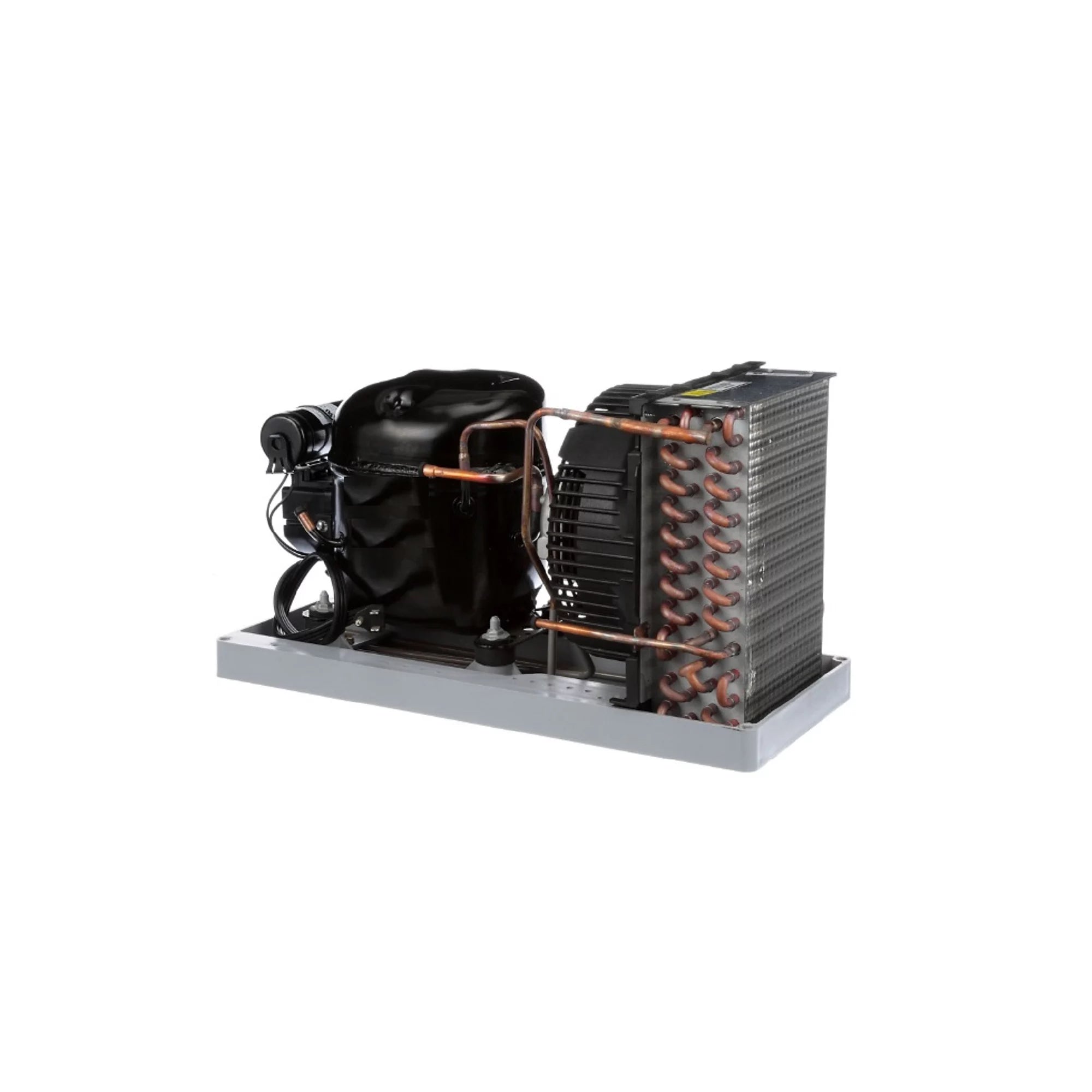

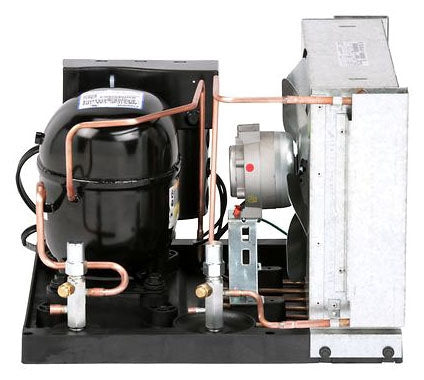

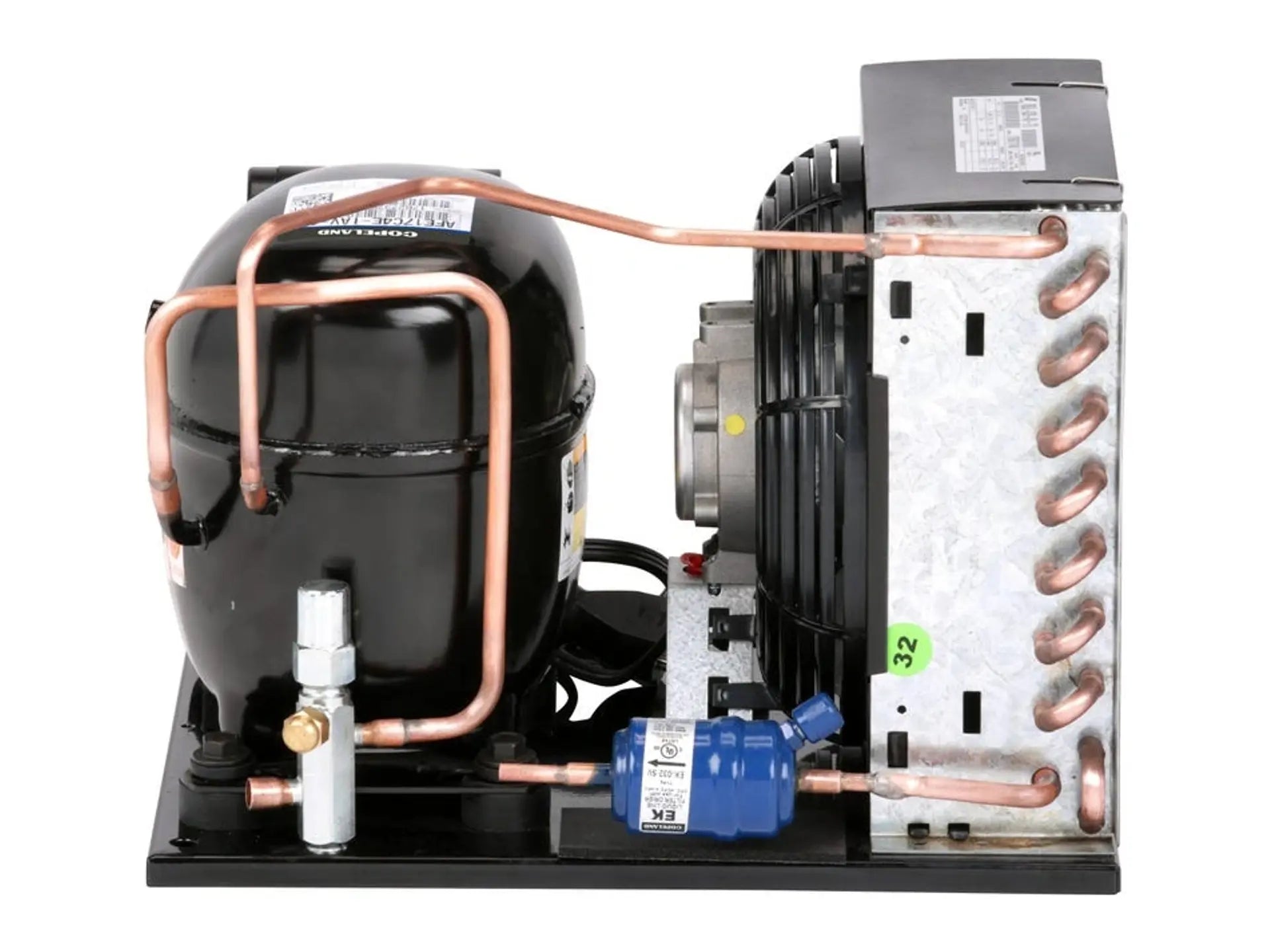

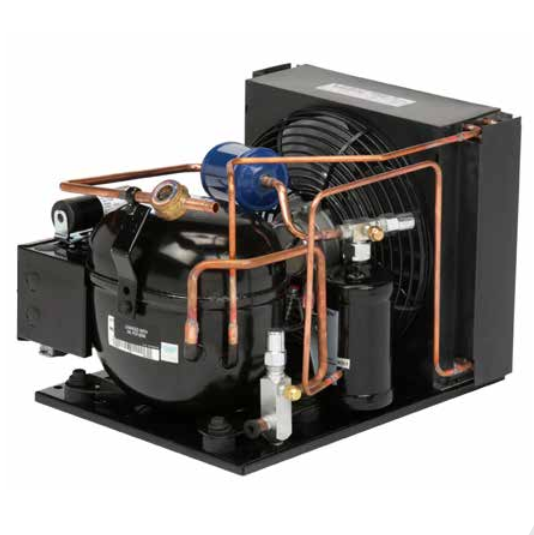

Copeland M6KP-0092-CFA-177 Refrigeration Condensing Unit 3/4 HP

Product Description

The COPELAND M6KP-0092-CFA-177 is an economical air-cooled condensing unit platform featuring hermetic reciprocating compressor technology. It is designed for high, medium, and low-temperature refrigeration applications and is ideal for foodservice applications. The unit operates on 115 VAC and 60 Hz single-phase power.

• Economical condensing unit platform
• Hermetic reciprocating compressor technology
• For use in high, medium and low temperature refrigeration applications

Product Highlights

This Copeland condensing unit is designed for reliability, high energy efficiency, and low sound and vibration.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: M6KP-0092-CFA-177
• Country of Origin: USA

Technical Specifications

• Application Temperature: Low/Medium/High Temperature
• Base: Air-Cooled Steel
• Brand: Copeland
• Compressor HP: 1 HP
• Condenser Location: Indoor
• Condenser Motor Type: CSCR - (Capacitor Start Capacitor Run)
• Condenser Type: Air-Cooled
• Cycle/Hertz: 60 Hz
• Energy Star Rated: No
• Full Load Amps: 20.3
• Height: 13.08
• Length: 24
• Liquid Line Size (OD): 3/8"
• OPT Code: M6KP0092CFA177
• Phase: Single
• Prop 65: Yes
• Protection: Internal Inherent
• Rated Load Amps (RLA): 14.6
• Refrigerant: R-404A; R-407C; R-448A; R-449A
• Suction Line Size (OD): 1/2"
• UL Listed: Yes
• Voltage: 115 VAC
• Width: 16.39
• Minimum Circuit Ampacity (MCA): 20.3
• Compressor Type: Reciprocating
• Country of Origin: USA
• Power Rating: 1/6 to 3/4 HP
• Cooling Capacity: 2340 to 8670 BTU/Hour
• Current Rating: 20.3 Amp (Minimum Circuit Ampacity)
• Number Of Phases: 1
• Approval: UL, EPA
• Frequency: 60Hz
• Compressor Motor Protection: Internal Inherent Protection - One Protector Line Break
• Temperature Application: Multiple
• Design Type: Air-Cooled Steel 24" x 16.1"
• Compressor Motor Type: Capacitor Run - Capacitor Start
• Approvals: UL Recognized and CUL Certified
