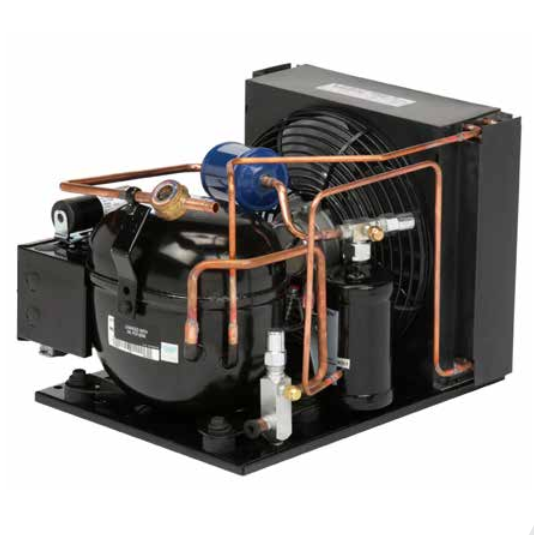

Copeland M6JM-H043-IAA-177 Refrigeration Condensing Unit 1/2 HP 120 VAC (M6JMH043IAA177)

Product Description

The Copeland M6JM-H043-IAA-177 is a refrigeration condensing unit rated at 1/2 HP, configured for 120 VAC single-phase operation and charged for R404A refrigerant for medium-temperature applications. It is an air-cooled hermetic condensing unit that incorporates Copeland next-generation compressor technology and modular components for serviceability. The unit is intended for integration into medium-temperature refrigeration systems requiring a compact single-phase condensing assembly.

• 1/2 HP compressor; 120 VAC single-phase operation; charged for R404A refrigerant; medium-temperature rating
• Air-cooled hermetic condensing unit with Copeland next-generation compressor technology and modular components for serviceability
• Compressor motor: induction run with capacitor start; external inherent motor protection; UL recognized and CUL certified; rated to typical commercial ambients (up to 110 F)

Product Highlights

Air-cooled hermetic condensing unit for medium-temperature refrigeration; 1/2 HP, 120 VAC, charged for R404A; single-phase Copeland compressor

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: M6JM-H043-IAA-177
• Country of Origin: United States

Technical Specifications

• Brand: Copeland
• Manufacturer Part Number: M6JM-H043-IAA-177
• Alternate MPN: M6JMH043IAA177
• Model: M6JMH043IAA177
• Type: Air Cooled Hermetic Condensing Unit
• Horsepower: 1/2 HP
• Input Voltage: 120 VAC
• Phase: Single-phase
• Frequency: 60 Hz
• Refrigerant: R404A (compatible with lower-GWP refrigerants such as R448A and R449A)
• Temperature Rating: Medium Temperature
• Compressor Model: ASE39C5E-IAA
• Compressor Motor Type: Induction run - capacitor start
• Compressor Motor Protection: External inherent protection (one protector line break)
• Min Circuit Amps: 13.2 A
• Max Fuse Size: 20 A
• Suction Connection: 3/8" ODF
• Liquid Connection: 1/4" ODF
• Receiver Capacity: 1.3 lb
• Approvals: UL recognized; CUL certified
