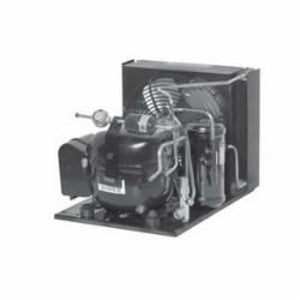

Copeland M4FL-0040-IAA-272 Air Cooled Condensing Unit 2560 BtuH

Product Description

The Copeland M4FL-0040-IAA-272 is an air cooled condensing unit designed for refrigeration tasks. It provides a cooling capacity of 2560 BtuH. This unit operates on a voltage of 115 V and is compatible with 60 Hz, single-phase systems. It includes a power rating of 0.33 horsepower and is equipped with modular components for easy installation.

• Cooling Capacity: 2560 BtuH
• Energy Efficiency Ratio: 3.8
• Compact design with low sound operation

Product Highlights

This unit features a slip liquid line of one-fourth inch and a slip suction line of three-eighths inch. It is charged with R-404A refrigerant and is designed to handle ambient temperatures up to one hundred ten degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Copeland
• MPN: M4FL-0040-IAA-272

Technical Specifications

• Type: Air Cooled
• Voltage Rating: 115 V, 60 Hz, 1 Phase
• Power Rating: 0.33 hp
• Cooling Capacity: 2560 BtuH
• EER Rating: 3.8
• Dimensions: 16.2 Inch L x 13.1 Inch W x 11.7 Inch H
• Flow Rate: 330 cfm
• Refrigerant Type: R-404A, HFC
• Circuit Amperage Rating: 8.9 A
• Fuse Size: 15 A
• Oil Type: POE
• Temperature Rating: 90 deg F
• Liquid Line Size: 1/4 Inch Slip
• Suction Line Size: 3/8 Inch Slip
