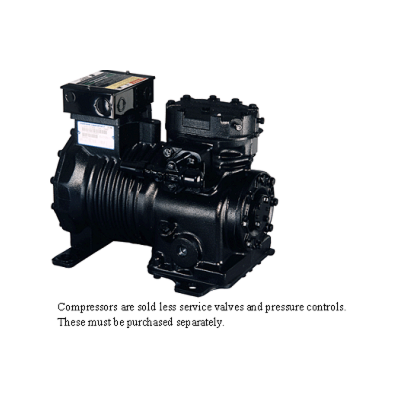

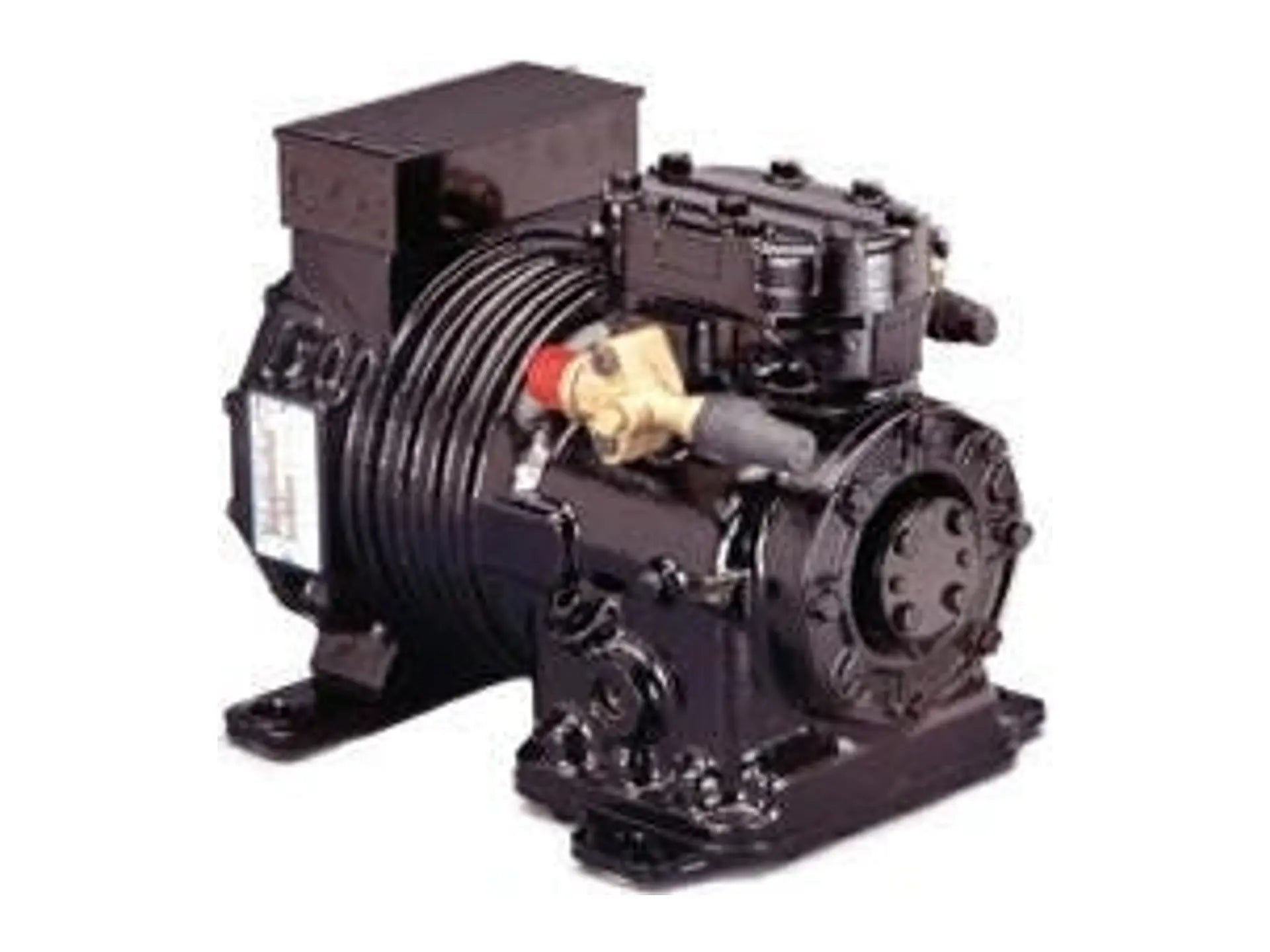

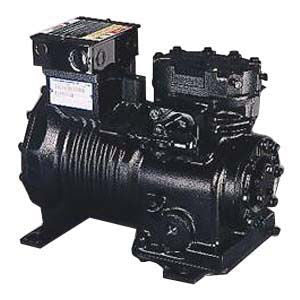

Copeland LAHB-032E-CAB-800 Aftermarket Semi-Hermetic Compressor 230 VAC

Product Description

The Copeland LAHB-032E-CAB-800 is a semi-hermetic compressor with a wide selection range. This compressor features proven Copeland dependability and is suitable for commercial refrigeration, air conditioning, and heat pump applications. Its rugged, compact construction allows for heavy-duty usage and easy field maintenance. It operates at 230 VAC and 60 Hz.

• Wide selection Range
• Proven Copeland Dependability
• Easily Accessible for Field Maintenance

Product Highlights

This semi-hermetic compressor is designed for refrigeration, air conditioning, and heat pump applications. It features a rugged design and is easily accessible for maintenance.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: LAHB-032E-CAB-800
• Country of Origin: USA

Technical Specifications

• Amps: 9.9-13.2
• Brand: Copeland
• BTU Output: 11200
• Compressor Housing: Semi-Hermetic
• Cycle/Hertz: 60 Hz
• Discharge Connection Type: Flare
• Evaporating Temperature: -25°F, -40°F (-40°C)
• Locked Rotor Amps (LRA): 105
• Mass Flow (lbs/hr): 44 lbs./hr.; 123 lbs./hr.
• Maximum Voltage: 230 VAC
• Oil Charge Initial (oz.): 80
• Oil Type: Mineral (MO), Polyolester (POE)
• OPT Code: LAHB032ECAB800
• Overload Type: Internal
• Phase: Single
• Prop 65: Yes
• Protection: External Inherent Protection
• Rated Load Amps (RLA): 16.7
• Refrigerant: R-404A; R-448A
• Return Gas Temperature: 65°F (18.33°C)
• Suction Line Fitting Type: Sweat or Braze
• Suction Line Size (OD): 1 1/8"
• UL Listed: No
• Voltage: 230 VAC
• Minimum Circuit Ampacity (MCA): 13.2
• Country of Origin: USA
• Motor Rating: 3 HP
• Series: LA
• Temperature Rating: -25 to -40 deg F Evaporator, 105 deg F Condensing, Liquid, 65 deg F Return Gas
• Power Rating: 2780 W
• EER Rating: 4
• Discharge Line Size: 5/8 in Flare
• Speed Rating: 3500 rpm
• CFM Rating: 11.583 cfm
• Compressor Oil: POE
• Flow Rate: 97 to 201 lb/hr
• Applicable Standard: UL
