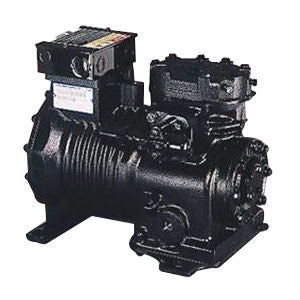

Copeland LACA-032E-TAC-800 Extra-Low Temperature Semi-Hermetic Compressor 8130 BtuH Cooling R-404A HFC

Product Description

The Copeland LACA-032E-TAC-800 is an extra-low temperature semi-hermetic compressor designed for refrigeration applications. It provides a cooling capacity of 8130 BtuH and operates at a power rating of 2200 Watts using refrigerant R-404A. This compressor is suitable for various HVAC and refrigeration systems.

• Cooling capacity of 8130 BtuH
• Voltage rating of 208/230 V for compatibility
• Equipped with POE compressor oil

Product Highlights

This compressor features UL approval and is designed for efficiency in refrigeration tasks.

Product Information

Standard Information

• Manufacturer: Copeland
• MPN: LACA-032E-TAC-800

Technical Specifications

• Type: Extra-Low Temperature
• Cooling Capacity: 8130 BtuH
• Power Rating: 2200 W
• Voltage Rating: 208/230 V, 60 Hz, 3 Phase
• Amperage Rating: 10.8 A
• Suction Line Size: 1-1/8 Inch Sweat
• Discharge Line Size: 5/8 Inch Flared
• Mounting Dimensions: 11.63 Inch L x 11 Inch W x 15.75 Inch H
• Oil Type: POE
• Dimensions: 18.63 Inch L x 14 Inch W x 14.72 Inch H
• Bore Size: 2.44 Inch
• Stroke Size: 1.44 Inch
• RPM: 3500
