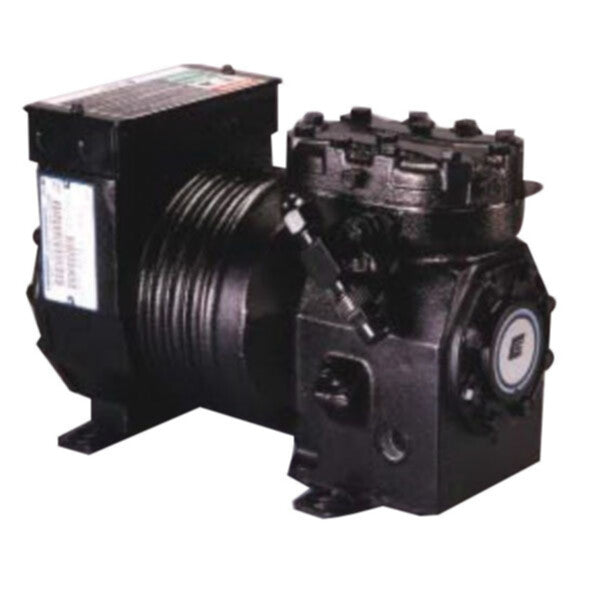

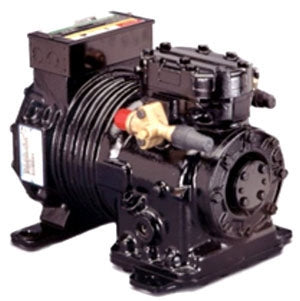

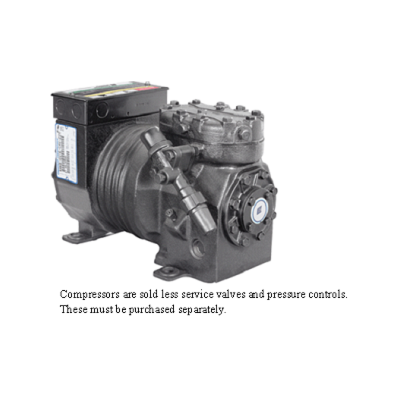

Copeland KARB-010E-CAV-800 Aftermarket Semi-Hermetic Compressor 208-230 VAC

Product Description

The Copeland KARB-010E-CAV-800 is a semi-hermetic compressor designed for systems requiring full temperature range performance, including low temperature evaporating conditions down to -40°F. This Copeland K-Body compressor features pistons designed for increased cooling capacity and an energy-efficient motor. It is suitable for use in medium to high temperature refrigeration applications.

• Suitable for low temperature evaporating conditions to -40°F
• Features an energy efficient motor
• Durable bearings for longer freezer life

Product Highlights

This semi-hermetic compressor is designed for efficiency and durability in a range of refrigeration applications.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: KARB-010E-CAV-800
• Country of Origin: USA

Technical Specifications

• Brand: Copeland
• Compressor Housing: Semi-Hermetic
• Cycle/Hertz: 60 Hz
• Discharge Connection Type: 1/2" Flare
• Evaporating Temperature: 20°F (-6.67°C), 45°F
• Locked Rotor Amps (LRA): 40
• Maximum Voltage: 230 VAC
• Oil Charge Initial (oz.): 22
• Oil Type: Mineral (MO), Polyolester (POE)
• OPT Code: KARB010ECAV800
• Overload Type: Internal
• Phase: Single
• Protection: External Inherent Protection
• Rated Load Amps (RLA): 7.4
• Refrigerant: R-502
• Return Gas Temperature: 65°F (18.33°C)
• Suction Line Fitting Type: Flare
• Suction Line Size (OD): 5/8"
• UL Listed: No
• Voltage: 208-230 VAC
• Minimum Circuit Ampacity (MCA): 7.1
• Country of Origin: USA
• Motor Type: Run/Start Capacitor
• Motor Rating: 1 HP
• Applicable Standard: UL
• Cooling Capacity: 12500 BtuH
• Refrigerant Type: R-22, HCFC
• Power Rating: 1520 W
• EER Rating: 8.2
• Application: Refrigeration
• Body Type: KA
• Frequency: 60Hz
• Series-Brand: Copelametic
• Amps: 5.6-7.1
• Suction Size: 5/8 Inch Flare
• Discharge Size: 1/2 Inch Flare
• Electrical: 208/230-1-60
• Compressor Oil: POE
• Temperature Rating: 20 to 45 deg F Evaporator, 120 to 130 deg F Condensing, 65 deg F Return Gas, 120 to 130 deg F Liquid
• Type: High Temperature
• Speed Rating: 3500 rpm
• Tonnage: 1 ton
