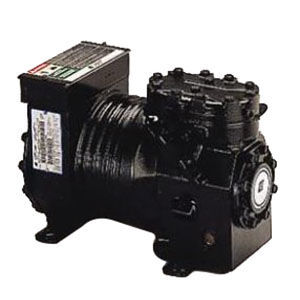

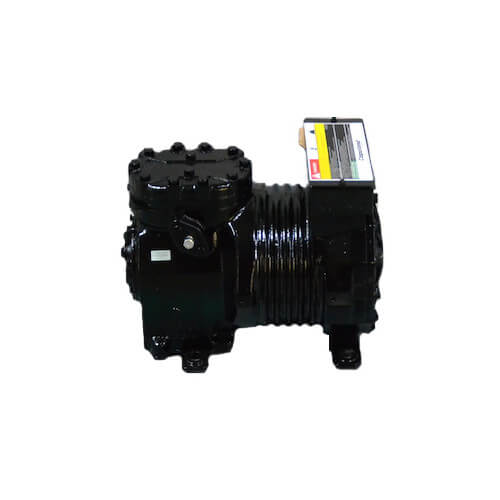

Copeland KALB-015E-CAV-800 | 230v1ph 5720btu R-404A Compressor

Product Description

The Copeland KALB-015E-CAV-800 is a 230-volt, 1-phase compressor designed for R-404A refrigerant. It delivers a cooling capacity of 5720 BTU, making it suitable for refrigeration, air conditioning, and heat pump applications. The construction features include cast iron for durability and a heavy-duty motor for reliable operation. Key protective features include an internal overload protector and a high-pressure cut-out switch.

• Cooling capacity of 5720 BTU.
• Designed for R-404A refrigerant.
• Durable cast-iron construction with protective features.

Product Highlights

This compressor is ideal for commercial refrigeration and HVAC applications, providing efficient cooling while ensuring system safety.

Product Information

Standard Information

• Brand: Copeland
• Model Number: KALB-015E-CAV-800

Technical Specifications

• Cooling Capacity: 5720 BTU
• Voltage Rating: 230V
• Phase: 1
• Refrigerant Type: R-404A
• Motor Type: Heavy-duty
• Mounting Dimensions: 8.19 inches L x 6.38 inches W x 11.19 inches H
• Overall Dimensions: 14.38 inches L x 9.5 inches W x 10.44 inches H
• Amperage Rating: 7.4 A
• Weight: 92 lbs
