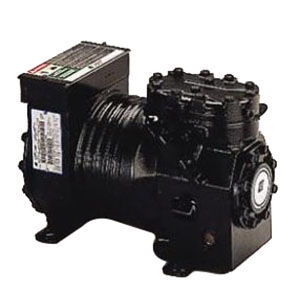

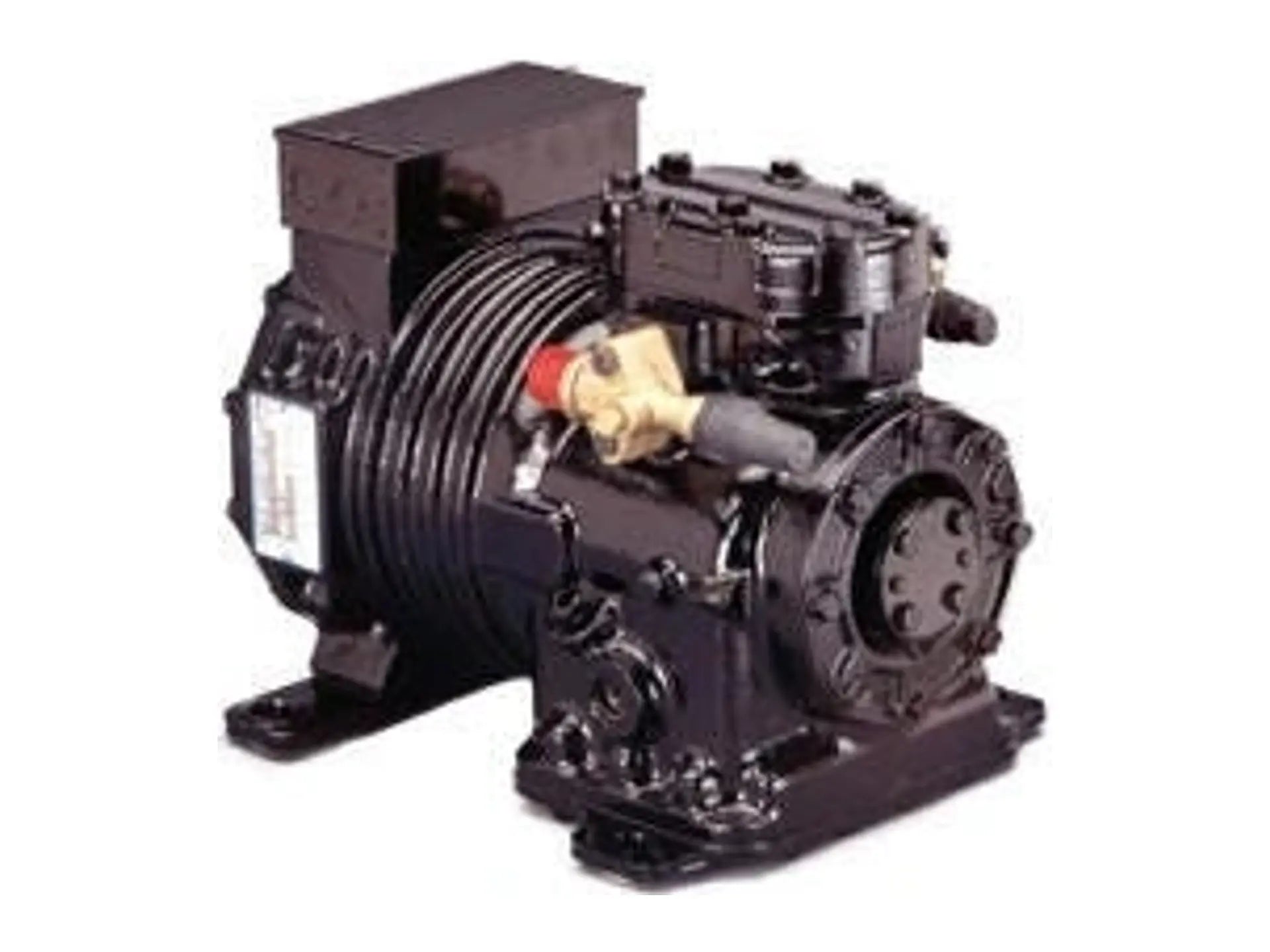

Copeland KAJA-011E-TAC-800 Semi-Hermetic Compressor 893 W (1 HP)

Product Description

Copeland KAJA-011E-TAC-800 is a semi-hermetic reciprocating compressor rated at 3000 BTU/h (893 W) for low-temperature refrigeration. It runs on 208-230 VAC, 60 Hz three-phase power and is compatible with R-404A and R-507A refrigerants. The unit accepts mineral (MO) or polyolester (POE) oil, includes internal overload protection and external inherent protection, and uses flare suction and discharge connections.

• Operates across full temperature range down to -40°F; evaporating temperature down to -25°F and -40°F
• Electrical: 208-230 VAC, 60 Hz, 3 phase; current 2.9–3.3 A, rated load 4.6 A, locked rotor 27 A
• Compatible with R-404A and R-507A refrigerants; accepts Mineral (MO) or POE oil with 22 oz initial oil charge

Product Highlights

Semi-hermetic low-temperature compressor, 208-230 VAC three-phase, 3000 BTU/h (893 W), R-404A/R-507A compatible, flare suction/discharge, internal overload protection

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: KAJA-011E-TAC-800
• Country of Origin: USA

Technical Specifications

• Manufacturer: Emerson (Copeland)
• Brand: Copeland
• MPN: KAJA-011E-TAC-800
• Type: Semi-Hermetic Reciprocating Compressor
• Cooling Capacity: 3000 BTU/h
• Power Rating: 893 W
• Input Voltage: 208-230 VAC
• Frequency: 60 Hz
• Phase: Three-phase
• Amps: 2.9-3.3 A
• Rated Load Amps (RLA): 4.6 A
• Minimum Circuit Ampacity (MCA): 4.6 A
• Locked Rotor Amps (LRA): 27 A
• Refrigerant: R-404A; R-507A
• Oil Type: Mineral (MO), Polyolester (POE)
• Oil Charge Initial: 22 oz
• Suction Line Size (OD): 5/8 in flare
• Discharge Connection Type: Flare
• Overall Dimensions (L x W x H): 15.6 in x 10.1 in x 11.8 in
• Weight (package): 83.85 lbs
• Evaporating Temperature: -25°F, -40°F
• Mass Flow: 37 lb/hr; 66 lb/hr
• Return Gas Temperature: 65°F (18.33°C)
• Protection: Internal overload protection; External inherent protection
• BTU Output: 3000
