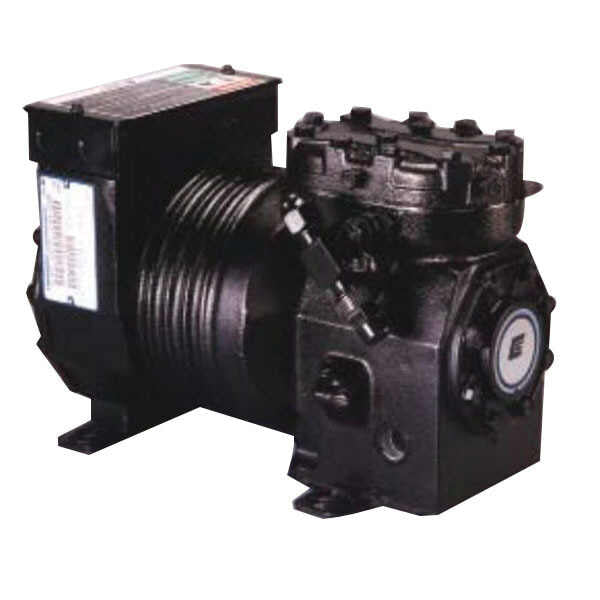

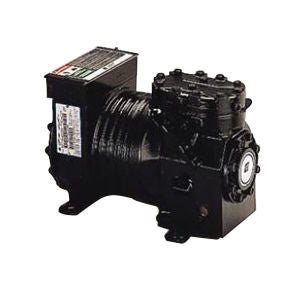

Copeland KAGA-015A-TAC-800 High Temperature Semi-Hermetic Compressor 15 Ton 15800 BTUH Cooling

Product Description

The Copeland KAGA-015A-TAC-800 is a high temperature semi-hermetic compressor designed for efficient refrigeration applications. It has a nominal cooling capacity of 15 tons and is capable of handling 15800 BTUH. This compressor operates on a power rating of 1590 watts and is compatible with R-22 refrigerant.

• Nominal capacity of 15 tons
• Cooling capacity of 15800 BTUH
• Power rating of 1590 watts

Product Highlights

The KAGA-015A-TAC-800 is suitable for various refrigeration systems, especially in high temperature environments. It features standard approvals under UL SA-2337.

Product Information

Standard Information

• Manufacturer: Copeland LP
• MPN: KAGA-015A-TAC-800

Technical Specifications

• Type: High Temperature Semi-Hermetic
• Cooling Capacity: 15800 BTUH
• Power Rating: 1590 W
• Voltage Rating: 200/220 V, 50 Hz, 3 Phase
• Amperage Rating: 5.1 A
• Suction Line Size: 7/8 Inch Sweat
• Discharge Line Size: 1/2 Inch Flared
• Dimensions: 14.38 Inch L x 9.50 Inch W x 10.44 Inch H
