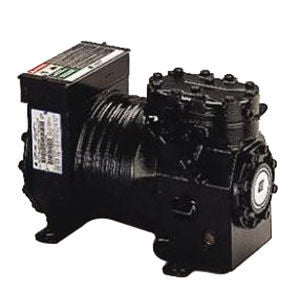

Copeland KAGA-007A-TAC-800 Medium Temperature Semi-Hermetic Compressor 5440 BTUH Cooling R-12 CFC

Product Description

The Copeland KAGA-007A-TAC-800 is a semi-hermetic compressor designed for medium temperature applications. It provides a cooling capacity of five thousand four hundred forty BTU per hour. This unit operates on R-12 refrigerant and is suitable for use in various refrigeration systems.

• Medium temperature range
• 5440 BTU cooling capacity
• 208/230 V, 3 phase operation

Product Highlights

Designed for efficient refrigeration, this compressor features a compact mounting size and reliable operation for various cooling needs.

Product Information

Standard Information

• Brand: Copeland
• MPN: KAGA-007A-TAC-800

Technical Specifications

• Cooling Capacity: 5440 BTU/h
• Power Rating: 794 W
• Voltage Rating: 208/230 V, 60 Hz, 3 Phase
• Amperage Rating: 3.2 A
• Refrigerant Type: R-12, CFC
• Suction Line Size: 5/8 Inch Flare
• Discharge Line Size: 3/8 Inch Flared
• Mounting Dimensions: 8.19 Inch L x 6.38 Inch W x 11.19 Inch H
• Overall Dimensions: 14.38 Inch L x 9.5 Inch W x 10.44 Inch H
• EER Rating: 6.9
