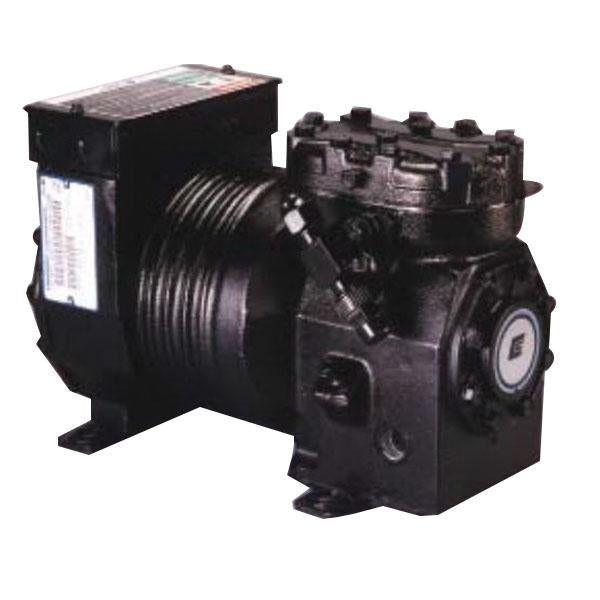

Copeland KAAB-007E-CAA-800 Semi-Hermmetic Compressor 3/4 HP (115 V 60 Hz)

Product Description

The Copeland KAAB-007E-CAA-800 is a semi-hermetic reciprocating compressor for extra-low temperature refrigeration. Rated 3/4 HP (1,130 W) with 4,250 BtuH cooling capacity, it operates on 115 V, 60 Hz single-phase power and is compatible with R-404A refrigerant and POE or mineral oils. The two-cylinder unit has 4.2 cu-in/rev displacement, external inherent protection, and a mounting footprint of 8.19 x 6.38 x 11.19 inches.

• 3/4 HP (1,130 W) semi-hermetic reciprocating compressor with 4,250 BtuH capacity
• Operates on 115 VAC, 60 Hz single-phase; rated load 10.2 A, locked rotor 59.8 A
• Compatible with R-404A refrigerant; POE or mineral oil; 22 oz initial oil charge

Product Highlights

Extra-low temperature semi-hermetic compressor, 3/4 HP, 4,250 BtuH, 115 V single-phase, 5/8" suction and 3/8" discharge flare connections.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: KAAB-007E-CAA-800
• Country of Origin: USA

Technical Specifications

• Brand: Copeland
• Manufacturer Part Number: KAAB-007E-CAA-800
• Type: Semi-hermetic reciprocating compressor
• Power: 3/4 HP (1,130 W)
• Cooling Capacity: 4,250 BtuH
• Voltage: 115 VAC
• Frequency: 60 Hz
• Phase: Single
• Refrigerant: R-404A
• Oil Type: Polyolester (POE) or Mineral (MO)
• Initial Oil Charge: 22 oz
• Oil Recharge: 20 oz
• Rated Load Amps (RLA): 10.2 A
• Locked Rotor Amps (LRA): 59.8 A
• Minimum Circuit Ampacity (MCA): 10.2 A
• Displacement: 4.2 cu-in/rev
• Cylinders: 2
• Bore: 1.69 in
• Stroke: 0.94 in
• Mass Flow: 44–76 lbs/hr
• Mounting Dimensions: 8.19 in x 6.38 in x 11.19 in
• Overall Dimensions: 14.38 in x 9.5 in x 10.44 in
• Weight: 84.35 lbs
• Suction Line Size: 5/8 in flare
• Discharge Line Size: 3/8 in flare
• Motor Type: Capacitor run / capacitor start
• Protection: External inherent protection (line-break protector; use with contactor)
• Speed: 3500 RPM
• EER: 3.1–3.7
• Operating Evaporating Temperature: -40 to -25 deg F
• Return Gas Temperature: 65 deg F
• Displacement Flow (ft^3/hr): 255.09
• Certifications: UL SA-2337
• Country of Origin: USA
