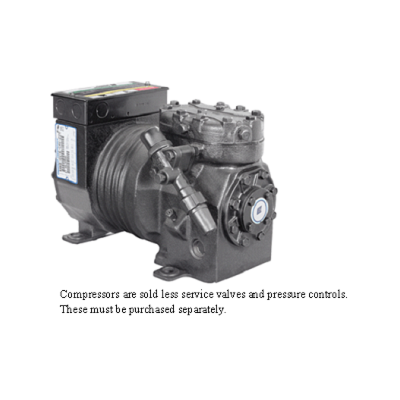

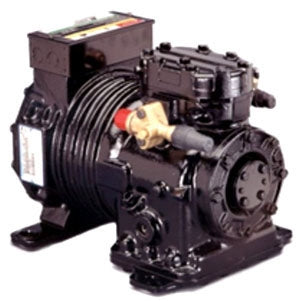

Copeland KAAB-007A-IAA-800 Aftermarket Semi-Hermetic Compressor 115 VAC

Product Description

The COPELAND KAAB-007A-IAA-800 is a semi-hermetic reciprocating compressor suitable for systems requiring full temperature range performance, including low temperature evaporating conditions down to -40°F. The Copeland K-Body is known for reliably maintaining lower temperatures inside freezers. It features increased cooling capacity and an energy-efficient motor.

• Suitable for low temperature evaporating conditions to -40°F
• Energy efficient motor
• Durable bearings for longer freezer life

Product Highlights

This semi-hermetic compressor is designed to save energy, cut operating expenses, and reduce service calls and maintenance costs.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: KAAB-007A-IAA-800
• Country of Origin: USA

Technical Specifications

• Amps: 10.4-11.7
• Brand: Copeland
• BTU Output: 2570-4800
• Compressor Housing: Semi-Hermetic
• Cycle/Hertz: 60 Hz
• Evaporating Temperature: -25°F (-31.67°C), -40°F
• Locked Rotor Amps (LRA): 59.8
• Mass Flow (lbs/hr): 95 lbs./hr.; 50 lbs./hr.
• Maximum Voltage: 115 VAC
• Oil Charge Initial (oz.): 22
• Oil Type: Alkylbenzene (AB)
• OPT Code: KAAB007AIAA800
• Overload Type: Internal
• Phase: Single
• Prop 65: Yes
• Protection: External Inherent Protection
• Rated Load Amps (RLA): 10.2, 9.2
• Refrigerant: Various
• Return Gas Temperature: 65°F (18.33°C)
• Suction Line Fitting Type: Flare
• Suction Line Size (OD): 5/8"
• Voltage: 115 VAC
• Minimum Circuit Ampacity (MCA): 10.2
• Discharge Connection Type: 3/8"
• Applicable Standard: UL
• Catalog Number: KAAB-007A-IAA-800
• Commodity Code Description Level 5: Air Conditioner Compressors
• Series: KA
• Used On Item: Low Temperature Refrigeration
• Amperage Rating: 11.7 A
• Compressor Oil: Alkylbenzene
• Discharge Line Size: 3/8 in Flare
• EER Rating: 4.1
• Flow Rate: 50 to 95 lb/hr
• Power Rating: 3/4 hp
• Refrigerant Type: R-12
• Speed Rating: 1750 rpm
• Temperature Rating: -25 to -40 deg F Evaporator, 65 deg F Return Gas
• Liquid Line Size: 3/8"F
• Frequency: 60Hz
• Electrical: 115-1-60
• Application: Refrigeration
• Body Type: KA
