Copeland FPAK-010Z-CFV-072 Refrigeration Condensing Unit 1 HP

Product Description

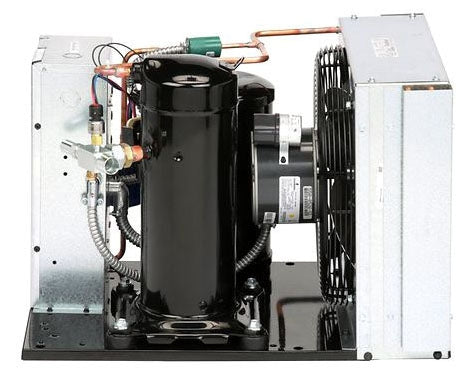

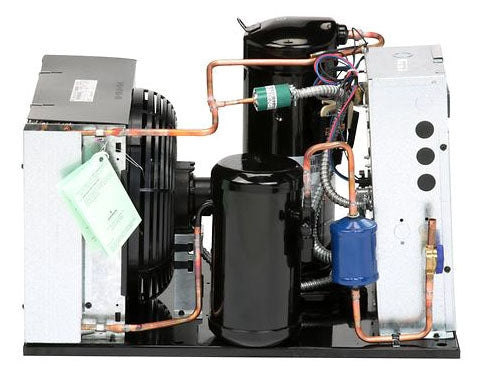

The COPELAND FPAK-010Z-CFV-072 is an air-cooled hermetic condensing unit with a scroll compressor, suitable for high, medium, and low-temperature refrigeration applications. It operates on 208-230 VAC at 60 Hz. This unit is designed for indoor use and utilizes R-134a and R-404A refrigerants.

• Air-cooled steel base for effective heat dissipation.
• Scroll compressor technology ensures efficient operation.
• Internal inherent protection safeguards the compressor motor.

Product Highlights

This condensing unit offers reliability, high energy efficiency, and low sound and vibration for various refrigeration needs.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: FPAK-010Z-CFV-072
• Country of Origin: USA

Technical Specifications

• Amps: 0.85
• Application Temperature: Medium/High Temperature
• Base: Air-Cooled Steel Base
• Brand: Copeland
• Compressor HP: 1 HP
• Condenser Location: Indoor
• Condenser Motor Type: CSCR - (Capacitor Start Capacitor Run)
• Condenser Type: Air-Cooled
• Cycle/Hertz: 60 Hz
• Full Load Amps: 13.7
• Liquid Line Size: 3/8 Inch Sweat
• OPT Code: FPAK010ZCFV072
• Phase: Single
• Prop 65: Yes
• Protection: Internal Inherent
• Rated Load Amps (RLA): 10
• Refrigerant: R-134a; R-404a
• Suction Line Size: 5/8 Inch Sweat
• UL Listed: Yes
• Voltage: 208-230 VAC
• Minimum Circuit Ampacity (MCA): 13.7
• Compressor Type: Scroll
• Country of Origin: USA
• Cooling Capacity: 7100 BTU/Hour at 25 Deg F, 7810 BTU/Hour at 30 Deg F, 8570 BTU/Hour at 35 Deg F, 9370 BTU/Hour at 40 Deg F, 10200 BTU/Hour at 45 Deg F
• Current Rating: 10 Amp (Compressor Rated Load), 40.3 Amp (Compressor Locked Rotor)
• Frequency Rating: 60 Hertz
• Number Of Phases: 1
• Operating Temperature: 90 Deg F
• Power Rating: 1 HP
• Series/Model: F-Line
• Type: Air Cooled, Scroll Compressor
• UNSPSC Code: 40101704
• Voltage Rating: 208/230 Volt AC
• Material: Steel
• Oil Type: POE
• Flow Rate: 650 cfm
• Fuse Size: 20 A
• EER Rating: 8.9
• Manufacturer: Emerson Electric
• Refrigerant Type: R-134a, HFC
• Temperature Rating: 90 deg F
• Electrical Connection: BX Conduit
• Circuit Amperage Rating: 13.7 A
• Connection Liquid (In.): 3/8 S
• Connection Suction (In.): 5/8 S
• Connection Type: ODS
• Hertz: 60
• Horsepower: 1
• Maximum Fuse / Breaker Size (Amps): 20
• MCA (Amps): 13.7
• Oil: Polyol Ester
• Receiver Capacity 90 % Full (Lbs.): 7.4 (R134a) 6.3 (R404A)
• Receiver Included: Yes
• Nominal Capacity: 7.4 lb
