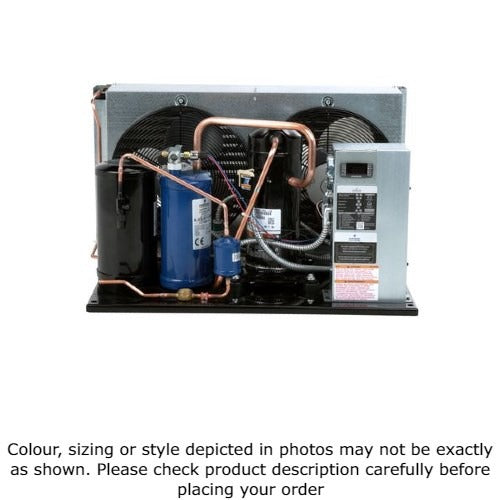

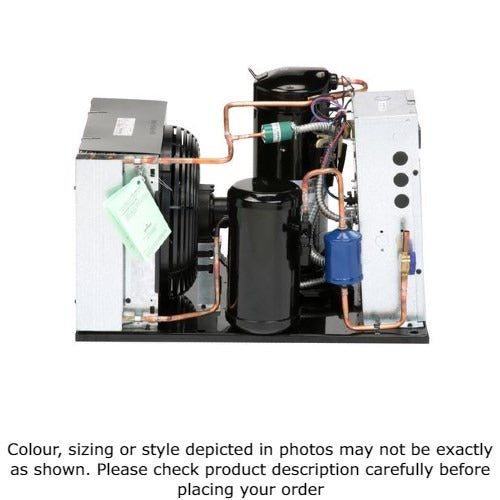

Copeland FFAP-A40Z-TFC-072 Scroll Condensing Unit 4HP

Product Description

The COPELAND FFAP-A40Z-TFC-072 is a 4 HP extended-temperature, air-cooled scroll indoor condensing unit designed for commercial refrigeration applications. Built around the ZS26KAE scroll compressor, it operates on 208-230 volts, 3-phase, 60 Hz power and delivers up to 29,700 BTU/h at 20 degrees F SST with R404A refrigerant at 90 degrees ambient. The unit ships with an accumulator, filter drier, receiver with valve, moisture indicator, and pressure controls already included, reducing field assembly time. Two condenser fans move up to 4,240 CFM of airflow across the air-cooled condenser. It weighs 247 pounds and is manufactured by Copeland Canada.

This condensing unit is rated for both medium-temperature and extended-temperature applications, making it suitable for walk-in coolers, walk-in freezers, and commercial refrigeration systems where low suction temperatures are encountered. The unit is designed for indoor installation and is compatible with multiple refrigerants including R134A, R404A, R407A, R407C, R448A, R449A, and R507, giving service contractors flexibility during system design or retrofit work. Liquid line connection is 1/2 inch sweat and suction line connection is 1-1/8 inch sweat. Minimum circuit ampacity is 23.00 amps with a maximum fuse rating of 30.00 amps.

Key Features

• ZS26KAE scroll compressor rated at 4 HP with internal inherent motor overload protection
• Multi-refrigerant compatible: R134A, R404A, R407A, R407C, R448A, R449A, R507
• Factory-installed accumulator, filter drier, receiver with valve, moisture indicator, and pressure controls
• Dual condenser fans with maximum airflow of 4,240 CFM
• Polyolester (POE) oil system with 34 oz oil charge
• Annual Walk-In Energy Factor (AWEF) compliant

Compatibility

Rated for medium-temperature and extended-temperature refrigeration applications. Compatible refrigerants include R134A, R22, R404A, R407A, R407C, R448A, R449A, and R507. Designed for indoor installation as an air-cooled condensing unit in commercial refrigeration systems.

Installation Notes

Installation should be performed by a licensed refrigeration or HVAC technician familiar with commercial refrigeration systems and applicable local codes. Isolate and de-energize the unit before making electrical or refrigerant connections. Suction and liquid line connections are sweat-type and require standard refrigeration brazing practices with proper nitrogen purge to prevent oxidation. Verify refrigerant compatibility and system design parameters before commissioning, and follow all EPA Section 608 regulations for refrigerant handling.

Technical Specifications

• Compressor Horsepower: 4 HP
• Compressor Model: ZS26KAE
• Compressor Design: Scroll
• 20 F SST Capacity at 90 Degrees Ambient (R134A): 18,900 BTU/h
• 20 F SST Capacity at 90 Degrees Ambient (R404A): 29,700 BTU/h
• 20 F SST Capacity at 90 Degrees Ambient (R407A): 27,500 BTU/h
• 20 F SST Capacity at 90 Degrees Ambient (R407C): 26,500 BTU/h
• 20 F SST Capacity at 90 Degrees Ambient (R448A): 27,200 BTU/h
• 20 F SST Capacity at 90 Degrees Ambient (R449A): 27,200 BTU/h
• Voltage: 208-230 volts, 3-phase, 60 Hz
• Compressor Rated Load Amps: 15.50 amps
• Compressor Locked Rotor Amps: 93.00 amps
• Minimum Circuit Ampacity: 23.00 amps
• Maximum Fuse Amps: 30.00 amps
• Liquid Line Connection: 1/2 inch sweat
• Suction Line Connection: 1-1/8 inch sweat
• Condenser Style: Air-Cooled
• Fan Motor Quantity: 2
• Maximum Airflow: 4,240 CFM
• Cabinet Height: 26.65 inches
• Cabinet Length: 44.06 inches
• Cabinet Width: 28.26 inches
• Weight: 247 pounds
• Chassis Material: Steel
• Oil Type: Polyolester (POE)
• Oil Recharge: 34 oz
• Compatible Refrigerants: R134A, R22, R404A, R407A, R407C, R448A, R449A, R507
• Application Temperature: Medium Temperature, Extended Temperature
• Motor Design: General 3 Lead Single Voltage
• Motor Overload Protection: Internal Inherent
• Options Included: Accumulator, Conduit, End Covers, Fan Guard, Filter Drier, Moisture Indicator, Pressure Controls, Receiver with Valve, Suction Valve
• Certifications: Annual Walk-In Energy Factor (AWEF) Compliant
• Manufacturer: Copeland Canada

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: FFAP-A40Z-TFC-072
