Product Description

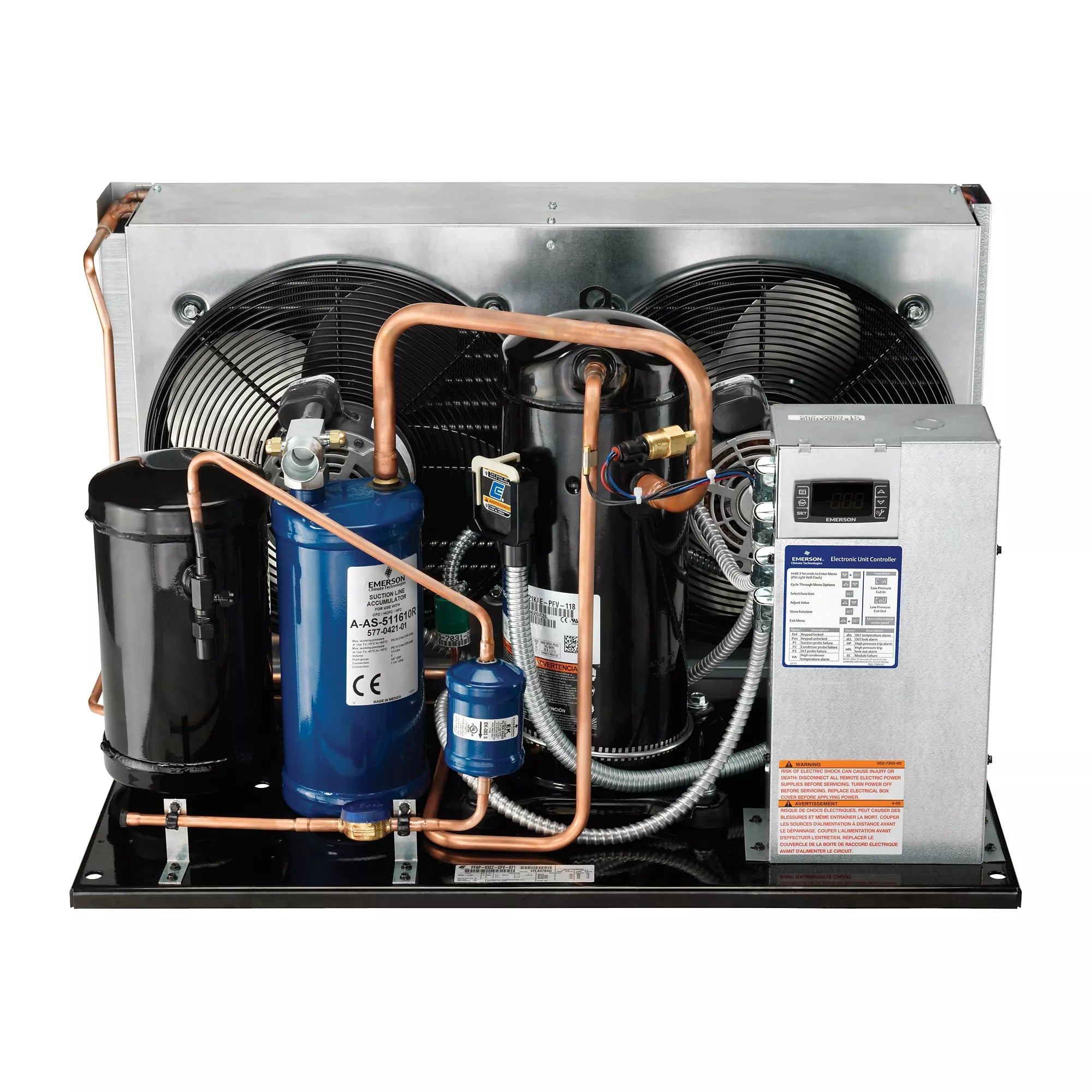

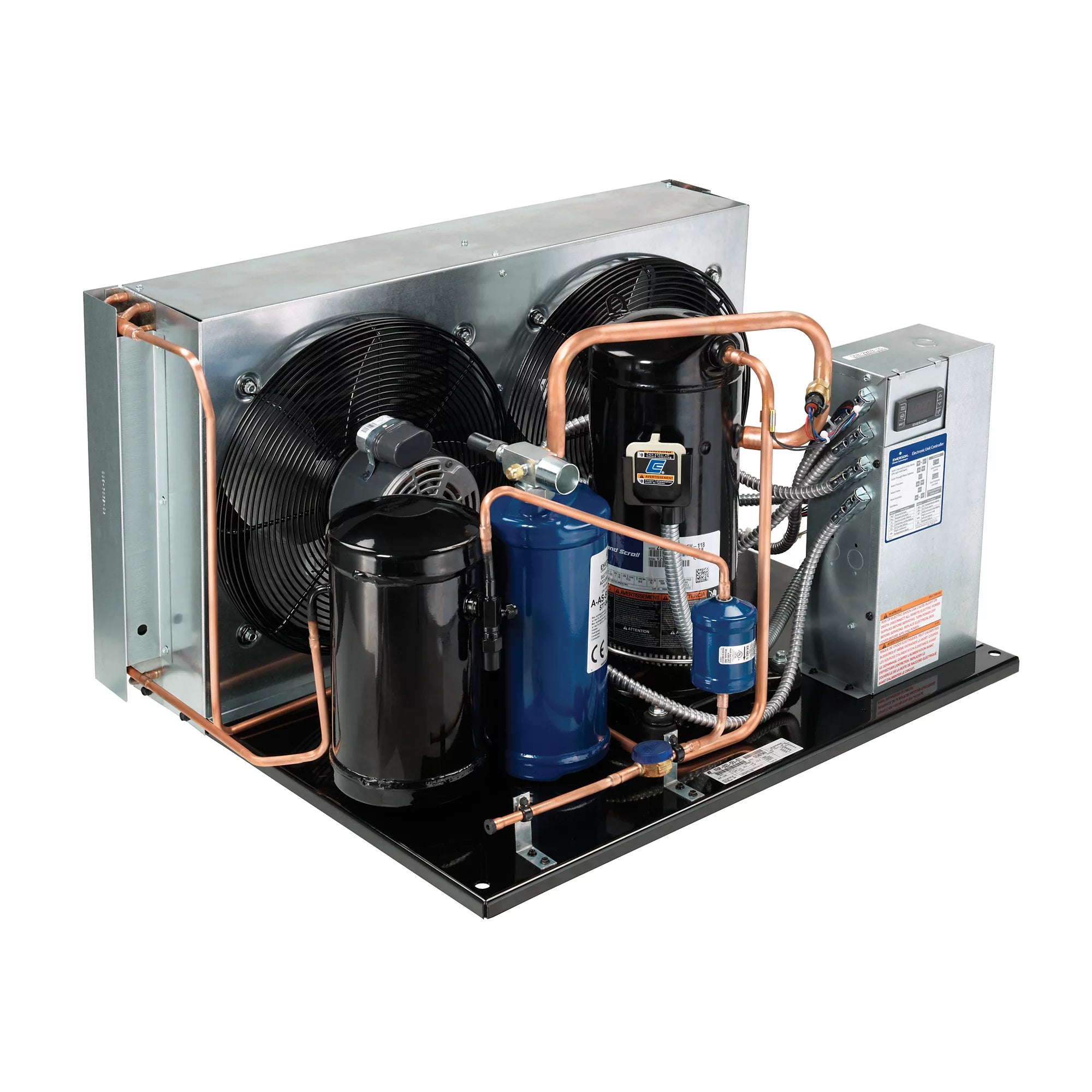

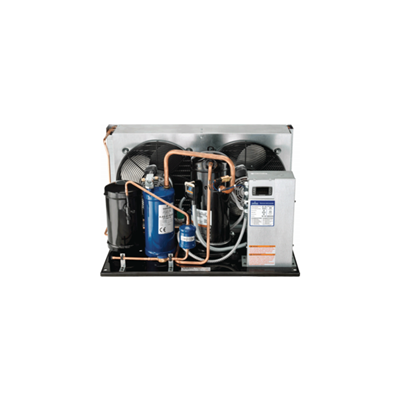

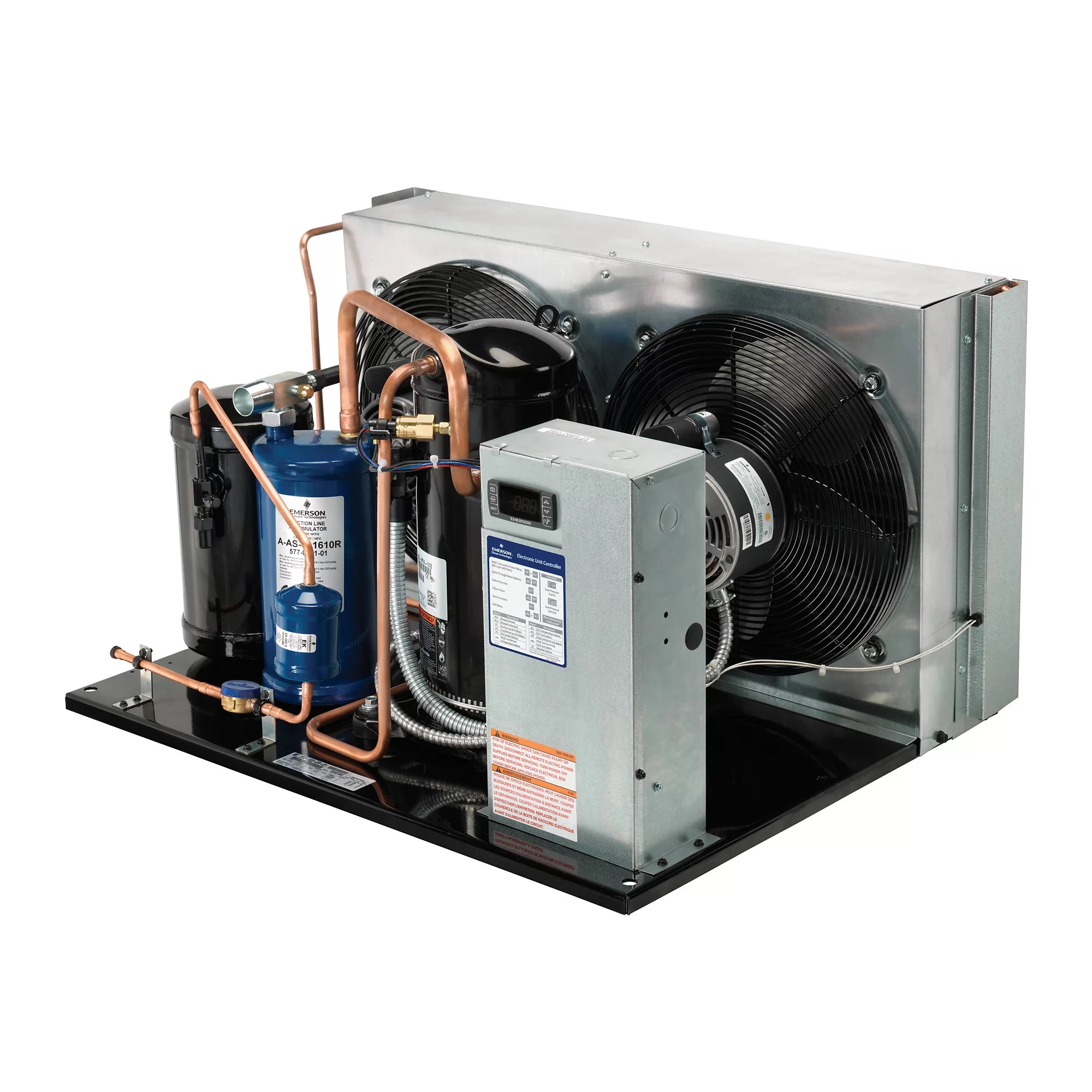

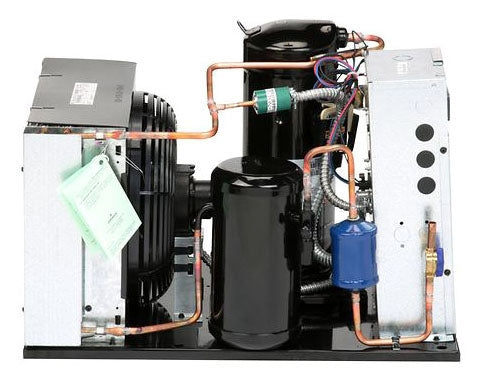

The Copeland FFAP-A30Z-CFV-072 Scroll Condensing Unit offers performance and flexibility. This unit features Copeland Scroll technology and an electronic unit controller for quick installation. It provides up to 15% improvement over comparable reciprocating units and has a wide operating envelope for various cooling applications. It is multi-refrigerant capable (R-404A, R-134a, R-407A, R-407C,R-22).
- Proven Copeland Scroll technology
- Electronic Unit Controller for quick and accurate installation
- Up to 15% improvement over comparable reciprocating units
Product Highlights
The Copeland FFAP Scroll Condensing Unit delivers performance, efficiency, and flexibility for diverse refrigeration needs.
Product Information
Standard Information
-
Brand: COPELAND
-
Manufacturer Part Number: FFAP-A30Z-CFV-072
-
Country of Origin: USA
Technical Specifications
-
Amps: 18
-
Application Temperature: Low/Medium/High Temperature
-
Base: Air Cooled Steel 13.6 x 10.8
-
Brand: Copeland
-
Compressor HP: 3 HP
-
Condenser Location: Indoor
-
Condenser Motor Type: CSCR - (Capacitor Start Capacitor Run)
-
Condenser Type: Air-Cooled
-
Cycle/Hertz: 60 Hz
-
Energy Star Rated: No
-
Full Load Amps: 18
-
Liquid Line Size (OD): 3/8"
-
OPT Code: FFAPA30ZCFV072
-
Phase: Single
-
Protection: Internal Inherent
-
Rated Load Amps (RLA): 18
-
Refrigerant: R-134a; R-22; R-404A; R-407A; R-407C; R-448A; R-449A
-
Suction Line Size (OD): 7/8"
-
UL Listed: Yes
-
Voltage: 208-230 VAC
-
Minimum Circuit Ampacity (MCA): 25.3
-
Compressor Type: Scroll
-
Country of Origin: USA
-
Cooling Capacity: 4800 to 29600 BTU/Hour
-
Cooling Coefficient: 8.172
-
Frequency Rating: 50/60 Hertz
-
Number Of Phases: 1
-
Power Rating: 3 HP
-
Series/Model: FFAP
-
Additional Information: Refrigerant Line Size 3/8 Inch (Liquid), 7/8 Inch (Suction); Refrigerant Type R-(No Suggestions)/R-22/R-404A/R-407A/R-407C/R-448A/R-449A/R-507; Application Walk-Ins, Reach-Ins, Display Case, Air Dryer
-
Catalog Number: FFAP-A30Z-CFV-072
-
Horsepower: 3
-
Shipping Weight (Lbs.): 174.00
-
CFM: 2170
-
Compressor: ZS19KAE-PFV-118
-
Connection Liquid (In.): 3/8 S
-
Connection Suction (In.): 7/8 S
-
Connection Type: ODS
-
Features: Receiver with valve, suction valve, fan guard, conduit, pressure controls, drier/sightglass
-
Hertz: 60
-
Maximum Fuse / Breaker Size (Amps): 40
-
Oil: Polyol Ester
-
Receiver Capacity 90 % Full (Lbs.): 15.5
-
Receiver Included: Yes
-
Application: Low Temp, Medium Temp
-
Vendor Name: Copeland
-
URI Part Number: FFAPA30ZCFV072
-
Vendor Part Number: FFAP-A30Z-CFV-072
-
Chassis Body Style: Standard
-
Certifications: Annual Walk-In Energy Factor (AWEF) Compliant
-
20 F SST Capacity (Btu/Hr) @ 90 Degrees Ambient: 12,001 to 13,000, 17,001 to 18,000, 18,001 to 19,000, 19,001 to 20,000, 20,001 to 21,000
-
20 F SST Capacity (Btu/Hr) @ 90 Degrees Ambient (R134A): 12700
-
20 F SST Capacity (Btu/Hr) @ 90 Degrees Ambient (R404A): 19900
-
20 F SST Capacity (Btu/Hr) @ 90 Degrees Ambient (R407A): 18600
-
20 F SST Capacity (Btu/Hr) @ 90 Degrees Ambient (R407C): 17700
-
20 F SST Capacity (Btu/Hr) @ 90 Degrees Ambient (R448A): 17,400
-
20 F SST Capacity (Btu/Hr) @ 90 Degrees Ambient (R449A): 17,400
-
Chassis Material: Steel
-
Compressor Design: Scroll
-
Compressor Horsepower Rating: 3
-
Compressor Locked Rotor Amps: 75.00A
-
Compressor Rated Load Amps: 18.00A
-
Condenser Style: Air-Cooled
-
Fan Motor Quantity: 2
-
Liquid Line Size (In.): 3/8 Sweat
-
Maximum Airflow (CFM): 2170
-
Maximum Fuse Amps: 40.00A
-
Motor Design: CSCR (Capacitor Start Capacitor Run)
-
Motor Overload Protection: Internal Inherent
-
Oil Recharge (oz.): 19
-
Oil Type: Polyolester (POE)
-
Options Included: Accumulator, Conduit, End Covers, Fan Guard, Filter Drier, Moisture Indicator, Pressure Controls, Receiver with Valve, Suction Valve
-
Suction Line Size (In.): 7/8 Sweat
-
Voltage (V): 208-230/1
-
BtuH Capacity @ -10°F Evap.: 10400
-
BtuH Capacity @ -20°F Evap.: 8,330
-
BtuH Capacity @ -25°F Evap.: 7,400
-
BtuH Capacity @ -30°F Evap.: 6,550
-
BtuH Capacity @ -5°F Evap.: 11,600
-
BtuH Capacity @ 0°F Evap.: 12,900
-
BtuH Capacity @ 10°F Evap.: 15,900
-
BtuH Capacity @ 15°F Evap.: 17,500
-
BtuH Capacity @ 20°F Evap.: 19200
-
BtuH Capacity @ 25°F Evap.: 21,600
-
BtuH Capacity @ 30°F Evap.: 23,500
-
BtuH Capacity @ 35°F Evap.: 25,400
-
BtuH Capacity @ 40°F Evap.: 27,500
-
BtuH Capacity @ 45°F Evap.: 29600
-
BtuH Capacity @ 5°F Evap.: 14,300
-
Compressor #: ZS19KAE-PFV-118
-
Drier: Yes
-
Electrical Conn.: BX Conduit
-
Fan Guard: Yes
-
Liquid Conn.: 3/8" ODF
-
Max. Fuse Size: 40
-
Min. Circuit Amps: 25.3
-
Pressure Control: Dual
-
UL Rating: UL Listed
-
Volts: 208-230
