Product Description

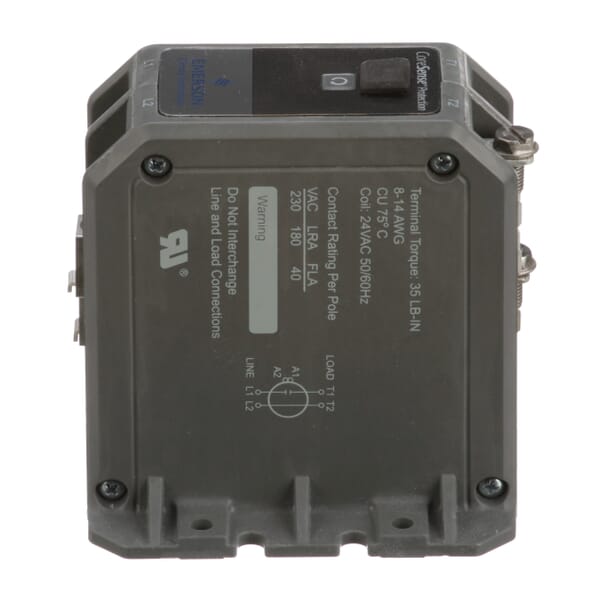

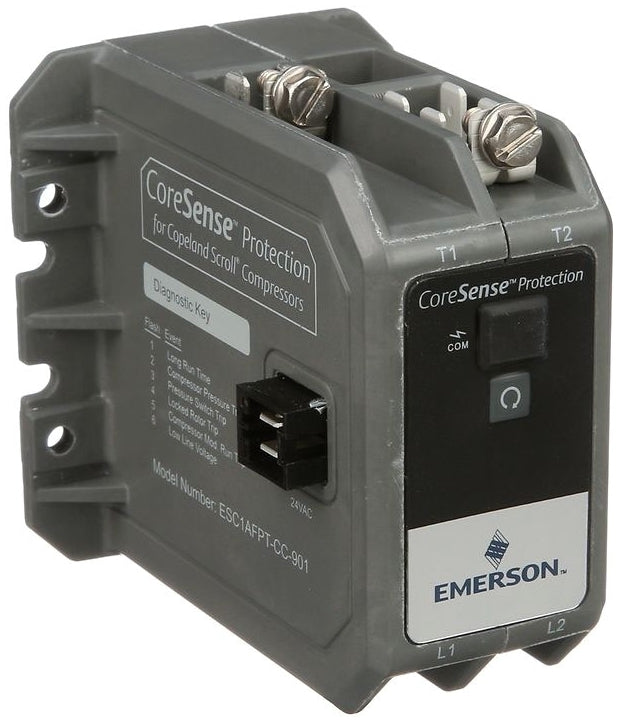

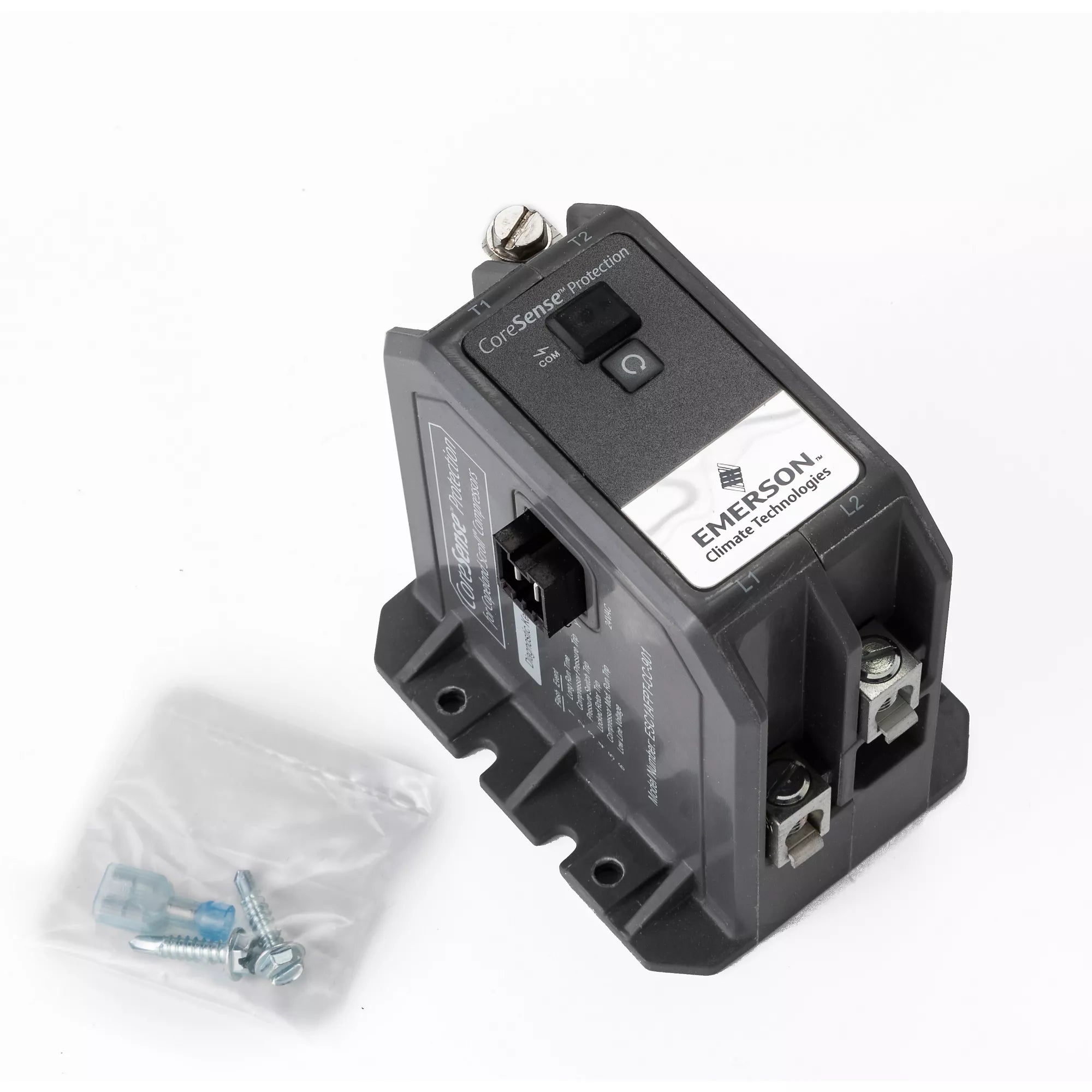

The COPELAND ESC1AFPT-CC-901 is a service contact designed for compressor protection. This module combines contactor functionality with compressor diagnostics, actively shutting down the compressor upon detecting critical faults. It maintains the same wiring as standard contactors for easy installation and aids technicians in troubleshooting system issues. For single phase, residential air conditioning and heat pump systems.
- Microprocessor controlled sealed compressor switching
- Low line voltage protection
- LED displays status and fault conditions
- Heavy duty line voltage lug connectors
Product Highlights
CoreSense protection module with compressor diagnostic and protection capabilities. It actively shuts down the compressor when critical system faults are detected.
Product Information
Standard Information
-
Brand: COPELAND
-
Manufacturer Part Number: ESC1AFPT-CC-901
-
Country of Origin: CAN
Technical Specifications
-
Amps: 40
-
Brand: Copeland
-
Coil Voltage: 208-240 VAC
-
Cycle/Hertz: 50/60 Hz
-

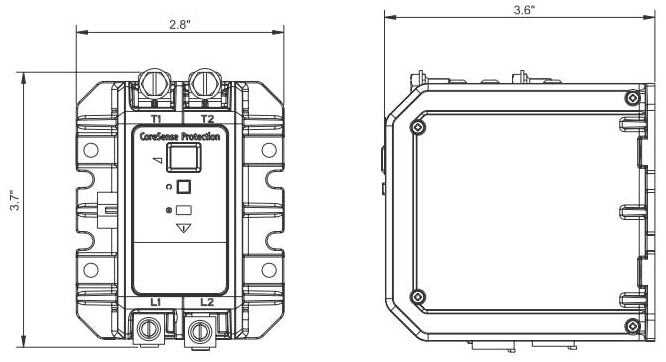

Height: 2.9
-
Length: 4.1
-
Phase: Single
-
Poles: Single
-
Switching Voltage: 208-240 VAC
-
Width: 4.3
-
Country of Origin: CAN
-
MPN: ESC1AFPT-CC-901
-
Item: Compressor Protection Module
-
Brand Name: Copeland Scroll, CoreSense
-
Manufacturer Name: Copeland
-
Applicable Standard: UL
-
Terminal Designation: Y, C (24 Volt), L1, L2, T1, T2 (208/240 Volt)
-
Used On Item: Compressor
-
Additional Information: Line Voltage 208 to 240 Volt AC at 50/60 Hertz (Input); Current Rating 40 Amp (Full Load), 180 Amp (Locked Rotor)
-
Manufacturer Part Number: ESC1AFPT-CC-901
-
Application: Exclusive to Copeland Scroll compressors; Single-phase, residential applications; 1.5-5HP; 40A contactor
