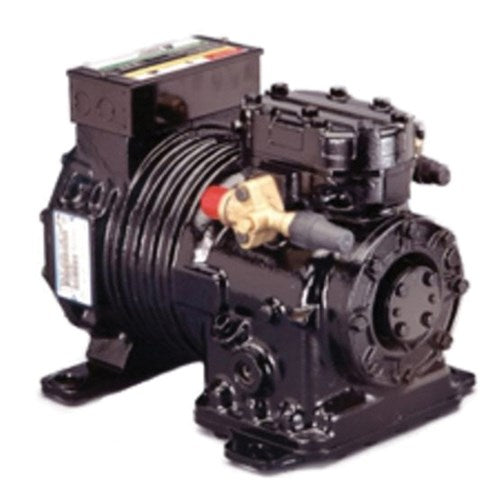

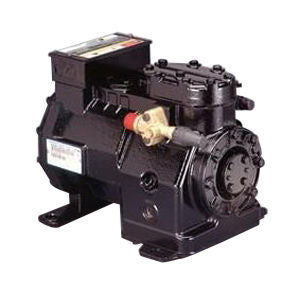

Copeland ERCA-021E-TAC-800 Aftermarket Semi-Hermetic Compressor 2 HP

Product Description

The COPELAND ERCA-021E-TAC-800 is an aftermarket semi-hermetic compressor with conventional Copelametc Compressors. It is designed for commercial refrigeration, air conditioning, and heat pump applications. The compressor features rugged construction for heavy-duty usage and is easily accessible for field maintenance. It uses Polyol Ester Oil (POE).

• Wide selection Range
• Proven Copeland Dependability
• Standard Replacement Compressors Include Oil Charge and Complete Motor Protection

Product Highlights

This semi-hermetic compressor is suitable for systems requiring full temperature range performance, including low-temperature evaporating conditions. It features an energy-efficient motor and optimized bearings for low sound and vibration.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ERCA-021E-TAC-800
• Country of Origin: USA

Technical Specifications

• Amps: 5.7-7
• Brand: Copeland
• BTU Output: 12100
• Compressor Housing: Semi-Hermetic
• Cycle/Hertz: 60 Hz
• Discharge Connection Type: Flare
• Evaporating Temperature: 20°F (-6.67°C)
• Locked Rotor Amps (LRA): 46
• Mass Flow (lbs/hr): 194 lbs./hr.; 314 lbs/hr
• Maximum Voltage: 230 VAC
• Oil Type: Mineral (MO), Polyolester (POE)
• OPT Code: ERCA021ETAC800
• Overload Type: Internal
• Phase: Three
• Prop 65: Yes
• Protection: External Inherent Protection
• Rated Load Amps (RLA): 6.6
• Refrigerant: R-404A
• Return Gas Temperature: 65°F (18.33°C)
• Suction Line Fitting Type: Sweat or Braze
• Suction Line Size: 7/8 Inch Sweat
• UL Listed: No
• Voltage: 208-230 VAC
• Minimum Circuit Ampacity (MCA): 8.8
• Country of Origin: USA
• Motor Rating: 2 HP
• Refrigerant Type: R22/R404A/R448A/R449A/R507
• Motor Type: 3-Phase
• Suction Size: 7/8 Inch Soldered
• Discharge Size: 5/8 Inch Flare
• Model Variation: A
• Applicable Standard: UL
• Series/Model: ER
• Used On Item: Medium Temperature Refrigeration
• Cylinders: 2
• Bore: 1-3/4"
• Stroke: 1.16"
• Displacement: 5.56 cu-"/Rev
• BTU: 14900
• Frequency: 60 Hz
• EER Rating: 6.2
• Power Rating: 2400 W
• Amperage Rating: 7 A
• Cooling Capacity: 14900 BtuH
• Discharge Line Size: 5/8 Inch Flared
• HP: 2
• Capacity: 6930 to 14900 Btu
• Connection Type: Sweat x Flared
