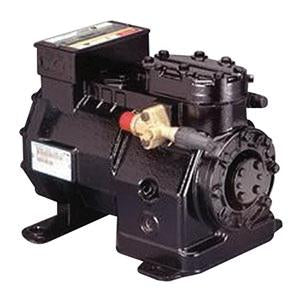

Copeland EALA-020A-TAC-800 Semi-Hermetic Compressor 2 HP (Standard Replacement EALA020ATAC800)

Product Description

The Copeland EALA-020A-TAC-800 is a semi-hermetic reciprocating compressor rated 208–230 VAC, three-phase, 60 Hz for commercial refrigeration and HVAC applications. It uses R-12 refrigerant and alkylbenzene oil with a 60 oz initial oil charge. Electrical ratings include a rated load of 7.1 A, locked rotor 46 A, and displacement of 8.64 cu-in/rev from a two-cylinder design, with 7/8 in suction and 1/2 in flare discharge connections.

• Electrical: 208–230 VAC, three-phase, 60 Hz; rated load 7.1 A, locked rotor 46 A
• Refrigeration and lubrication: designed for R-12 refrigerant; alkylbenzene oil with 60 oz initial charge (55 oz recharge)
• Mechanical: two-cylinder reciprocating design, 8.64 cu-in/rev displacement; 7/8 in suction and 1/2 in flare discharge; external inherent protection

Product Highlights

Medium-temperature semi-hermetic compressor, standard replacement model (code 800), two-cylinder 2 HP class unit for commercial refrigeration systems.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: EALA-020A-TAC-800
• Country of Origin: USA

Technical Specifications

• Brand: Copeland
• MPN: EALA-020A-TAC-800
• Compressor Type: Reciprocating, semi-hermetic
• Housing: Semi-Hermetic
• Series: EA
• Input Voltage: 208-230 VAC
• Frequency: 60 Hz
• Phase: Three
• Power (HP): 2 HP
• Power (W): 1760 W
• Refrigerant: R-12
• Oil Type: Alkylbenzene (AB)
• Oil Charge (initial): 60 oz
• Oil Recharge: 55 oz
• Rated Load Amps (RLA): 7.1 A
• Amps (running range): 5.9-7.6 A
• Locked Rotor Amps (LRA): 46 A
• Minimum Circuit Ampacity (MCA): 7.1 A
• Displacement: 8.64 cu-in/rev
• Cylinders: 2
• Bore x Stroke: 2.00 in x 1.38 in
• Suction Line Size: 7/8 in
• Discharge Connection: 1/2 in flare
• Protection: External inherent protection
• Overload Type: Internal
• Mounting Dimensions: 10.06 in x 10.50 in x 13.81 in
• Overall Dimensions: 16.69 in x 12.00 in x 12.78 in
• Weight: 172 lbs
• Mass Flow: 194 to 317 lb/hr
• Motor Speed: 2900 RPM
• Country of Origin: USA
