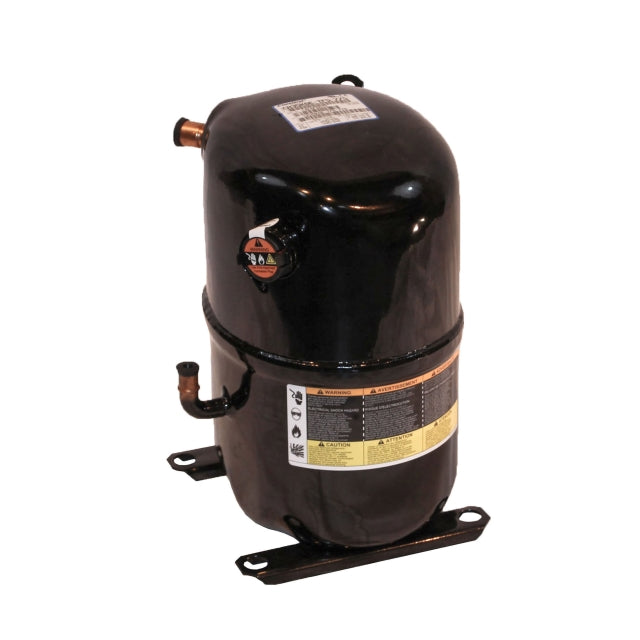

Copeland CR35K6E-TF5-775 Compressor 208/230V 3Ph R22 34,900 Btu

Product Description

The Copeland CR35K6E-TF5-775 is a reciprocating compressor designed for R-22 refrigerant. It operates at 208/230 volts with three phases. This compressor has a cooling capacity of thirty-four thousand nine hundred BTUs and a rated load amperage of eleven point four amps.

• Robust hermetic design for durability
• Integrated external line break overload protection
• Constructed for low noise operation

Product Highlights

Utilized in air conditioning systems, the CR35K6E-TF5-775 is known for its efficient performance in various HVAC applications.

Product Information

Standard Information

• Brand: Copeland
• Part Number: CR35K6E-TF5-775

Technical Specifications

• Weight: 65 lbs.
• Voltage: 200-230 VAC
• Rated Load Amps (RLA): 10.2
• Locked Rotor Amps (LRA): 75
• Evaporating Temperature: 45°F (7.22°C)
• Return Gas Temperature: 65°F (18.33°C)
• Mass Flow (lbs/hr): 510 lbs./hr.; 590 lbs./hr.
• Oil Type: Polyolester (POE)
• Compressor Type: Reciprocating
• Compressor Housing: Hermetic
• Mounting Dimensions: 7.5 x 7.5 x 14.44 inches
• Suction Line Size (OD): 3/4 inches
• Discharge Connection Size OD: 1/2 inches
• Cubic Measurement: 0.5354
• Phase: Three
• Cycle/Hertz: 60 Hz
• Protection: Internal Inherent Protection
• Refrigerant: R-22
