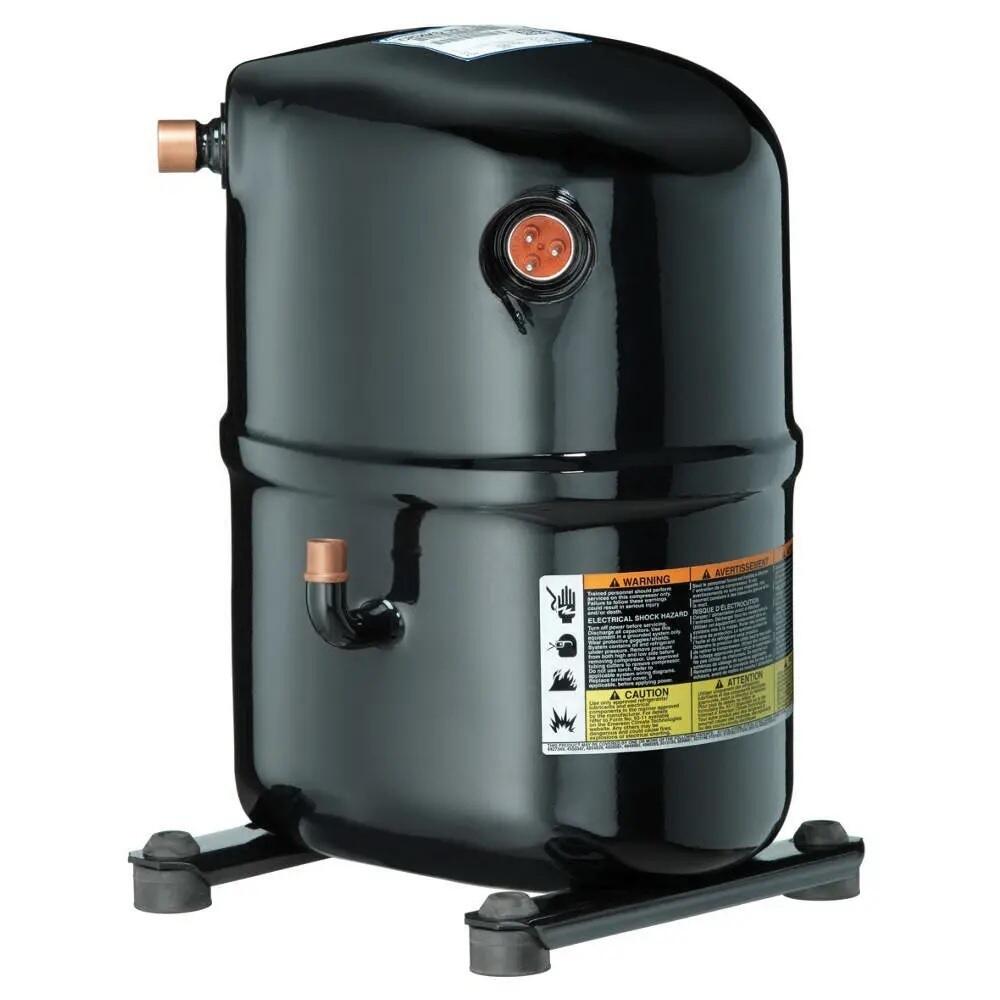

Copeland CR30K6E-PFV-925 Hermetic Compressor 2.5 Ton 30000 BTU R-22 R-404A R-407C

Product Description

The Copeland CR30K6E-PFV-925 is a hermetic compressor designed for use in air conditioning systems. This unit has a nominal capacity of two and a half tons, making it suitable for medium to large cooling applications.

• Cooling capacity range from 12800 to 37700 BTU
• Compatible with R-22, R-404A, R-407C refrigerants
• Operates efficiently with up to 10.55 EER

Product Highlights

This compressor features a sound level of 74 dBA and provides reliable performance. Its compact dimensions make it easy to install in various settings.

Product Information

Standard Information

• Manufacturer: Copeland
• MPN: CR30K6E-PFV-925

Technical Specifications

• Cooling Capacity: 22800 BTU
• Power Rating: 2570 W
• Voltage Rating: 208/230 V, 60 Hz, 1 Phase
• Amperage Rating: 12.25 A
• Suction Line Size: 3/4 Inch Stub
• Discharge Line Size: 1/2 Inch Stub
• Dimensions: 10.23 Inch L x 9.65 Inch W x 13.81 Inch H
• Mounting Type: 7.5 Inch L x 7.5 Inch W x 14.19 Inch H
