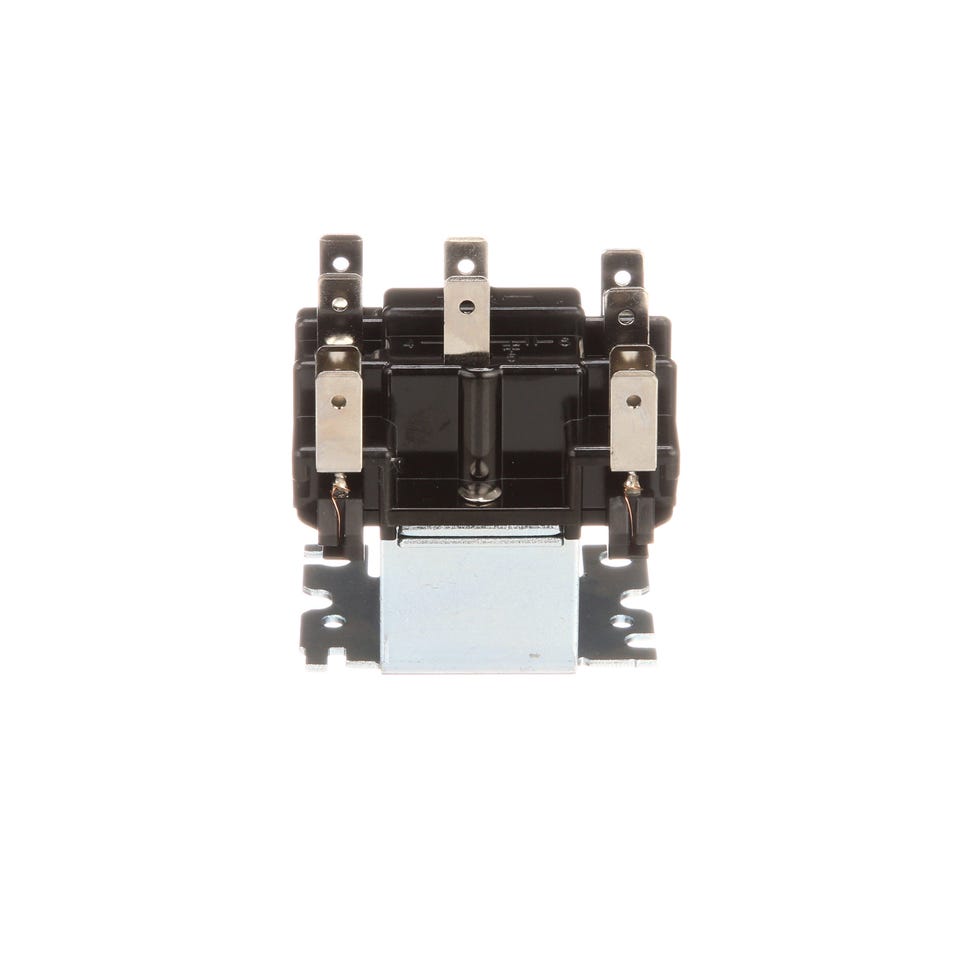

Copeland Comfort Control 90-340 Power Relay

Product Description

The Copeland Comfort Control 90-340 is a power relay ideal for electrical control and switching tasks. This relay utilizes a double pole double throw (DPDT) contact type, enabling efficient management of two separate circuits. It is powered by a coil voltage of twenty-four VAC and features a DC resistance of seventeen point five Ohms. The unit operates with a coil current of three hundred thirty-four mA and maintains a nominal VA of nine point five, with an inrush VA of twenty-two.

• Operates on a twenty-four VAC coil voltage.
• Features DPDT contact type for versatile switching.
• Provides contact ratings of twelve FLA/sixty LRA at one hundred twenty-five VAC.

Product Highlights

This power relay is suitable for various applications and supports reliable circuit control.

Product Information

Standard Information

• Item Number: 90-340
• Brand: Copeland Comfort Control (White Rodgers)

Technical Specifications

• Coil Voltage: 24 VAC
• Contact Type: DPDT
• DC Resistance: 17.5 Ohms
• Coil Current: 334 mA
• Nominal VA: 9.5 VA
• Inrush VA: 22 VA
• Contact Ratings @ 125 VAC: 12FLA / 60LRA
• Contact Ratings @ 250 / 277 VAC: 6FLA / 35LRA
• Contact Ratings @ 277 VAC RES: 15A
• Contact Ratings @ 125 / 250 VAC: 1/2HP
