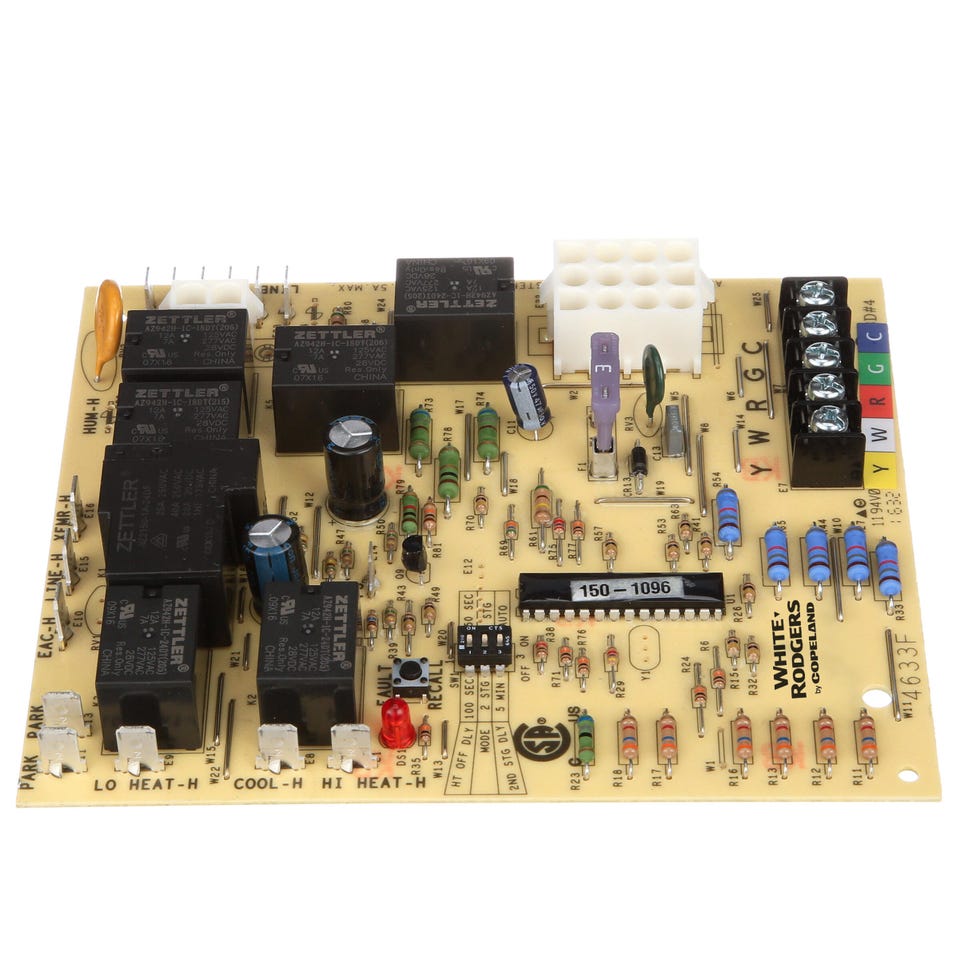

Copeland Comfort Control 50M56-743 Furnace Control Board

Product Description

The Copeland Comfort Control 50M56-743 is a furnace control board specifically designed for multi-speed integrated heating systems. It operates essential furnace components including the gas valve, ignitor, blower, inducer, and air cleaner. This board is compatible as a replacement for OEM Goodman and White-Rodgers models.

• Manages gas valve, ignitor, blower, inducer, and air cleaner.
• Features a system diagnostic LED with fault recall function.
• Supports both one and two-stage gas valve systems.

Product Highlights

This control board simplifies maintenance and enhances performance in furnace systems. The built-in diagnostic LED helps identify issues for quick resolutions.

Product Information

Standard Information

• Vendor Name: Emerson Retail Solutions
• URI Part Number: 50M56743

Technical Specifications

• Vendor Part Number: 50M56-743
• Shipping Weight: 1.00 lbs.
• Input Voltage: 25 VAC 50 / 60 Hz
• Pre-purge Time: 30 seconds
• Post-purge Time: 15 seconds
