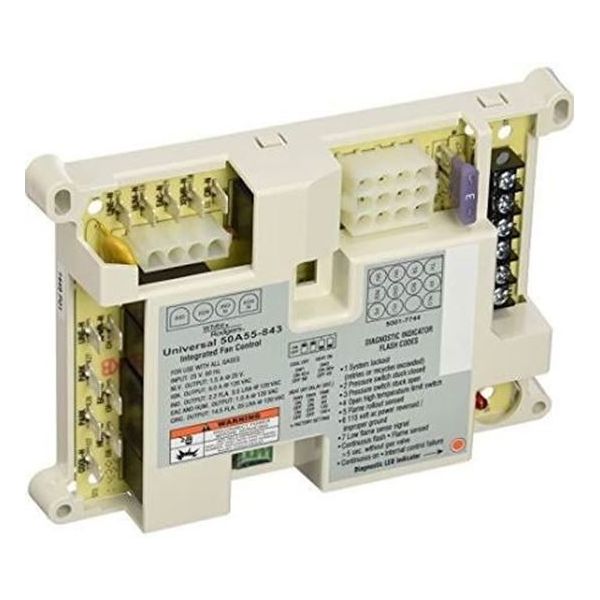

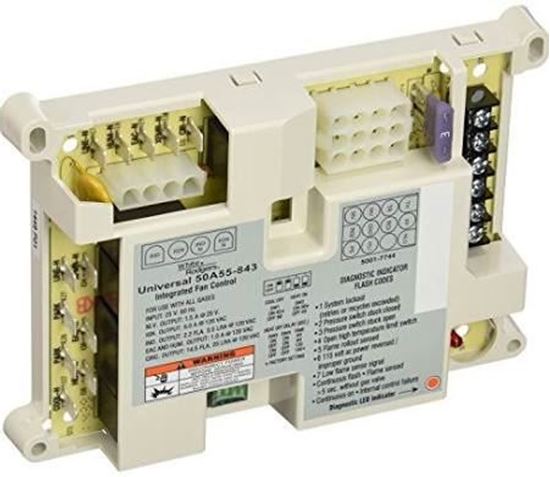

Copeland Comfort Control 50A55-843 Universal Ignition Module

Product Description

The Copeland Comfort Control 50A55-843 is a universal ignition module used in heating and cooling systems. This module replaces the 50A50-241 model and helps control the gas burner, inducer, and fan with precision using its built-in microprocessor.

• Compatible with various heating and cooling applications
• Includes comprehensive wiring kit for easy installation
• Features diagnostic flash codes for effective troubleshooting

Product Highlights

The ignition module operates at twenty-four volts with a silicon carbide ignitor for reliable ignition.

Product Information

Standard Information

• Brand: Copeland Comfort Control (White Rodgers)
• Manufacturer Name: Emerson Climate-White Rodgers

Technical Specifications

• Input Voltage: 24 VAC
• Maximum Input Current: 0.45 amp
• Valve Relay: 1.5 amp @ 25 VAC
• Ignitor Relay: 6.0 amp @ 120 VAC
• Inducer Relay: 2.2 FLA - 3.5 LRA @ 120 VAC
• Circulator Relay: 14.5 FLA - 25.0 LRA @ 120 VAC
• Operating Temperature Range: -40°F to +175°F
• Humidity Range: 5% to 93% relative humidity
