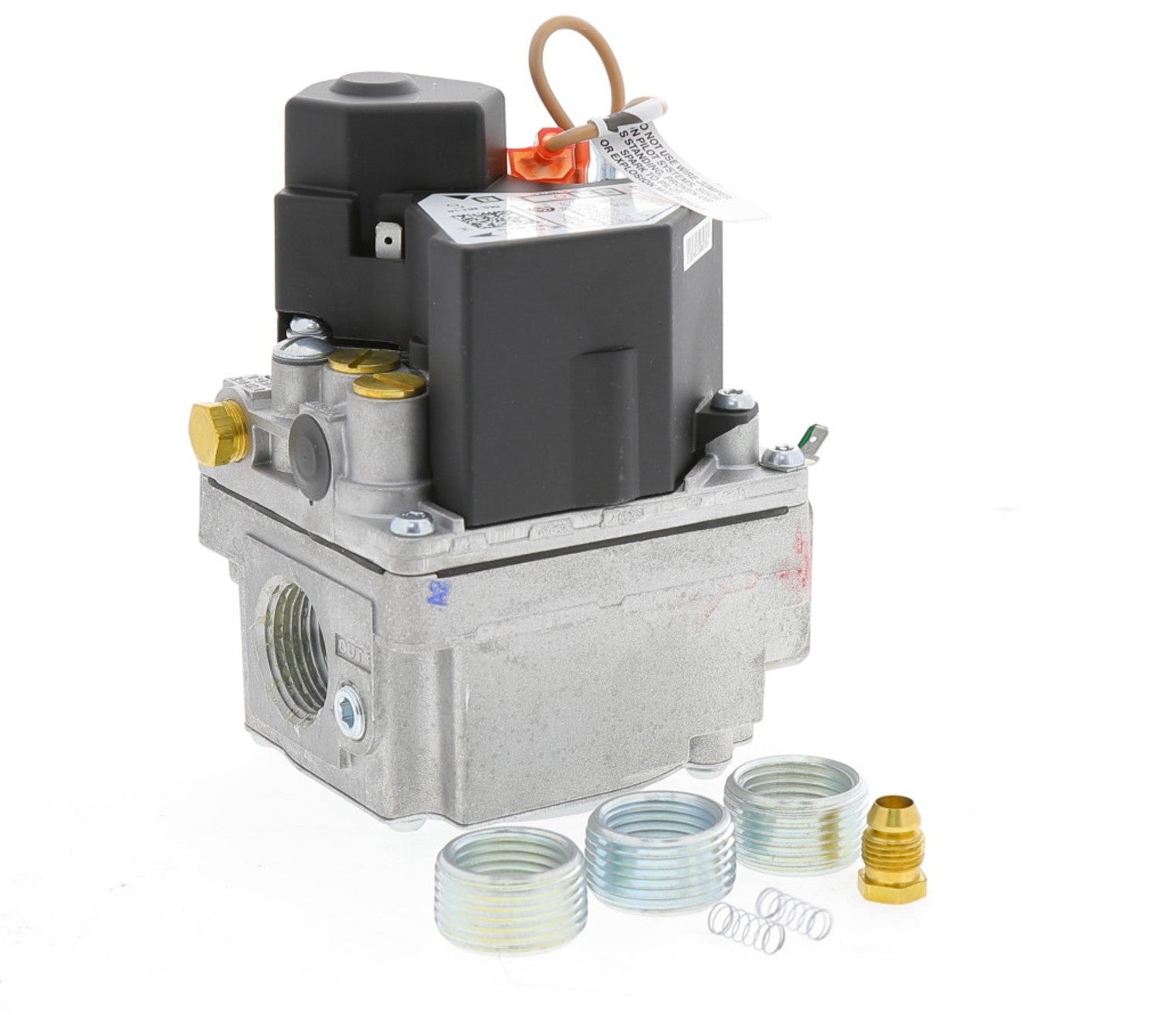

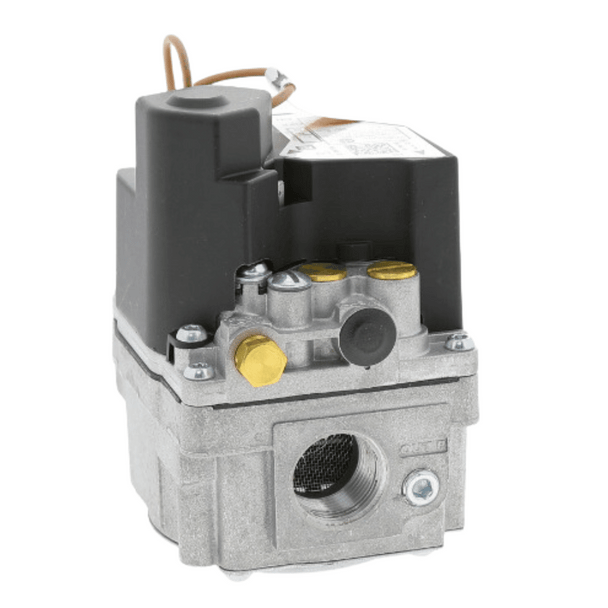

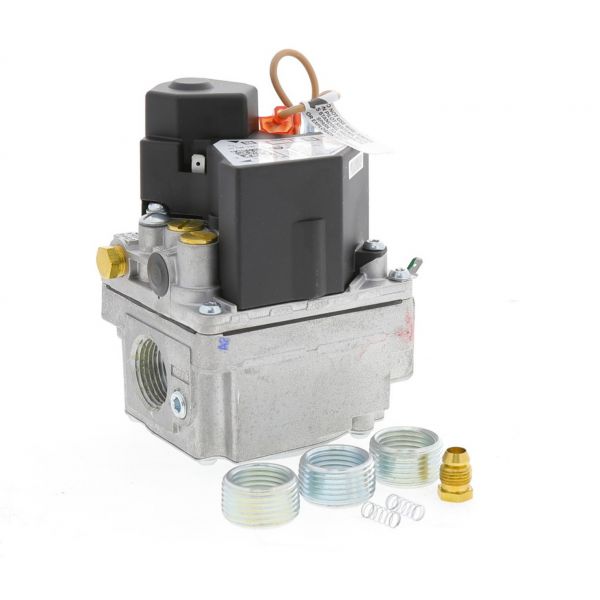

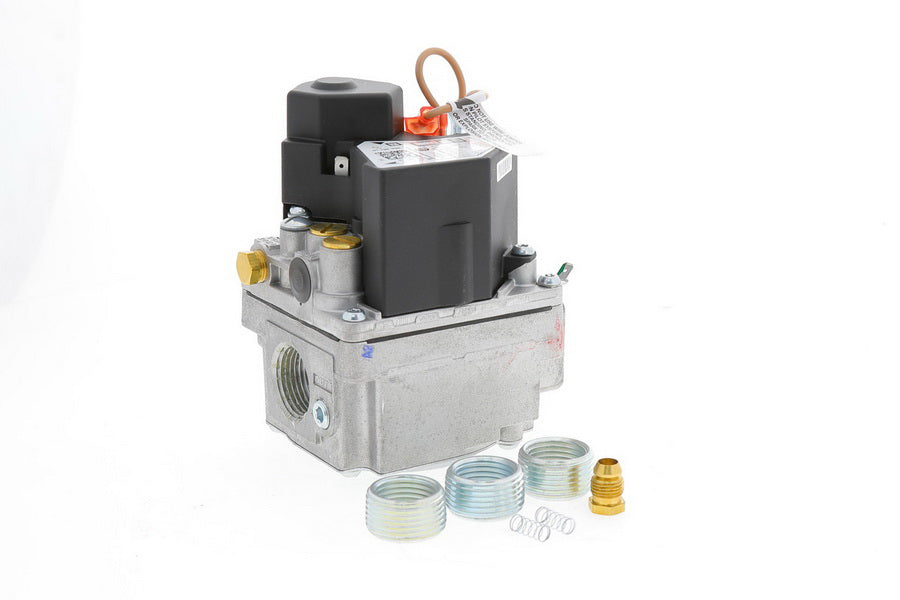

Copeland Comfort Control 36H64-463 2-Stage Gas Valve

Product Description

The Copeland Comfort Control 36H64-463 is a two-stage gas valve designed for natural gas and LP applications. This valve operates on a twenty-four volt power supply and is equipped with a three-quarter inch NPT connection for both inlet and outlet. It includes an adjustable pressure regulator set at one-half PSI for effective gas flow management.

• Supports temperatures from minus forty degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit.
• Meets operational needs for both 50 Hertz and 60 Hertz frequencies.
• Designed to replace the S1-36C76-450 model and boasts a maximum regulatory capacity of three hundred thousand BTU.

Product Highlights

This valve is ideal for HVAC professionals who require reliable gas flow control in various heating systems.

Product Information

Standard Information

• Brand: Copeland Comfort Control (White Rodgers)
• Weight: 2.67 lbs

Technical Specifications

• Item Number: 36H64-463
• Voltage: 24V
• Gas Type: Natural Gas, LP
• Inlet/Outlet Size: 3/4 inch
• Stages: Two-stage
• Pressure Regulator: 1/2 PSI
• Temperature Range: -40°F to 175°F
• Connection Type: NPT
• Frequency: 50/60 Hz
• Maximum Regulatory Capacity: 300,000 BTU
