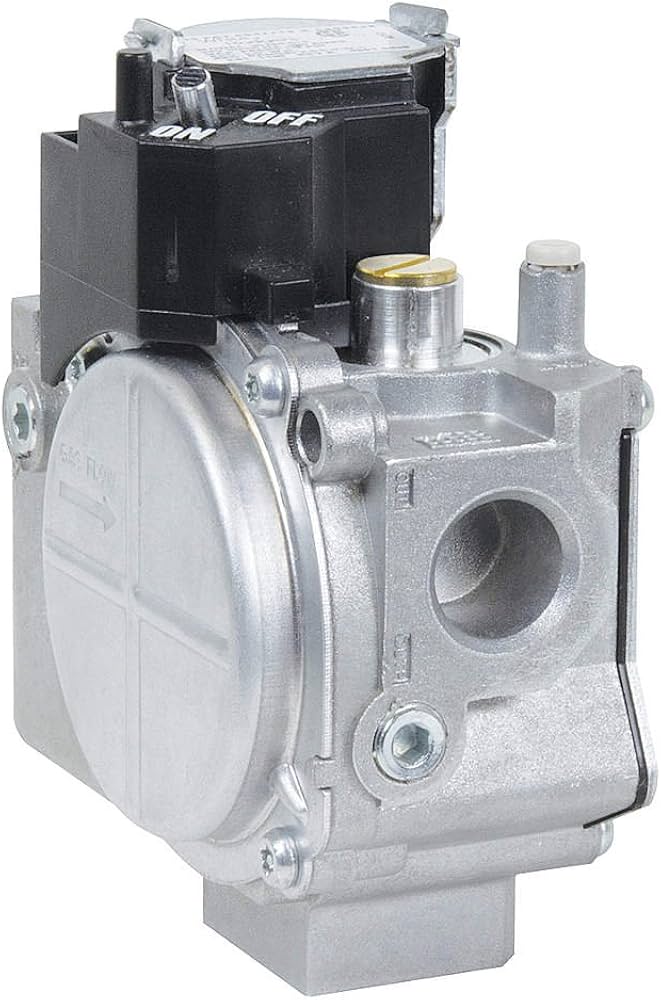

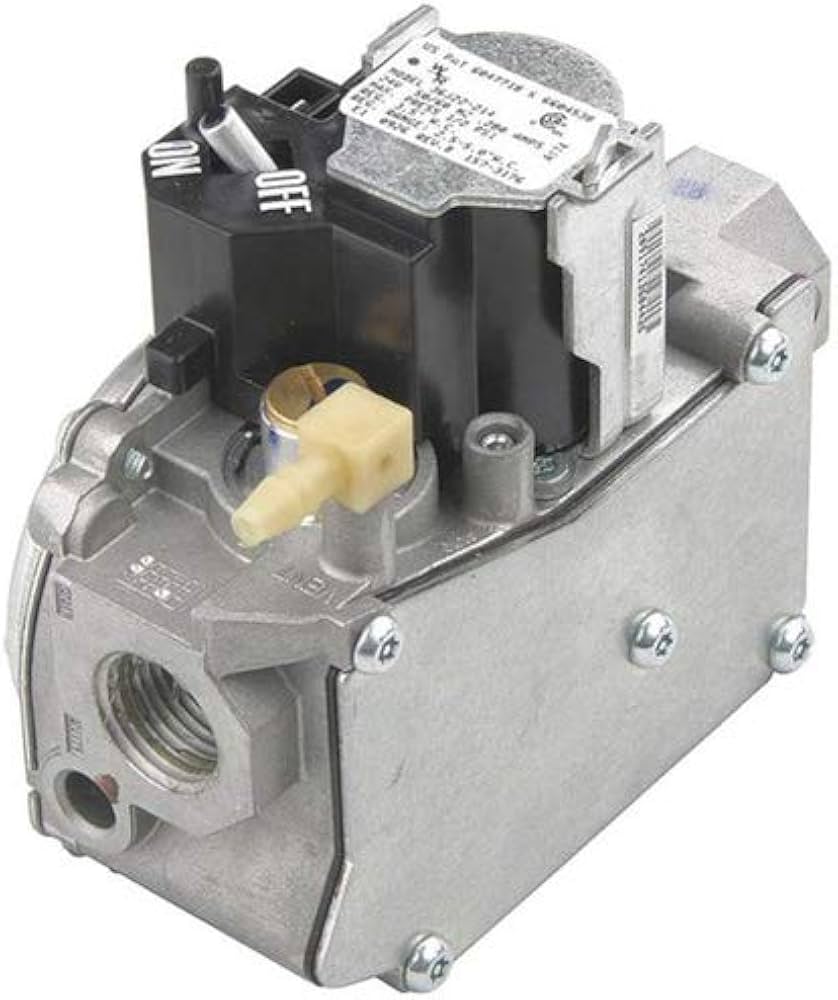

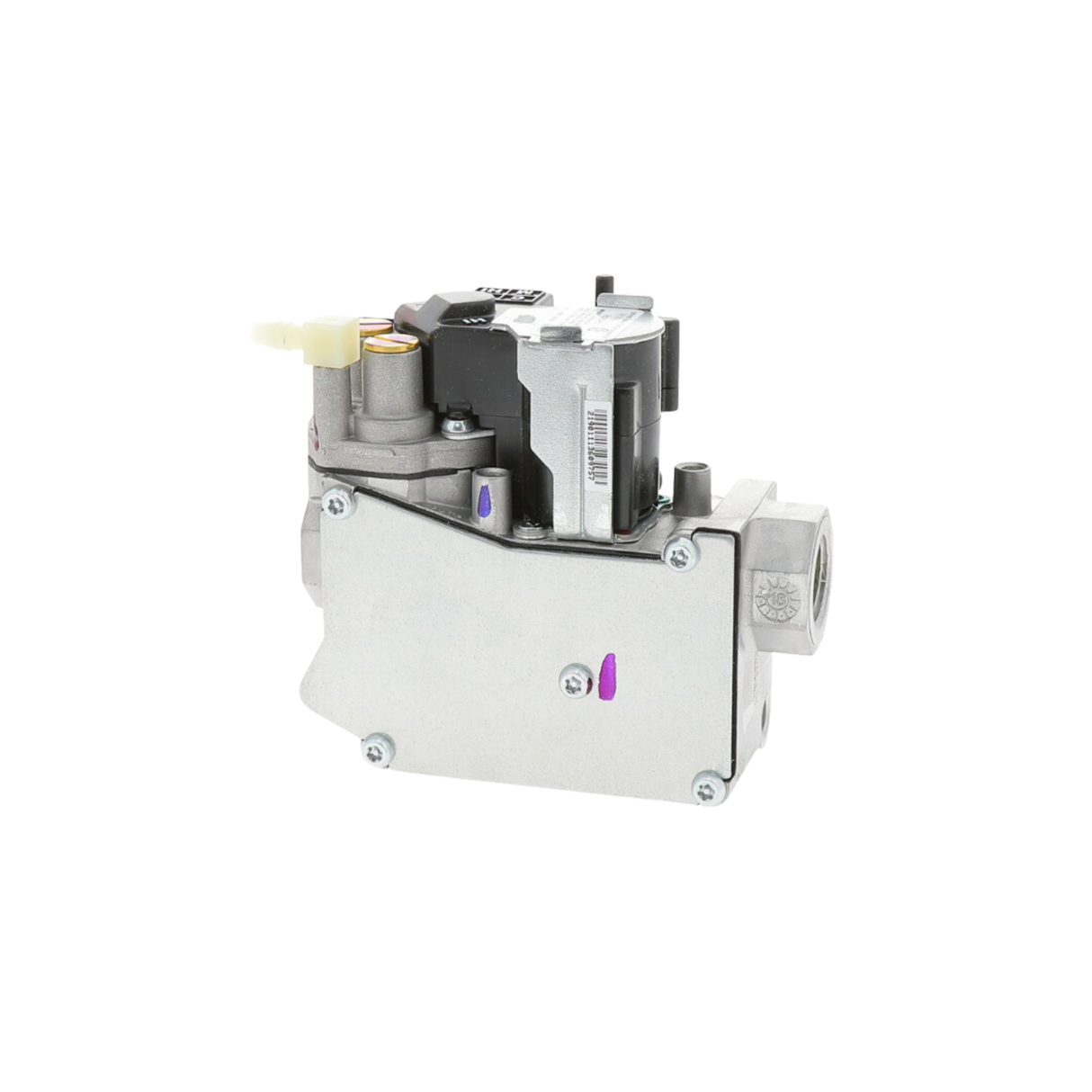

Copeland Comfort Control 36G55-214 Gas Valves

Product Description

The Copeland Comfort Control 36G55-214 gas valve is suitable for hot surface and direct spark ignition systems. It has a compact design and versatile use. This model is slow-opening and features two stages with an electric on-off switch. Quick-connect coil terminals and built-in pressure taps enhance functionality. Designed to prevent tampering with screws and features controlled gasket compression for high inlet pressures. It can be installed in various positions, including upside down and is CSA approved.

• Designed for hot surface and direct spark ignition systems
• Compact footprint and versatile design
• Electric on-off switch with quick connect coil terminals

Product Highlights

This valve is ideal for HVAC professionals needing reliable gas control solutions.

Product Information

Standard Information

• Brand: Copeland Comfort Control
• Manufacturer Part Number: 36G55-214

Technical Specifications

• Product Type: Gas Valves
• Voltage Rating: 24 V
• Frequency Rating: 50/60 Hz
• Pipe Size: 1/2 x 1/2
• Ambient Temperature: -40 to 175°F
• Pressure Rating: 14 W.C. (1/2 PSI) max
• Current: 0.430 amps
