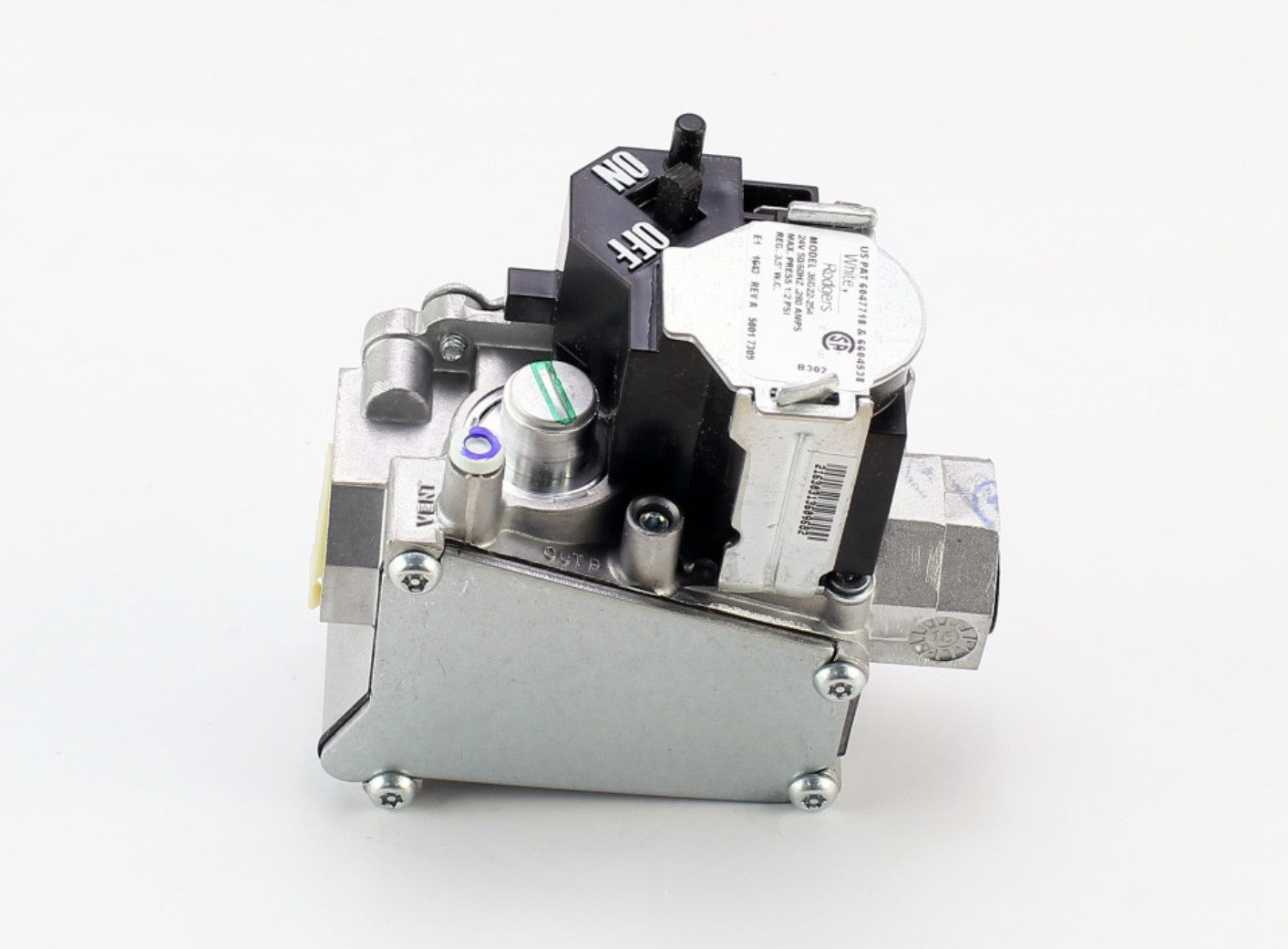

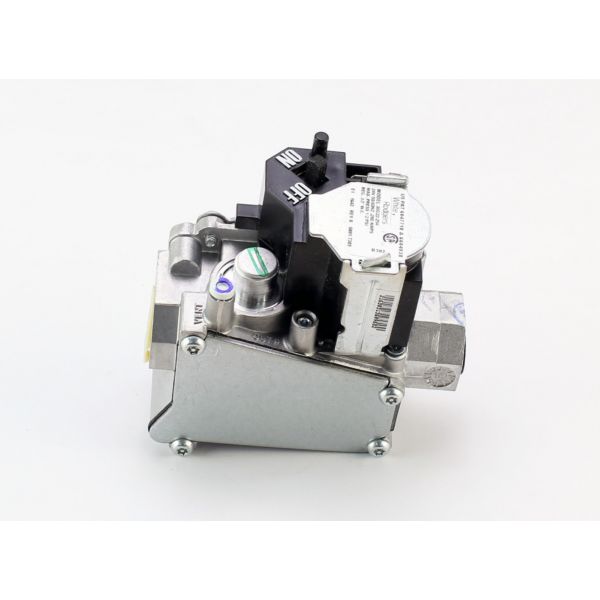

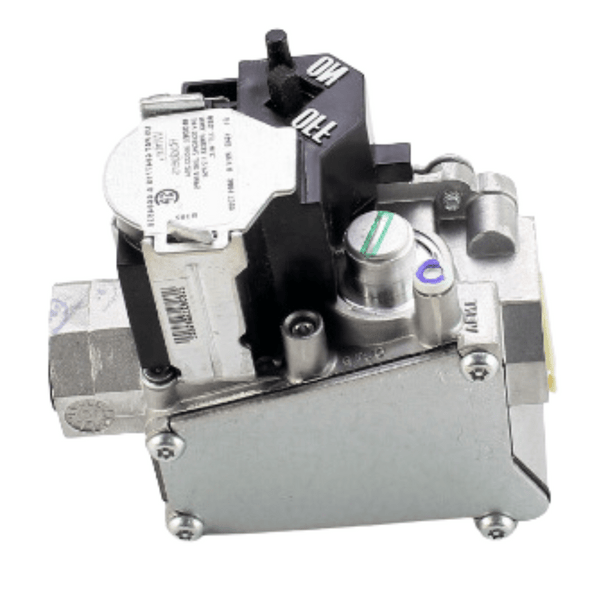

CopeLand Comfort Control 36G22-254 Natural Gas Valve - 1/2 Inch

Product Description

The CopeLand Comfort Control 36G22-254 is a natural gas valve designed for 24V systems. This valve has a size of one-half inch and is suitable for residential gas furnaces. It effectively regulates natural gas flow to the burners, which supports efficient furnace operation.

• Operates at 24 volts with an electronically controlled solenoid.
• Regulates gas flow up to 0.5 psi for optimized burner performance.
• Designed for residential gas furnace applications, handling up to 140000 BtuH.

Product Highlights

This gas valve ensures proper gas regulation, enhancing furnace operation while minimizing energy use. It can operate in extreme temperatures from minus forty degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit.

Product Information

Standard Information

• Brand: CopeLand Comfort Control
• MPN: 36G22-254

Technical Specifications

• Size: 1/2 Inch
• Pressure Regulator: 0.5 psi
• Temperature Range: -40°F to 175°F
• Maximum Regulatory Capacity: 140000 BtuH
• Weight: 1.35 lbs
• Type of Gas: Natural
• Voltage: 24V
• Inlet/Outlet Size: 1/2
