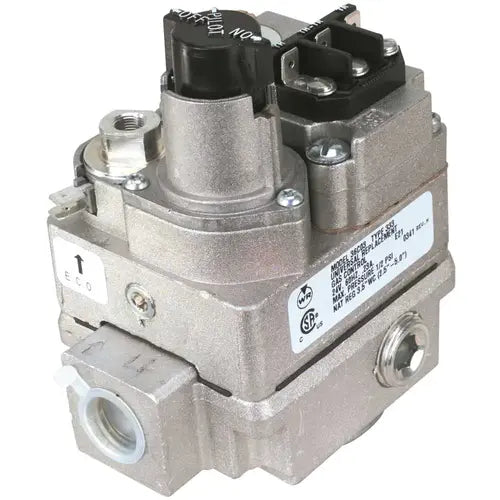

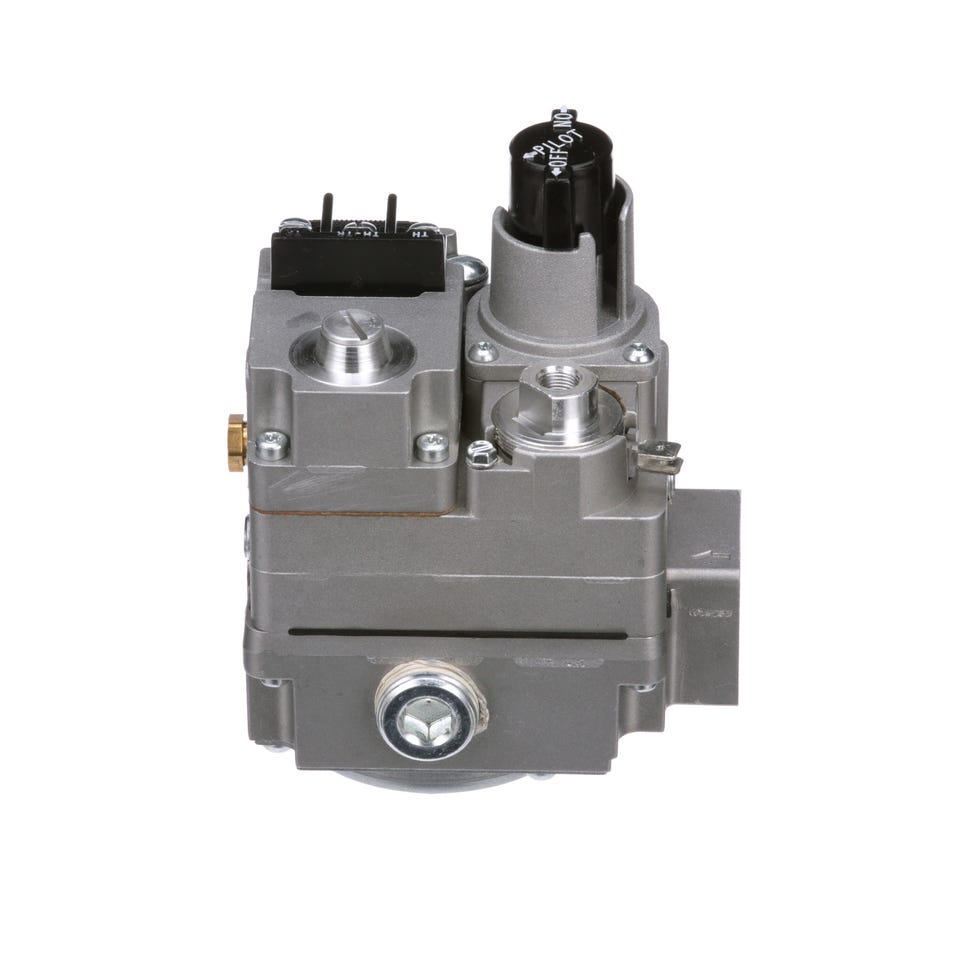

Copeland Comfort Control 36C03-333 Gas Valve - 24V, 1/2 x 3/4 in, with LP Conversion Kit

Product Description

The Copeland Comfort Control 36C03-333 is an efficient gas valve designed for use in HVAC systems. This valve operates on a twenty-four volt coil and is engineered to be compatible with both natural gas and LP gas. An LP conversion kit is included to facilitate this compatibility. The product features a half inch outlet and a three-quarter inch inlet size, allowing for versatile connections. Reducer bushings are provided to support different piping sizes, including three-quarter inch to half inch and half inch to three-eighth inch. The valve is made with side outlets that can be tapped and plugged, enabling straight-through flow. Additionally, it has a Thermocouple Actuated Line Interrupter and ECO terminals for enhanced functionality. This valve is suitable for both residential and commercial applications.

• Operates on a 24-Volt coil and accommodates both natural gas and LP gas with the included conversion kit.
• Features a half inch outlet and three-quarter inch inlet, with reducer bushings included for versatile piping connections.
• Designed with side outlets, a straight-through flow configuration, and a Thermocouple Actuated Line Interrupter.

Product Highlights

The Copeland Comfort Control 36C03-333 is a valuable component for HVAC systems, offering reliability and flexibility for various gas types.

Product Information

Standard Information

• Brand: Copeland Comfort Control (White Rodgers)
• Warranty: 1 Year

Technical Specifications

• Fuel Type: Natural gas
• Inlet Size: 0.75 inches
• Outlet Size: 0.50 inches
• Coil Voltage: 24 Volt
• BTU Heat Rating: 280000
• Product Width: 4 inches
• Product Height: 5 inches
• Product Depth: 6.5 inches
