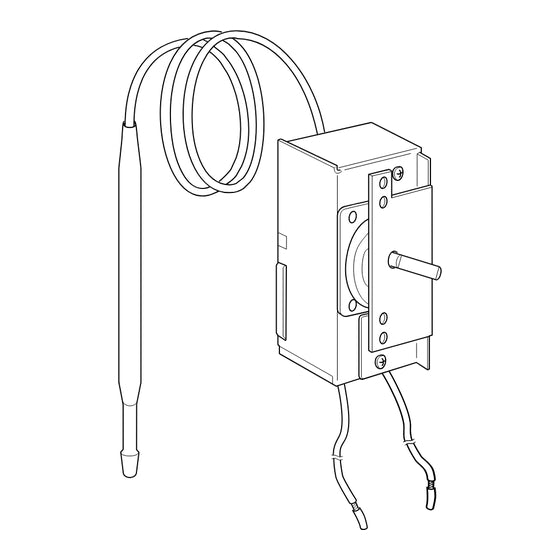

Copeland Comfort Control 2B61-186 Type 2B61 Remote Bulb Thermostat

Product Description

The Copeland Comfort Control 2B61-186 Type 2B61 Remote Bulb Thermostat is intended for use in heating systems, particularly those that use electric heating. It features a snap-action mechanism and works well with both inductive and non-inductive loads.

• Switch contacts open on temperature rise, turning off heat.
• Maximum ambient temperature rating of one hundred fifty degrees Fahrenheit.
• Compact design with a single pole contact structure.

Product Highlights

This thermostat operates efficiently in electric heating applications and is reliable for controlling temperature.

Product Information

Standard Information

• Switch Action: Open on rise, snap-action
• Contact Structure: Single Pole

Technical Specifications

• Maximum Ambient Temperature: 150°F (66°C)
• Electrical Rating 120V Non-Inductive: 25A
• Electrical Rating 240V Non-Inductive: 25A
• Electrical Rating 120V Inductive: 10A
• Electrical Rating 240V Inductive: 6A
• Electrical Rating 120V Full Load: 60A
• Electrical Rating 240V Full Load: 36A
• Electrical Rating 120V Locked Rotor: 60A
• Electrical Rating 240V Locked Rotor: 36A
