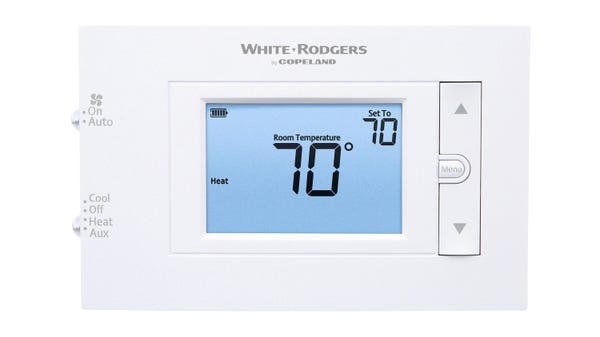

Copeland Comfort Control 1F81-261 Programmable Electronic Digital Multi-Stage Thermostat

Product Description

The Copeland Comfort Control 1F81-261 is a programmable electronic digital thermostat suitable for multi-stage heating and cooling systems in residential and light commercial spaces. This device employs microcomputer technology for accurate time and temperature regulation. It enables users to create customized schedules for heating and cooling to suit their preferences.

• Separate programming for weekdays and weekends.
• Stores simultaneous heat and cool programs.
• Large LCD display with backlight for visibility.

Product Highlights

This thermostat includes features for significant energy savings and temperature control, making it ideal for various settings.

Product Information

Standard Information

• Country of Origin: CHN
• UPC: 786710103575

Technical Specifications

• Electrical Rating: 20 to 30 VAC 50/60 Hz or D.C.
• Load per Terminal: 0.05 to 1.5 Amps
• Maximum Total Load: 1.5 Amps (All terminals combined)
• Setpoint Temperature Range: 45°F to 90°F (7°C to 32°C)
• Operating Ambient Temperature Range: 32°F to 105°F
• Operating Humidity Range: 0 to 90% RH (non-condensing)
• Stages: 2 Heat/2 Cool
• Programmability: 5-1-1 Day Programmable
• Voltage: Low Voltage
• Amperage: 0.05-1.5
• Wattage: 0.9 to 45
• Terminal Designations: R,C,G,Y,Y2,W,W2
