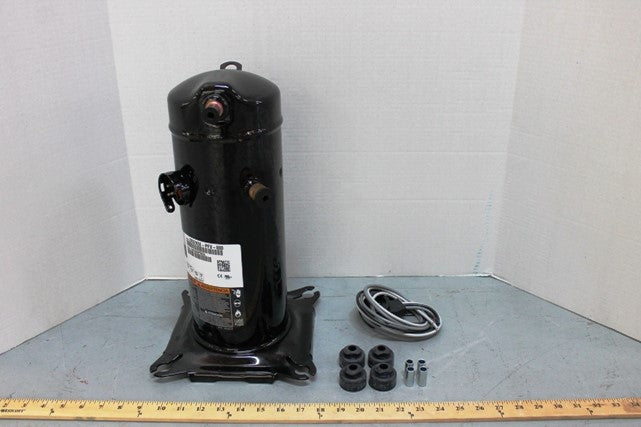

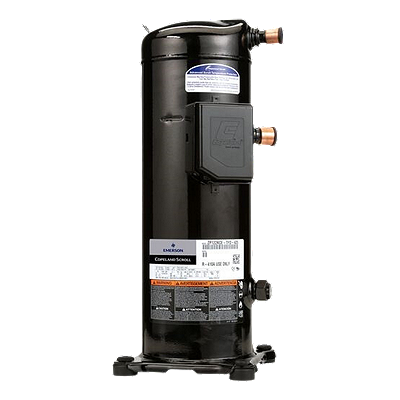

Copeland COM11166 ZR32K5E-PFV-800 2.7 Ton (3/4 in Suction / 1/2 in Discharge) ZR32K5EPFV800

Product Description

Copeland COM11166 is a scroll compressor (model ZR32K5E-PFV-800) for single-phase 200–230 V HVAC systems using R-22 or R-407C refrigerants. It uses POE (polyolester) oil with a 0.56 L recharge and runs at about 3,500 RPM to provide roughly 31,300–42,200 Btu/h cooling capacity (approximately 2.7 tons). Electrical connection is via a molded plug; suction and discharge connections are 3/4 in OD and 1/2 in OD. Mounting dimensions are 9.50 x 9.50 in with a 15.9 in mounting height suitable for residential and light commercial replacement applications.

• Single-phase scroll compressor, input voltage 200–230 V, speed 3,500 RPM, ~2.7 ton (31,300–42,200 Btu/h) capacity
• Compatible with R-22 and R-407C refrigerants; uses POE oil (0.56 L recharge)
• 3/4 in OD suction and 1/2 in OD discharge connections; molded plug electrical connection; meets CSA and UL

Product Highlights

Scroll compressor for single-phase 200–230 V HVAC systems, 2.7 ton cooling, POE oil 0.56 L, 3/4 in suction and 1/2 in discharge, CSA and UL certified.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: COM11166

Technical Specifications

• Brand: Copeland
• MPN: COM11166
• Model: ZR32K5E-PFV-800
• Product Type: Scroll compressor
• Input Voltage: 200-230 V
• Frequency: 50/60 Hz
• Phase: Single-phase
• Speed (RPM): 3,500
• Horsepower: 2-3/4 HP
• Cooling Capacity (Btu/h): 31,300 to 42,200
• Refrigeration Capacity (Ton): 2.7
• Refrigerant Type: R-22, R-407C
• Oil Type: POE (polyolester) oil
• Oil Recharge: 0.56 L
• Suction Line Size (OD): 3/4 in
• Discharge Connection Size (OD): 1/2 in
• Electrical Connection: Molded plug
• Mounting Dimensions (L x W in): 9.50 x 9.50
• Mounting Height (in): 15.9
• Dimensions (L x W x H in): 15 x 13 x 20.5
• Weight (lbs): 55
• Certifications: CSA, UL
• Compatible Brands / Typical Fits: Trane, American Standard, Goodman, Janitrol, Rheem, Ruud, Carrier, York, Coleman
