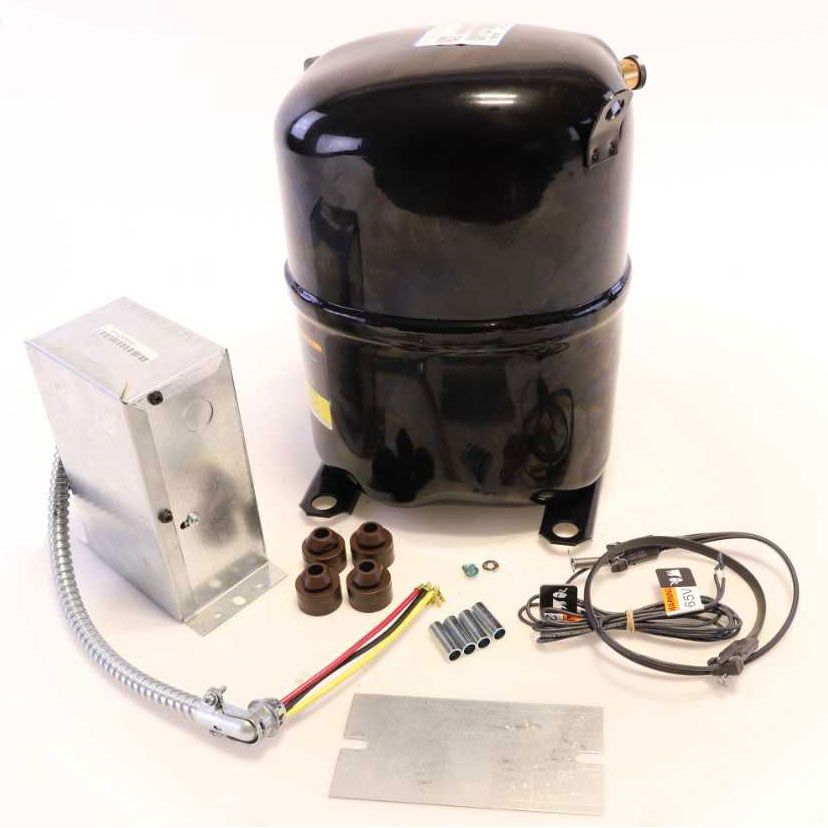

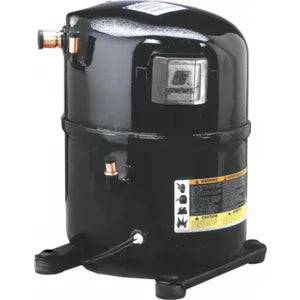

Copeland CF09K6E-PFV-945 Compressor 1PH R404A 230V

Product Description

The Copeland CF09K6E-PFV-945 compressor is designed for use in refrigeration applications. This compressor operates on a voltage of 208-230 volts and is rated at 9800 BTU for effective cooling. It is suitable for both air conditioning and heat pump systems, providing reliable performance in low-temperature environments.

• Refrigerant Type: R-404A or R-507
• Compressor Size: 1/2 inch discharge line and 3/4 inch suction line
• Mounting Dimensions: 7.5 inches by 7.5 inches

Product Highlights

Designed for robust refrigeration applications, the Copeland CF09K6E-PFV-945 delivers consistent cooling performance. It features advanced technology to ensure durability and quiet operation, making it an ideal choice for commercial settings.

Product Information

Standard Information

• Brand: Copeland
• MPN: CF09K6E-PFV-945

Technical Specifications

• Voltage: 208-230/1/60
• Capacity: 9800 BTU
• Weight: 69 lbs
• Phase: Single
• Frequency: 60 Hz
• Liquid Line Size: 1/2 inch
• Suction Line Size: 3/4 inch
• Mounting Dimensions: 7.5 x 7.5 inches
• Refrigerant: R-404A or R-507
