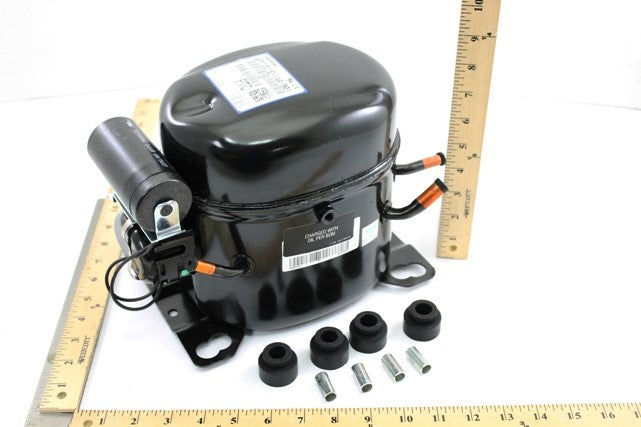

Copeland AFT12C1-IAA-901 Hermetic Reciprocating Compressor

Product Description

The Copeland AFT12C1-IAA-901 is a hermetic reciprocating compressor ideal for both residential and commercial settings. This unit works with various refrigerants including R-12, R-134a, and R-404A/507. It features a stub discharge connection and a stub suction line fitting, making it versatile for multiple applications.

• Compatible with R-12, R-134a, R-404A/507 refrigerants.
• Achieves optimal performance for low-temperature applications.
• Mounting dimensions aid in easy installation.

Product Highlights

The Copeland AFT12C1-IAA-901 is designed for reliability and efficiency in cooling systems.

Product Information

Standard Information

• Brand: Copeland
• Manufacturer Part Number: AFT12C1IAA901

Technical Specifications

• Compressor Type: Reciprocating
• Horsepower: 1/3
• Voltage: 115 VAC
• Phase: Single
• Cycle/Hertz: 60 Hz
• Refrigerant: R12
• Application: Low Temp
• BTU Output: 1,190-3,150
• Oil Type: Mineral (MO) or Polyolester (POE)
• Oil Charge Initial (oz.): 20 Oz.
• Suction Line Size (OD): 3/8
• Discharge Connection Size (OD): 1/4
• Weight: 32.85
• Height: 10.8
• Length: 13.5
• Width: 9
• Rated Load Amps: 5.0
• Locked Rotor Amps (LRA): 30
• Mounting Dimensions: 8 x 4.8 x 8.6
• Connection Type: Sweat
• Connection Suction (In.): 3/8 S
• Connection Discharge (In.): 1/4 S
• Shipping Weight (Lbs.): 27.00
