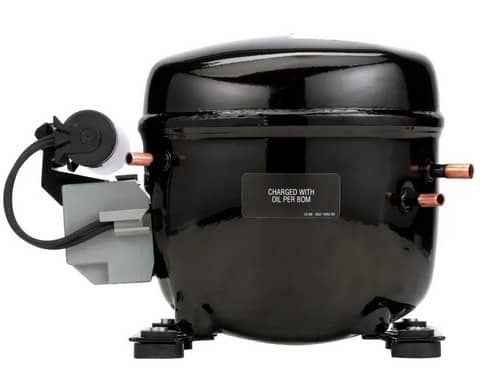

Copeland AFF12C1U-IAA-901 Hermetic Refrigeration Compressor

Product Description

The Copeland AFF12C1U-IAA-901 is a hermetic refrigeration compressor suitable for low-temperature applications. It uses R290 refrigerant and requires AlkylBenzene oil for efficient operation. This compressor operates at 115 volts and 60 hertz, ensuring compatibility with standard systems.

• Low-temperature application
• Discharge connection size is one fourth inch
• Suction connection size is five sixteenths inch

Product Highlights

This compressor is designed for reliable performance in refrigeration systems.

Product Information

Standard Information

• Brand: Copeland
• MPN: AFF12C1U-IAA-901

Technical Specifications

• Application: Low Temp
• Refrigerant: R290
• Horsepower: 1/3
• Voltage: 115
• Frequency: 60Hz
• Phase: 1Ph
• Oil Type: AlkylBenzene for R290
• Oil Recharge: 7 Oz.
• Rated Load Amps: 8.5
• Discharge Connection: 1/4 S
• Suction Connection: 5/16 S
• Mount: 6.5 x 4 In.
• Length: 11.20 In.
• Width: 6.80 In.
• Height: 7.90 In.
• Capacity BTU/HR: 1425
• EER BTU/WH: 4.6
