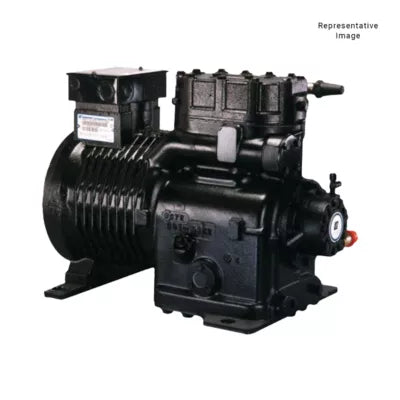

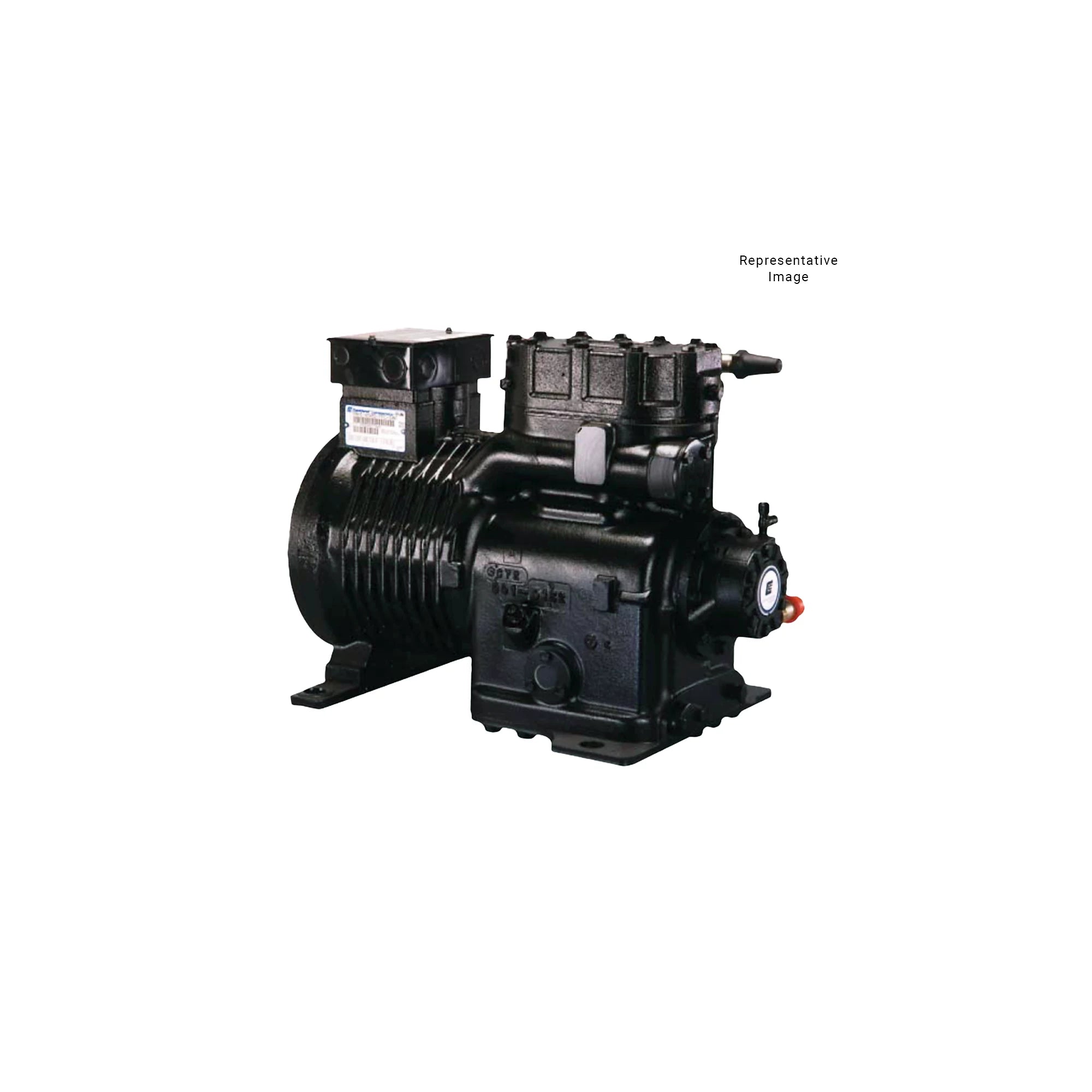

Copeland 9RJ1-076A-TFD-800 Semi-Hermetic Compressor 460V 3PH 60Hz Alkylbenzene Oil

Product Description

The Copeland 9RJ1-076A-TFD-800 Semi-Hermetic Compressor offers robust performance and reliability for refrigeration and air conditioning applications. Featuring advanced Copelametic technology, this compressor is suitable for heavy-duty commercial use.

• Supports a wide horsepower range from quarter horsepower to forty horsepower.
• Equipped with a new Sentronic compatible oil pump for enhanced lubrication.
• Features internal inherent protection, suitable for both single and three-phase setups.

Product Highlights

This versatile compressor is available in air-cooled, water-cooled, and refrigerant-cooled models, ensuring there is a solution for nearly any system configuration. Its compact size coupled with its sturdy design makes it an excellent choice for tough, continuous operations.

Product Information

Standard Information

• Brand: Copeland
• MPN: 9RJ1-076A-TFD-800
• Oil Type: Alkylbenzene (AB)

Technical Specifications

• Motor HP: 7 1/2 HP
• Voltage: 460 VAC
• Refrigerant: R-22
• BTU Output: 41,500 - 64,000
• Weight: 294 pounds
• Dimensions: 19 inches length x 31.5 inches width x 29 inches height
