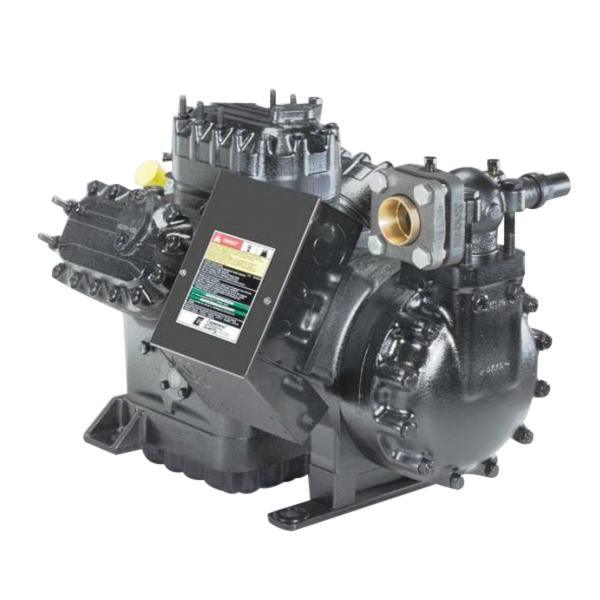

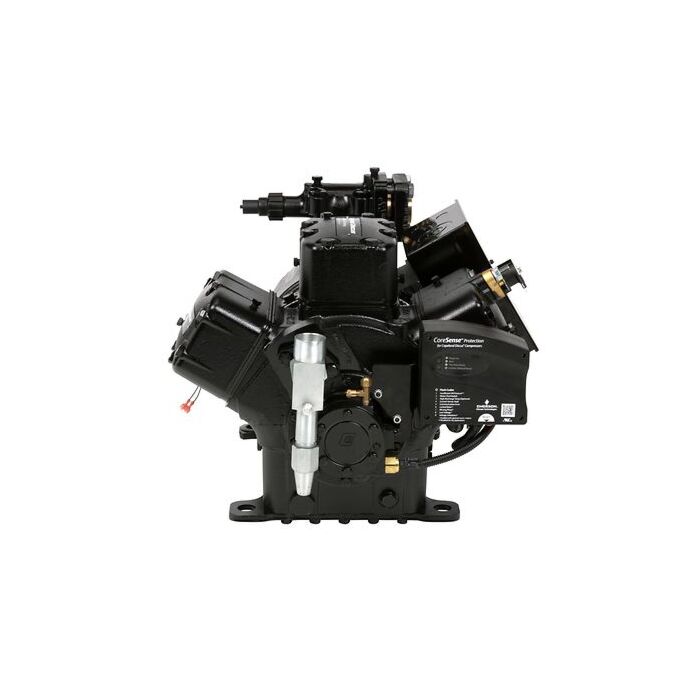

Copeland 6DT3F11ME-TSK-800 Aftermarket Semi-Hermetic Compressor 78,000 BTU (208-230/460 VAC 3-Phase 60 Hz)

Product Description

The Copeland 6DT3F11ME-TSK-800 is a semi-hermetic Discus reciprocating compressor for commercial refrigeration. It delivers 78,000 BTU and operates on 208–230/460 VAC three-phase, 60 Hz power. The unit includes CoreSense onboard electronics for protection and diagnostics, Discus Digital capacity modulation (10–100%), and is compatible with mineral or polyolester (POE) oils. It is rated for use with R-22 refrigerant and includes internal thermal overload protection.

• 78,000 BTU output; semi-hermetic Discus reciprocating compressor for commercial refrigeration.
• Electrical: 208–230/460 VAC, three-phase, 60 Hz; Rated Load Amps (RLA) 75.7; Minimum Circuit Ampacity (MCA) 95.6; Locked Rotor Amps (LRA) 470.
• CoreSense onboard electronics and Discus Digital modulation (10–100%); compatible with mineral and POE oils; initial oil charge 255 oz.

Product Highlights

Semi-hermetic Discus compressor with CoreSense protection and 10–100% modulation; 78,000 BTU; 208–230/460 VAC three-phase.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: 6DT3F11ME-TSK-800
• Country of Origin: USA

Technical Specifications

• Brand: Copeland
• MPN: 6DT3F11ME-TSK-800
• Product Type: Semi-Hermetic Discus reciprocating compressor
• BTU Output: 78,000 BTU/hr
• Horsepower: 30 HP
• Voltage: 208-230/460 VAC
• Phase: Three
• Cycle/Hertz: 60 Hz
• Refrigerant: R-22
• Oil Type: Mineral (MO), Polyolester (POE)
• Displacement: 89 cu-in/rev
• Number of Cylinders: 6
• Bore: 2.94 in
• Stroke: 2.19 in
• Rated Load Amps (RLA): 75.7
• Locked Rotor Amps (LRA): 470
• Amps: 55.5-64.8
• Minimum Circuit Ampacity (MCA): 95.6
• Mass Flow: 715 lbs/hr; 1250 lbs/hr
• Suction Line Size (OD): 2 1/8 in
• Discharge Connection Type: Sweat or Braze
• Suction Line Fitting Type: Sweat or Braze
• Oil Charge Initial (oz): 255
• Overload Type: Internal
• Protection: CoreSense onboard electronics; internal thermal protection
• Dimensions (L x W x H): 27.5 in x 33.5 in x 32 in
• Mounting Dimensions: 15 in x 12 in x 29.19 in
• Weight: 602 lb
• Country of Origin: USA
• Prop 65: Yes
• UL Listed: No
• Return Gas Temperature: 65 F (18.33 C)
• Evaporating Temperature: -25 F (-31.67 C)
• OPT Code: 6DT3F11METSK800
