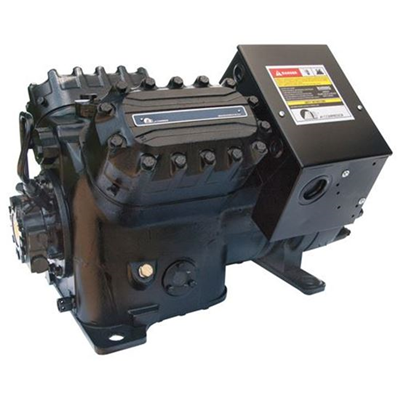

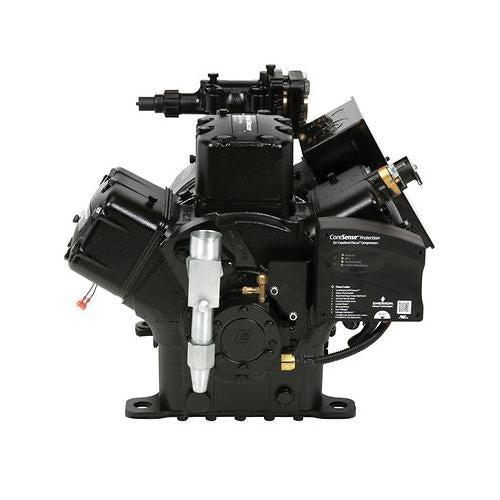

Copeland 4DRNR28ME-TSK-800 Semi-Hermetic Compressor 30 HP (EA) 4DRNR28ME-TSK-800

Product Description

Copeland 4DRNR28ME-TSK-800 is a semi-hermetic refrigeration compressor rated at approximately 280,000 Btu and nominally 30 HP. The unit supports three-phase operation across 200/208-230/400/460 VAC at 50/60 Hz, is charged for R-404A, and accepts POE (polyolester) or mineral oil. It includes internal thermal protectors, UL listing, specified suction/discharge connections, and mounting dimensions for installation.

• Three-phase 200/208-230/400/460 VAC, 50/60 Hz; nominal 30 HP, ~280,000 Btu output
• Compatible with POE or mineral oil; charged for R-404A; suction 2-1/8 in OD, discharge 1-3/8 in
• Internal thermal protectors and UL listed; operating current 36.2–44.1 A, RLA 47, LRA 235

Product Highlights

30 HP semi-hermetic refrigeration compressor; three-phase 200/208-230/400/460 VAC; POE/mineral oil; charged for R-404A; internal thermal protectors; UL listed

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: 4DRNR28ME-TSK-800

Technical Specifications

• Brand: Copeland
• MPN: 4DRNR28ME-TSK-800
• Model: 4DRNR28ME-TSK-800
• Compressor Type: Semi-hermetic
• Horsepower: 30 hp
• BTU Output: 280000 Btu
• Voltage: 200/208-230/400/460 VAC
• Phase: Three-phase
• Frequency: 50/60 Hz
• Refrigerant: R-404A
• Compatible Refrigerants: R-22, R-404A, R-407A, R-407C, R-407F, R-448A, R-449A, R-507
• Oil Type: POE (Polyolester) or Mineral
• Operating Current (Amps): 36.2-44.1 A
• Rated Load Amps (RLA): 47
• Locked Rotor Amps (LRA): 235
• Mass Flow: 4660 lbs./hr. and 4100 lbs./hr.
• Mounting Dimensions: 15 x 12 x 19.25 in
• Dimensions (W x H x L): 37 in x 29 in x 29 in
• Weight: 517 lb
• Suction Line Size (OD): 2 1/8 in
• Discharge Connection Size: 1 3/8 in
• Suction Line Fitting Type: Sweat or Braze
• Initial Oil Charge: 115 oz
• Protection: Internal thermal protectors
• UL Listed: Yes
