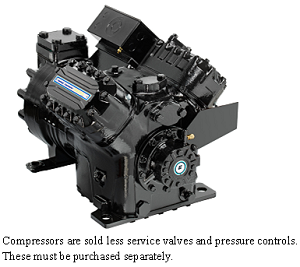

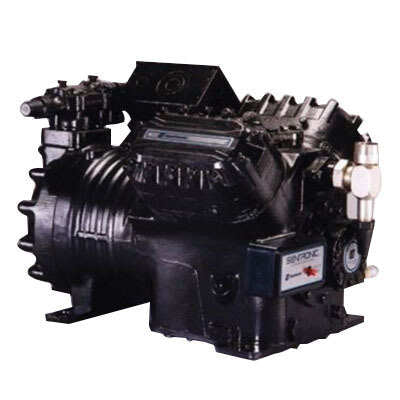

Copeland 4DL3F63KE-TSK-800 Discus Semi-Hermetic Compressors 15 HP 208/230/460-3-60

Product Description

The Copeland 4DL3F63KE-TSK-800 Discus Semi-Hermetic Compressor is designed for commercial refrigeration applications. It operates at 15 horsepower and supports multiple refrigerants including R-22, R-404A, and R-502. This compressor has a high capacity for low-temperature systems, with ratings for various refrigerant types.

• Comes with oil, protector, and a complete gasket set.
• Designed for easy installation with shipped components excluding starting parts, service valves, and mounting parts.
• Features low-temperature refrigeration ratings, capable of handling various refrigerants efficiently.

Product Highlights

This compressor is ideal for low condensing refrigeration conditions and can provide high efficiency in diverse environments.

Product Information

Standard Information

• Brand: Copeland
• Product Type: Semi-Hermetic Compressor

Technical Specifications

• Horsepower: 15 HP
• Voltage: 208/230/460V
• Phase: Three
• Frequency: 60Hz
• Liquid Line Size: 1-3/8 inches
• Suction Line Size: 1-5/8 inches
• Mounting Dimensions: 15 x 12 inches
• Size: 27.03 x 20.50 x 23.00 inches
• Refrigerant: Multiple options available
• Body Type: 4D
