Copeland 3DF3F40KE-TFC-800 Semi-Hermetic Compressor 9 HP 208/230/3 POE Oil R404A, R22, R134A

Product Description

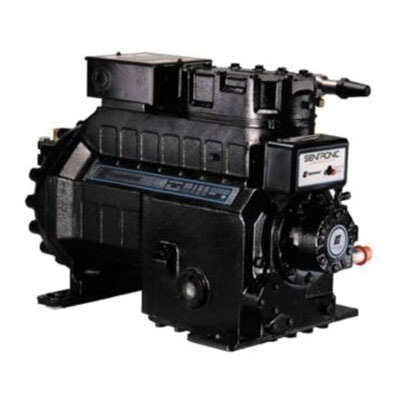

Copeland 3DF3F40KE-TFC-800 is a semi-hermetic compressor designed for commercial refrigeration applications. This compressor operates on a voltage of 208/230 volts and is rated at 9 horsepower, making it suitable for various refrigeration needs.

• Includes oil, protector, and gasket set
• Designed for high temperature and low temperature refrigeration conditions

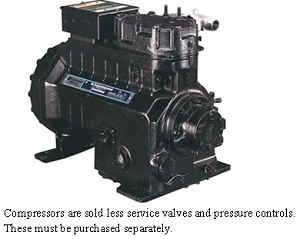

• Shipped without starting components, service valves, and mounting parts

Product Highlights

This compressor is ideal for use with multiple refrigerants including R-404A, R-22, and R-134A.

Product Information

Standard Information

• Brand: Copeland
• MPN: 3DF3F40KE-TFC-800

Technical Specifications

• Application: Refrigeration
• Body Type: 3D
• Voltage: 208/230V
• Phase: Three
• Frequency: 60Hz
• Liquid Line Size: 1-1/8 inches
• Suction Line Size: 1-3/8 inches
• Mounting Dimensions: 15 x 12 inches
• Size: 27.30 x 14.92 x 19.18 inches
• Weight: 37 lbs
• Refrigerant: Multiple
• Series-Brand: Discus
